Description
Scotsman C0630MR-32/ID200B-1/KBT44 Description

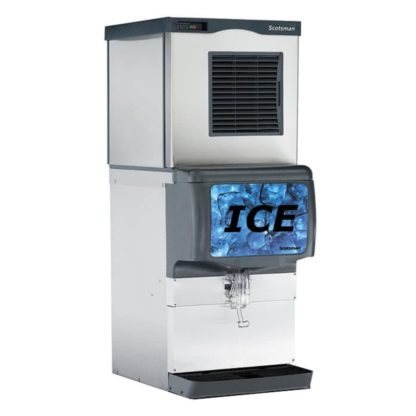

The Scotsman C0630MR-32/ID200B-1/KBT44 Prodigy Plus ice machine with countertop dispenser makes full-cube ice that is great for drinks. Each day the unit can make 614 pounds of ice, though this amount is affected by ambient conditions. Operators can check the status and diagnostics with indicator lights and a smart module. A one-touch cleaning feature speeds up the cleaning process, while antimicrobial protection reduces bacteria growth between cleanings. Harvest Assist efficiently moves ice from the maker to the dispenser, and it has a 200-pound storage capacity. An insulated drip tray catches drips.
Ice Maker Details
- 614-lb. ice production capacity
- 540-lb. AHRI-certified ice production capacity
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- Smart-Board diagnostic feedback module
- AutoAlert indicator lights shine to show operating status
- Scannable QR code provides service and warranty information
- 1-touch cleaning
- Antimicrobial protection helps reduce bacteria growth
- WaterSense purge control removes scale
- Self-aligning front panel provides component access
- Harvest Assist technology keeps ice moving efficiently to the dispenser
- Part of the Prodigy Plus series
- R404A refrigerant
- 12,700 BTU
- ERC311-32 condensing unit is sold separately
- Required ambient air temperature: 50-100 degrees F
- Required incoming water temperature: 40-100 degrees F
- Required incoming water pressure: 20-80 PSIG
Dispenser Details
- 200-lb. storage capacity
- Off-cycle agitation adjusts for different ambient conditions
- Heavy-duty agitator reduces jamming and bridging
- Agitator motor supports heavy use
- Durable, insulated drip tray helps prevent condensation
- Front-accessible parts
- KBT44 adapter kit connects machine head to the bin
Dimensions & Utilities
- Ice Maker
- 30.7 in. W x 24 in. D x 23.01 in. H
- 10.8 A, 5.35 kW
- 208-230 V/60 Hz/1 ph
- Dispenser
- 30.25 in. W x 30.6875 in. D x 35.6275 in. H
- 115 V/60 Hz/1 ph
From The Manufacturer
C0630MR-32: Prodigy Plus Ice Maker, cube style, air-cooled, no condenser (remote), production capacity up to 614 lb/24 hours at 70°/50° (540 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 208-230v/60/1-ph, 10.8 amps, cULus, NSF, CE, ENERGY STAR
Ice Dispenser, counter model, 200 lb capacity, designed for cube-type ice, stainless steel exterior, cup activated, 115v/60/1-ph, NSF, cULus
KBT44: Bin Top, for use with 30″ cubers, flakers & nugget makers on ID200, ID250 dispensers
*Image may not depict product color, inclusions or accessories.
