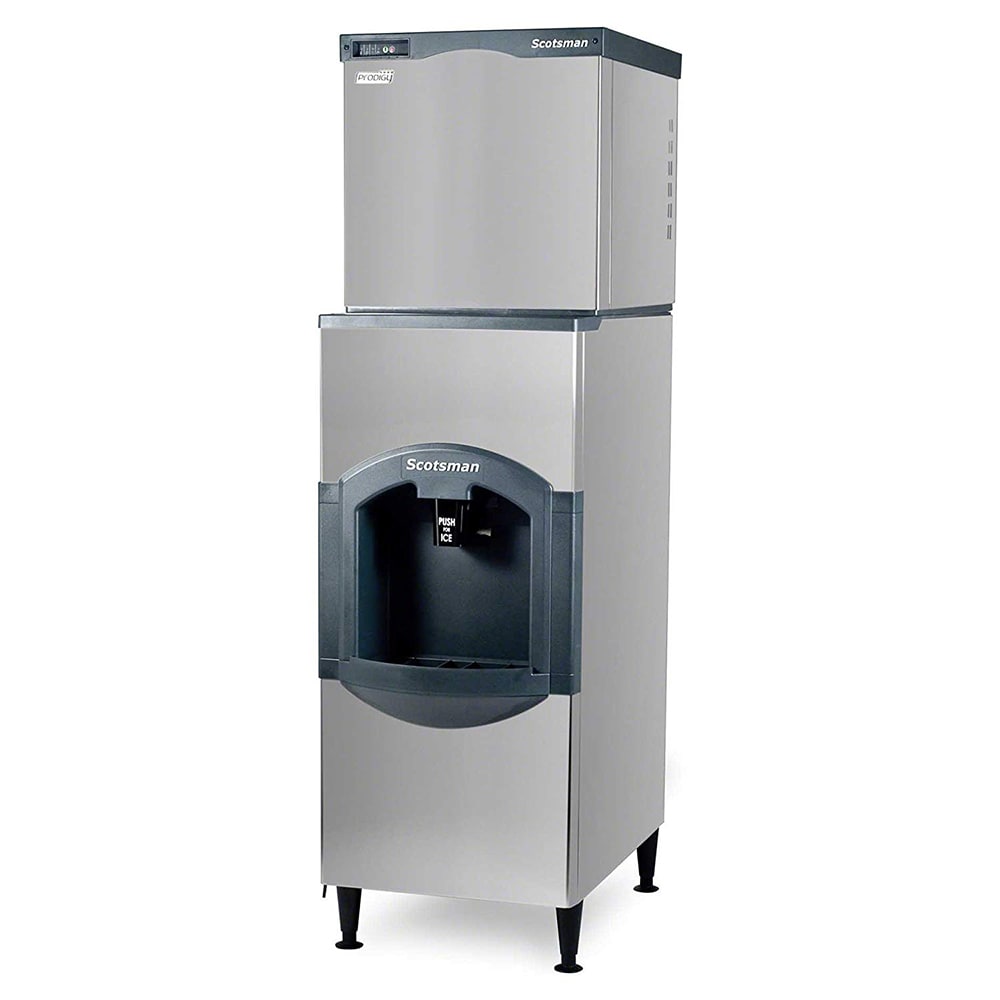

Scotsman C0630MR-32/HD30B-1 Description
The front panel on the Scotsman C0630MR-32/HD30B-1 ice maker with dispenser gives users access to key components, as well as lights that indicate the unit’s operating status. When the ambient air and water temperatures are at an ideal level, it can produce 614 pounds of ice in one day, and if the levels are off, the unit produces as much as 540 pounds. Of this amount, 180 pounds can be stored in the dispenser for use as soon as it’s needed.
This Scotsman C0630MR-32/HD30B-1 ice machine with dispenser has a push button that releases ice through a chute. It can be used to fill buckets to transport ice in a banquet hall, kitchen, or hotel. To prevent melting ice, the dispenser is insulated with polyurethane, and the unit’s WaterSense adjustable purge controls provide clean ice. AgION antimicrobial coats the unit to inhibit germ growth.
Ice Maker Details
- Part of the Prodigy Plus series
- 614-lb. maximum daily ice production
- 540-lb. AHRI-certified daily ice production
- Makes medium cube-style ice
- Cube size: 7/8 in. x 7/8 in. x 7/8 in.
- Remote condenser
- Air-cooled operation
- Self-aligning front panel with key components
- AutoAlert indictor lights provide status updates
- Uses R-404A refrigerant
- Provides clean ice with WaterSense adjustable purge controls
- 1-touch cleaning reduces maintenance needs
- Ice pushed into the dispenser using harvest assist
- Important information displayed by scanning the QR code
- Stainless steel finish provides durability
- AgION antimicrobial prevents quick germ growth
- Air filter can be removed to facilitate cleaning
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- 12,700 BTU
Ice Dispenser Details
- Part of the iceValet series
- 180-lb. application capacity
- Useful for filling hotel ice buckets
- Polyurethane insulation prevents ice from melting
- Unit-specific QR code can be scanned to provide information
- Push chute dispenses ice
- Removable top panel provides cleaning access
- Metallic finish is corrosion resistant
- Sits on 6-in. legs
Dimensions & Utilities
- Ice machine: 30 in. W x 24 in. D x 23 in. H
- 10.8 A, 5.35 kW
- 208-230 V/60 Hz/1 ph
- Dispenser: 30 in. W x 33.5 in. D x 53.25 in. H
- 2.1 A
- 115 V/60 Hz/1 ph, 11-ft. cord with a NEMA 5-15P plug
From The Manufacturer
Prodigy Plus Ice Maker with Ice Dispenser, cube style, air-cooled, no condenser (remote), production capacity up to 614 lb/24 hours at 70°/50° (540 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 208-230v/60/1-ph, 10.8 amps, cULus, NSF, CE, ENERGY STAR, Ice Dispenser: floor model, push dispensing, 180 lb storage capacity, designed for 30″ wide top mount cube-type ice makers, stainless front & sides, includes 6″ legs, 115v/60/1-ph, 2.1 amps, NSF, cULus
*Image may not depict product color, inclusions or accessories.
