Scotsman C0630MA-32/HD30B-1 Description

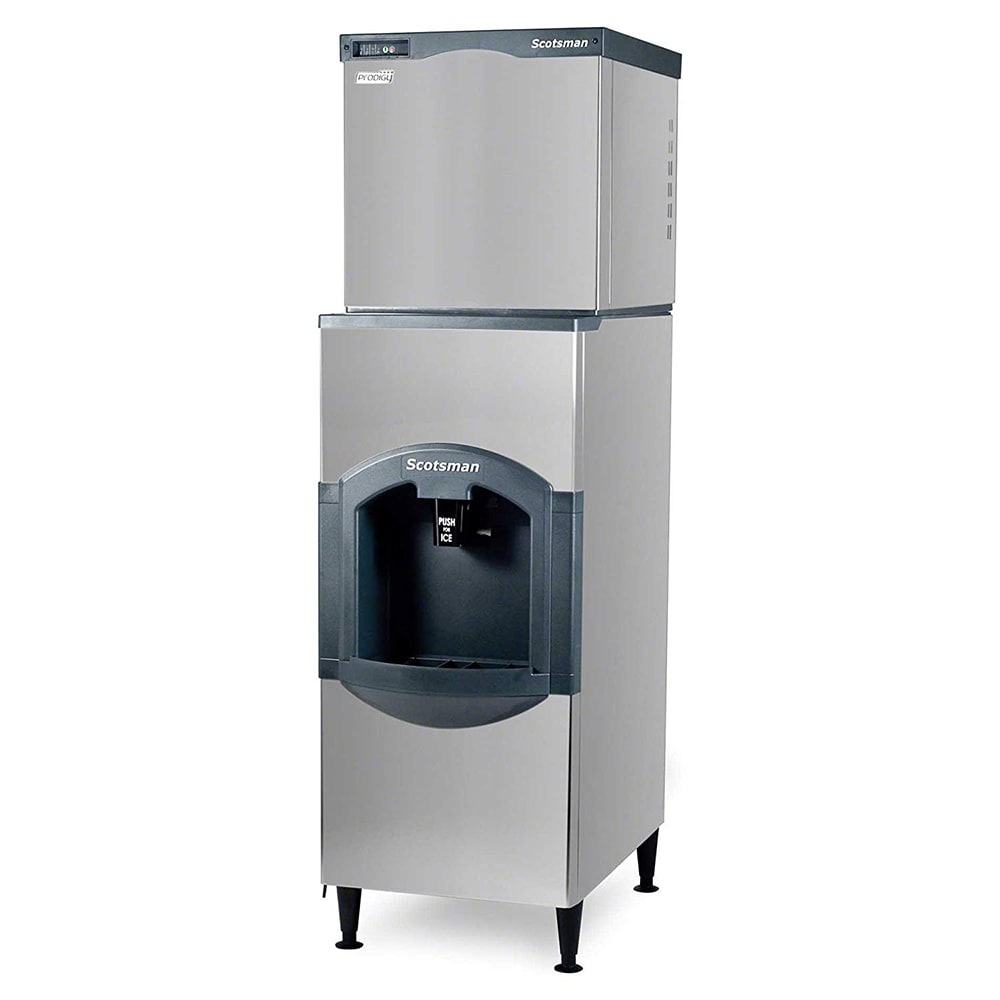

The Scotsman C0630MA-32/HD30B-1 Prodigy Plus ice maker with dispenser has a 640-pound daily production capacity. It makes full-cube ice for serving drinks in restaurants and bars. Indicator lights show the ice machine operating status, a module provides diagnostics, and a scannable QR code gives operators service information. The Scotsman C0630MA-32/HD30B-1 ice maker with dispenser has one-touch cleaning and antimicrobial protection that slows bacteria growth. Made for hotel buckets, the dispenser can hold 180 pounds. Foam insulation slows melting in the dispenser’s storage area by keeping cold air around the ice.
Ice Maker Details
- 640-lb. ice production capacity
- 474-lb. AHRI-certified ice production capacity
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- AutoAlert indicator lights display operating status
- Smart-Board diagnostic module
- Scannable QR code provides service information and warranty history
- 1-touch cleaning
- Antimicrobial protection reduces bacteria growth
- WaterSense purge control protects against scale buildup
- Self-aligning front panel for access to components
- Harvest Assist ensures ice moves efficiently into the dispenser
- Part of the Prodigy Plus series
- Air-cooled condenser
- R404A refrigerant
- 12,700 BTU
- Required ambient air temperature: 50-100 degrees F
- Required incoming water temperature: 40-100 degrees F
- Required incoming water pressure: 20-80 PSIG
Dispenser Details
- 180-lb. storage capacity
- Push chute dispensing action
- Dispensing area accommodates hotel buckets
- Foam insulation retains cold air to slow melting
- Removable top panel provides bin access without removing the ice machine head
- Metallic exterior resists corrosion
Dimensions & Utilities
- Ice Maker
- 30.7 in. W x 24 in. D x 23.01 in. H
- 11 A, 5.63 kW
- 208-230 V/60 Hz/1 ph
- Dispenser
- 30 in. W x 33.5 in. D x 53.25 in. H
- 115 V/60 Hz/1 ph, 11-ft. cord
From The Manufacturer
C0630MA-32 Ice Maker: Prodigy Plus Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 640 lb/24 hours at 70°/50° (474 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 208-230v/60/1-ph, 11.0 amps, cULus, NSF, CE; HD30B-1 Ice Dispenser: IceValet Hotel/Motel Ice Dispenser, floor model, push dispensing, 180 lb storage capacity, designed for 30″ wide top mount cube-type ice makers, stainless front & sides, includes 6″ legs, 115v/60/1-ph, 2.1 amps, NSF, cULus
*Image may not depict product color, inclusions or accessories.
