Description

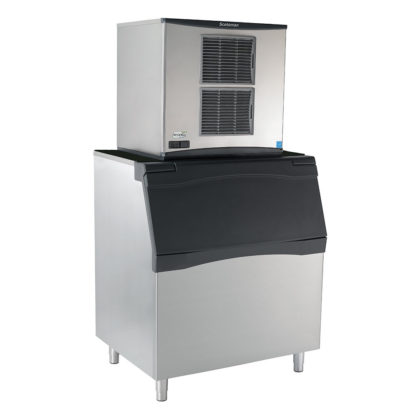

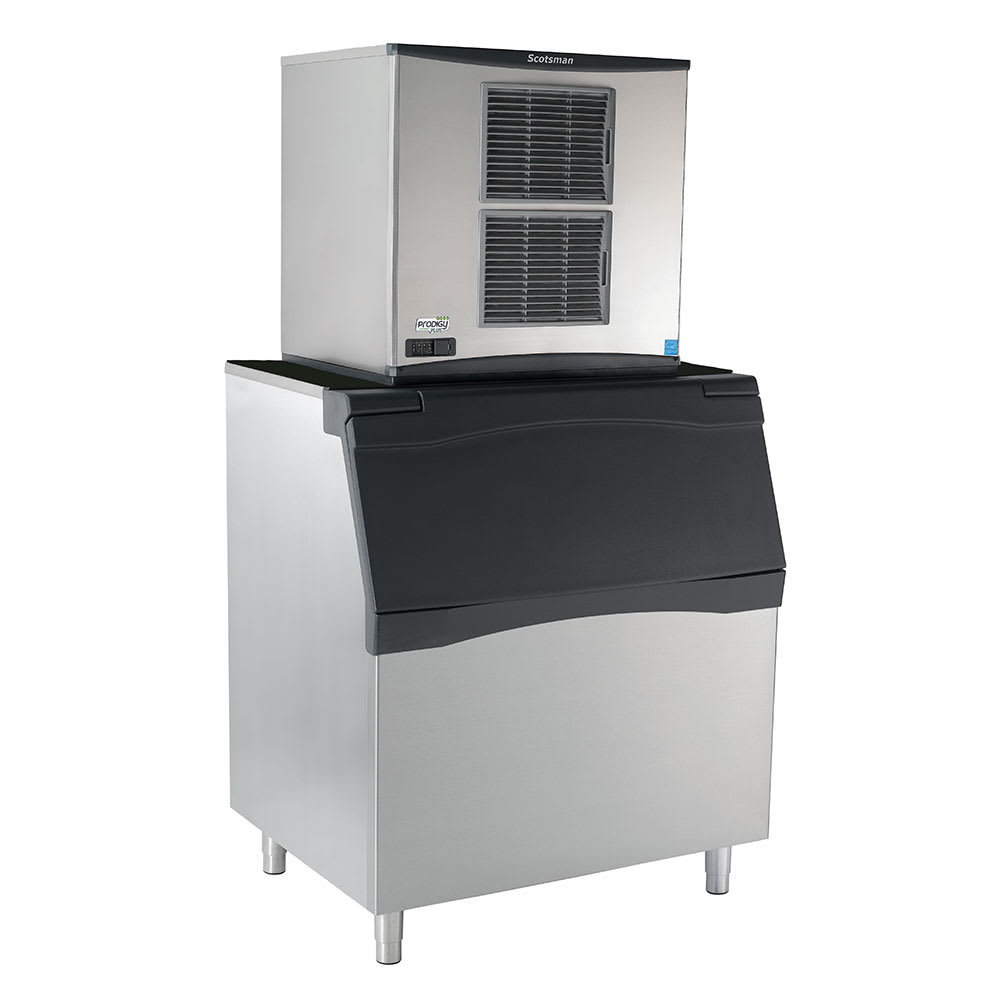

Scotsman C0630MA-32/B842S/KBT29
Producing as much as 640 pounds daily, the Scotsman C0630MA-32/B842S/KBT29 Prodigy Plus ice maker with bin makes full-cube ice. This ice type is ideal for drinks since it melts slowly, and the machine can be operated with indicator lights and a diagnostic panel. Users can also check service and warranty information, and the one-touch cleaning feature works quickly, while an antimicrobial agent slows bacteria growth.
This Scotsman C0630MA-32/B842S/KBT29 ice maker with bin can store 778 pounds. With the spring-loaded door, employees can access ice, and hidden door hinges simplify cleaning by eliminating crevices. Since the bin has a recessed drain fitting, it can be installed in many locations. It has a metallic exterior that is durable for high-volume operations, and an adapter kit is included to attach the ice machine head to the bin.
Ice Maker Details
- 640-lb. ice production capacity
- 474-lb. AHRI-certified ice production capacity
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- Scannable QR code for service and warranty history
- AutoAlert lights indicate operating status
- Smart-Board module includes diagnostic information
- Self-aligning front panel offers component access
- 1-touch cleaning feature
- Antimicrobial agent protects against bacteria
- WaterSense purge control keeps scale off components between cleanings
- Harvest Assist efficiently moves ice to the bin
- Part of the Prodigy Plus series
- Air-cooled condenser
- R404A refrigerant
- 12,700 BTU
- Required ambient air temperature: 50-100 degrees F
- Required incoming water temperature: 40-100 degrees F
- Required incoming water pressure: 20-80 PSIG
Bin Details
- 778-lb. storage capacity
- Spring-loaded door has hidden hinges to ease cleaning
- Baffle can be removed without tools
- Recessed drain fitting provides installation flexibility
- Ice scoop is included
- Built-in scoop holder
- Metallic finish
- Includes KBT29 adapter kit to connect the head to the bin
Dimensions & Utilities
- Ice Maker
- 30.7 in. W x 24 in. D x 23.01 in. H
- 11 A, 5.63 kW
- 208-230 V/60 Hz/1 ph
- Bin
- 42.5 in. W x 34 in. D x 50 in. H
From The Manufacturer
C0630MA-32 Ice Maker: Prodigy Plus Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 640 lb/24 hours at 70°/50° (474 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 208-230v/60/1-ph, 11.0 amps, cULus, NSF, CE; B842S Ice Bin: Ice Bin, top-hinged front-opening door, 778 lb application capacity, for top-mounted ice maker, polyethylene liner, metallic finish exterior, includes 6″ legs, NSF; KBT29 Ice Bin Top: Bin Top Kit, for 30″ modular cubers on B842S, BH801 bin
*Image may not depict product color, inclusions or accessories.
