Description
Scotsman C0630MA-32/B530S

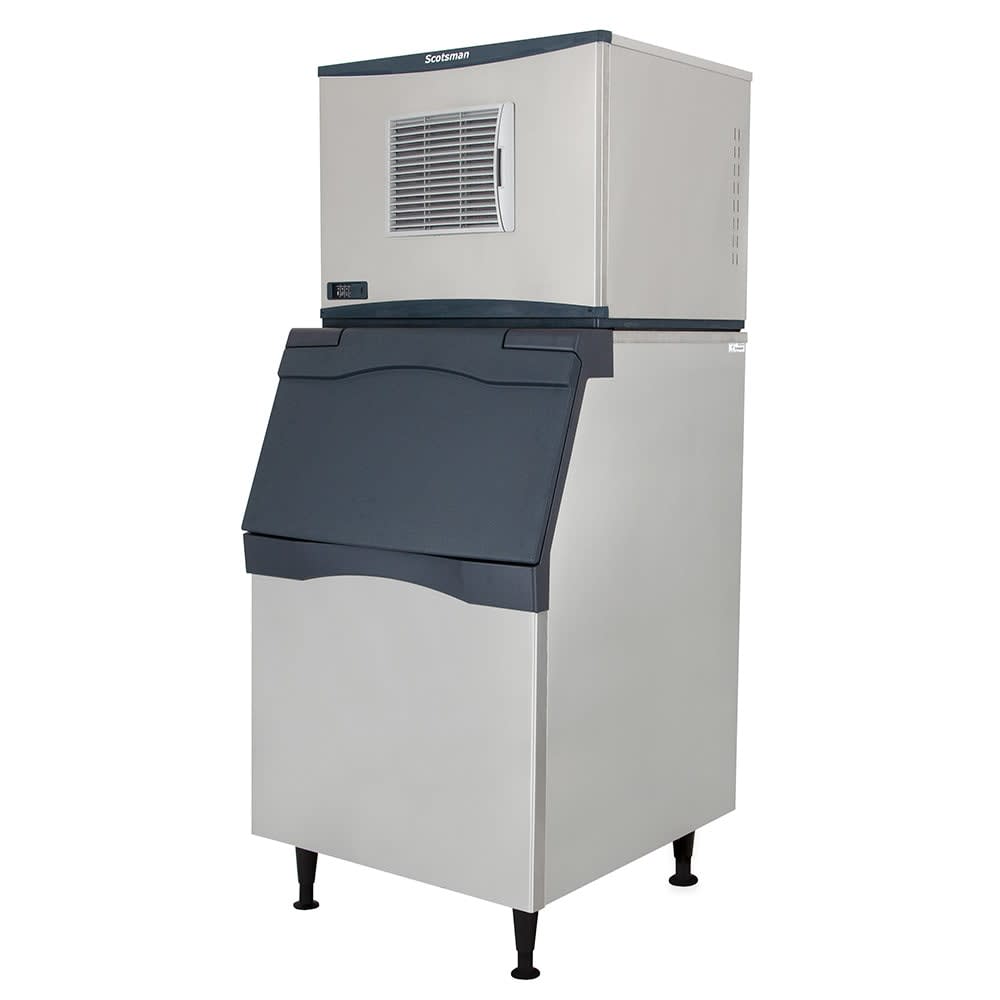

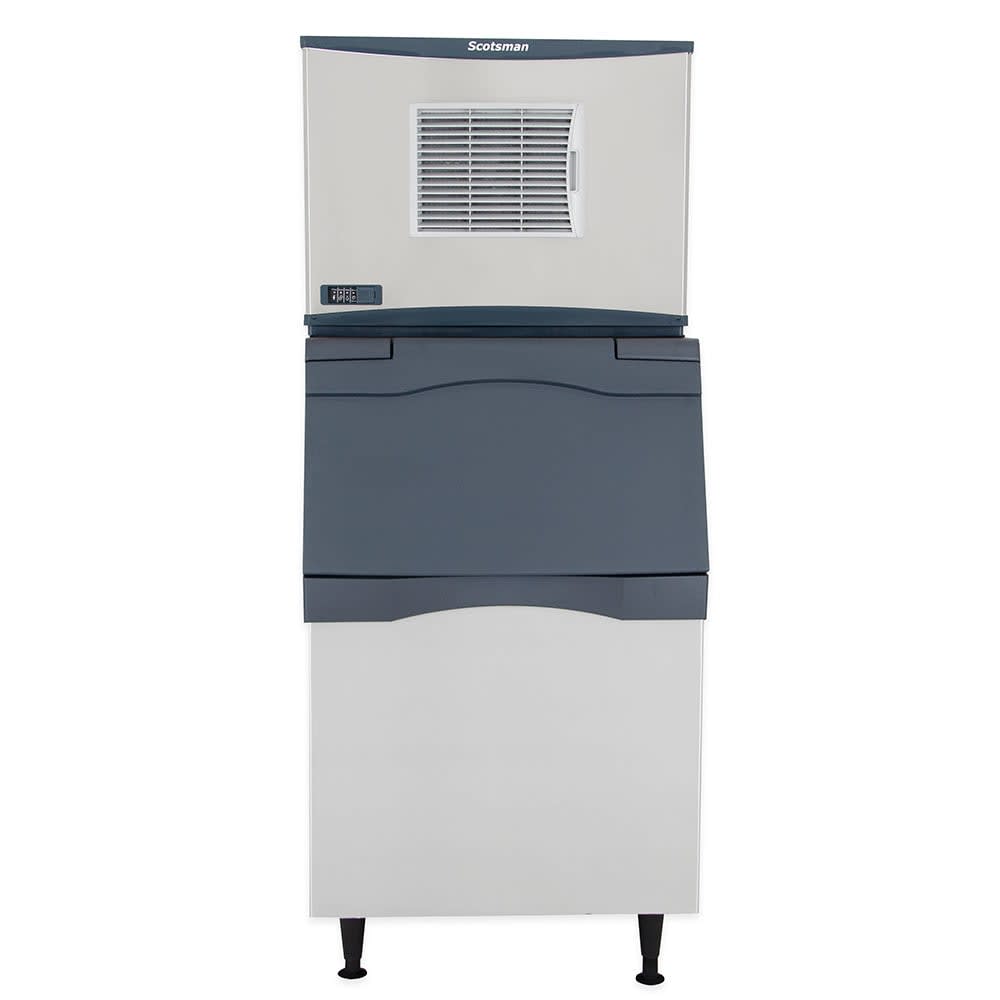

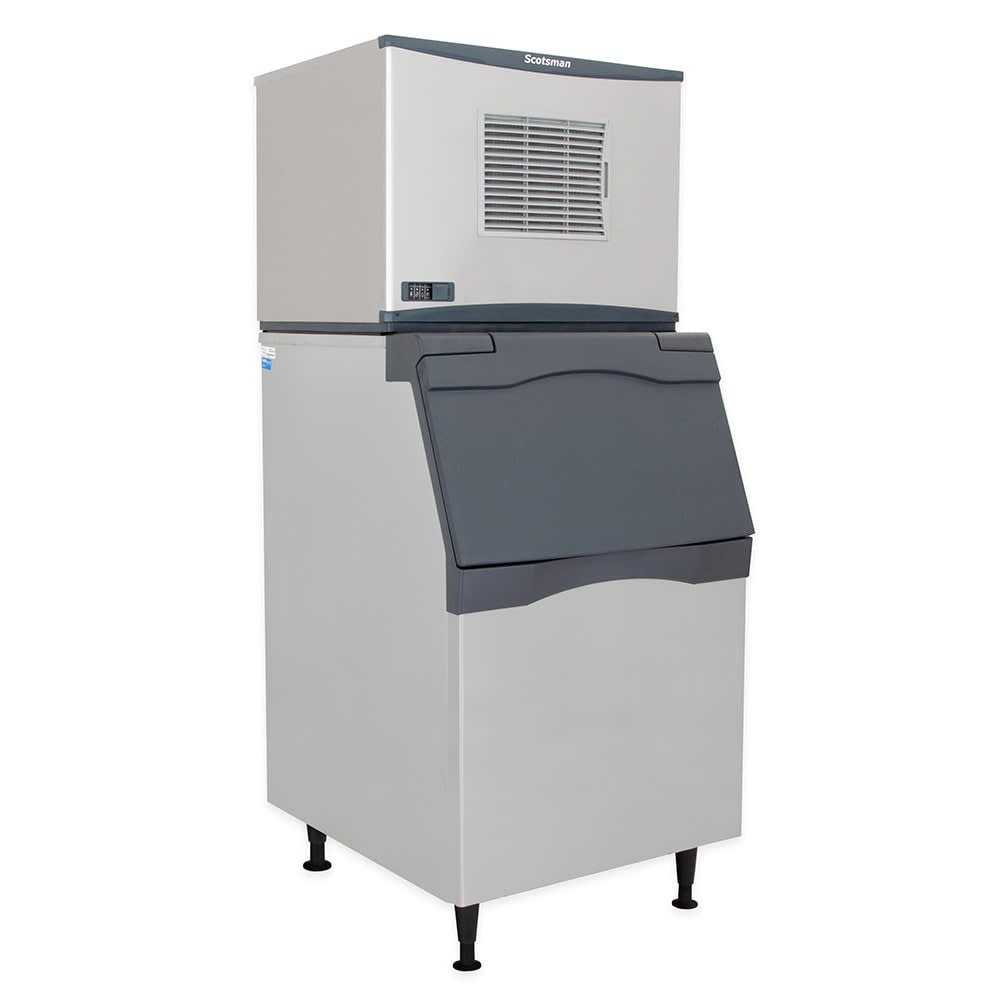

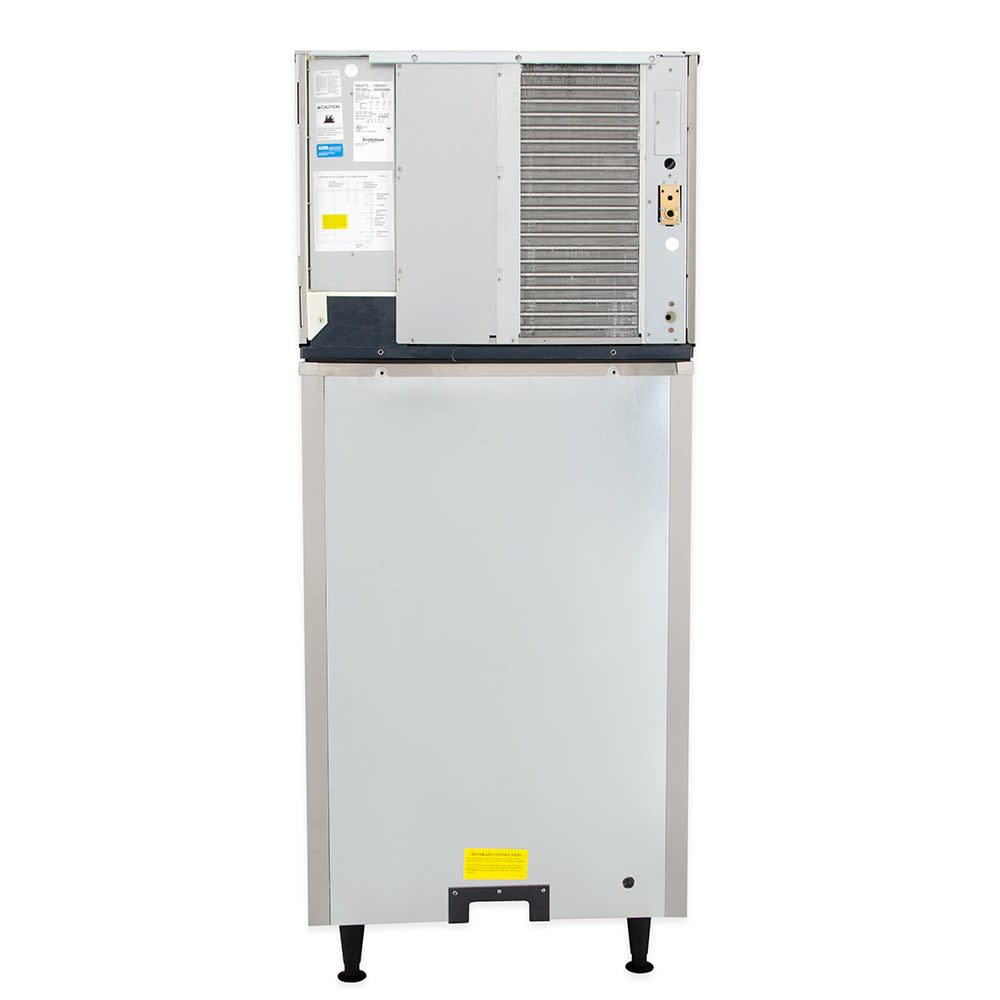

The Scotsman C0630MA-32/B530S Prodigy Plus ice maker with bin can make 640 pounds daily and stores 536 pounds. Measuring 0.875 inch by 0.875 inch by 0.875 inch, the full-cube ice melts slowly in drinks. A diagnostic module, indicator lights, and scannable QR code enable operators to monitor the unit. Its front panel can be removed for component access, and its self-aligning design simplifies reassembly. An ice scoop and built-in holder are included with the Scotsman C0630MA-32/B530S ice maker and bin. Since it has a metallic finish, the bin is durable and the spring-loaded door has hidden hinges to simplify cleaning.
Ice Maker Details
- 640-lb. ice production capacity
- 474-lb. AHRI-certified ice production capacity
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- AutoAlert indicator lights for monitoring operating status
- Smart-Board diagnostic module
- Scannable QR code provides service information and warranty history
- Self-aligning front panel
- 1-touch cleaning
- WaterSense purge control helps reduce scale buildup
- Antimicrobial technology slows bacteria growth
- Harvest Assist technology ensures ice moves into the bin
- Air-cooled condensing unit
- Part of the Prodigy Plus series
- R404A refrigerant
- 12,700 BTU
- Required ambient air temperature: 50-100 degrees F
- Required incoming water temperature: 40-100 degrees F
- Required incoming water pressure: 20-80 PSIG
Bin Details
- 536-lb. storage capacity

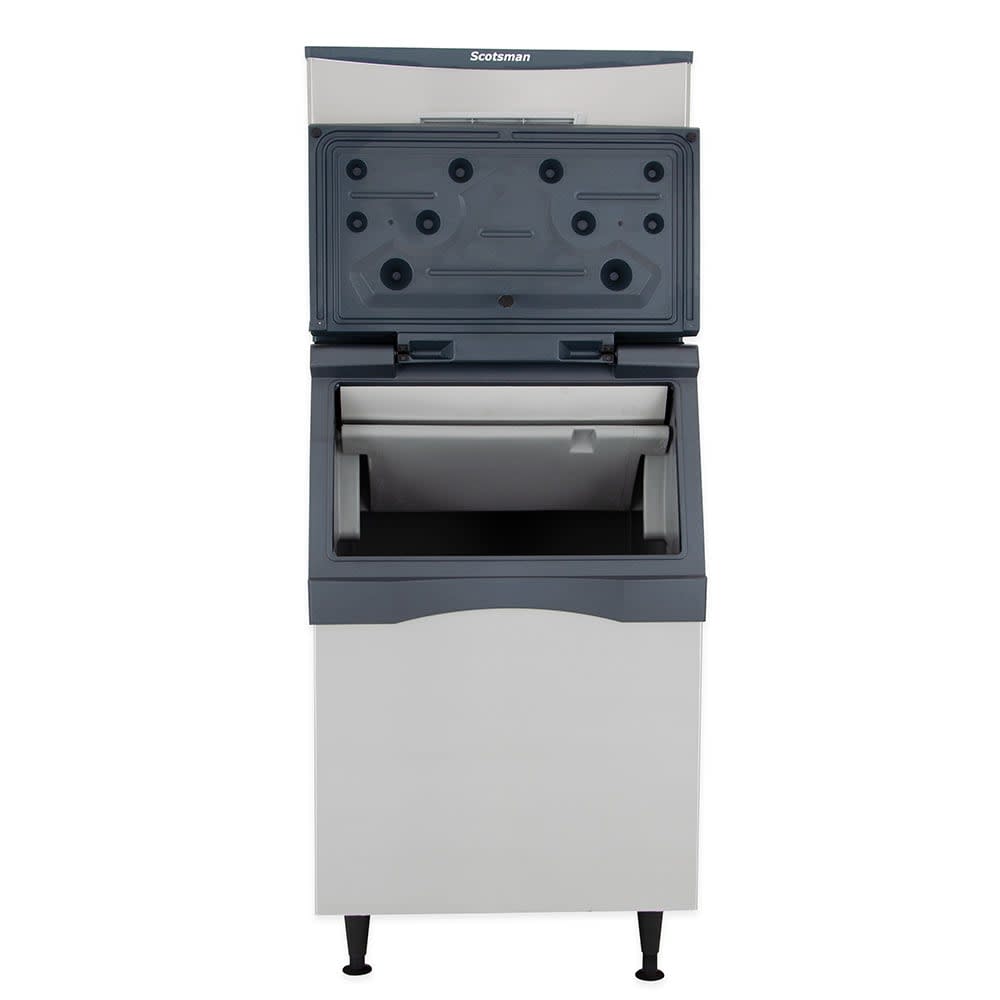

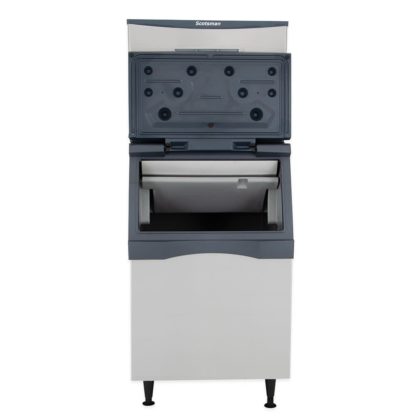

- Spring-loaded door has hidden hinges to simplify cleaning
- Baffle is removable without tools
- Recessed drain fitting for flexible installation
- Ice scoop with integrated holder
- Metallic finish
Dimensions & Utilities
- Ice Maker
- 30.7 in. W x 24 in. D x 23.01 in. H
- 11 A, 5.63 kW
- 208-230 V/60 Hz/1 ph
- Bin
- 30.5 in. W x 34 in. D x 50 in. H
From The Manufacturer
C0630MA-32 Ice Maker: Prodigy Plus Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 640 lb/24 hours at 70°/50° (474 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 208-230v/60/1-ph, 11.0 amps, cULus, NSF, CE; B530S Ice Bin: Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, polyethylene liner, metallic finish exterior, includes 6″ legs, NSF
*Image may not depict product color, inclusions or accessories.
