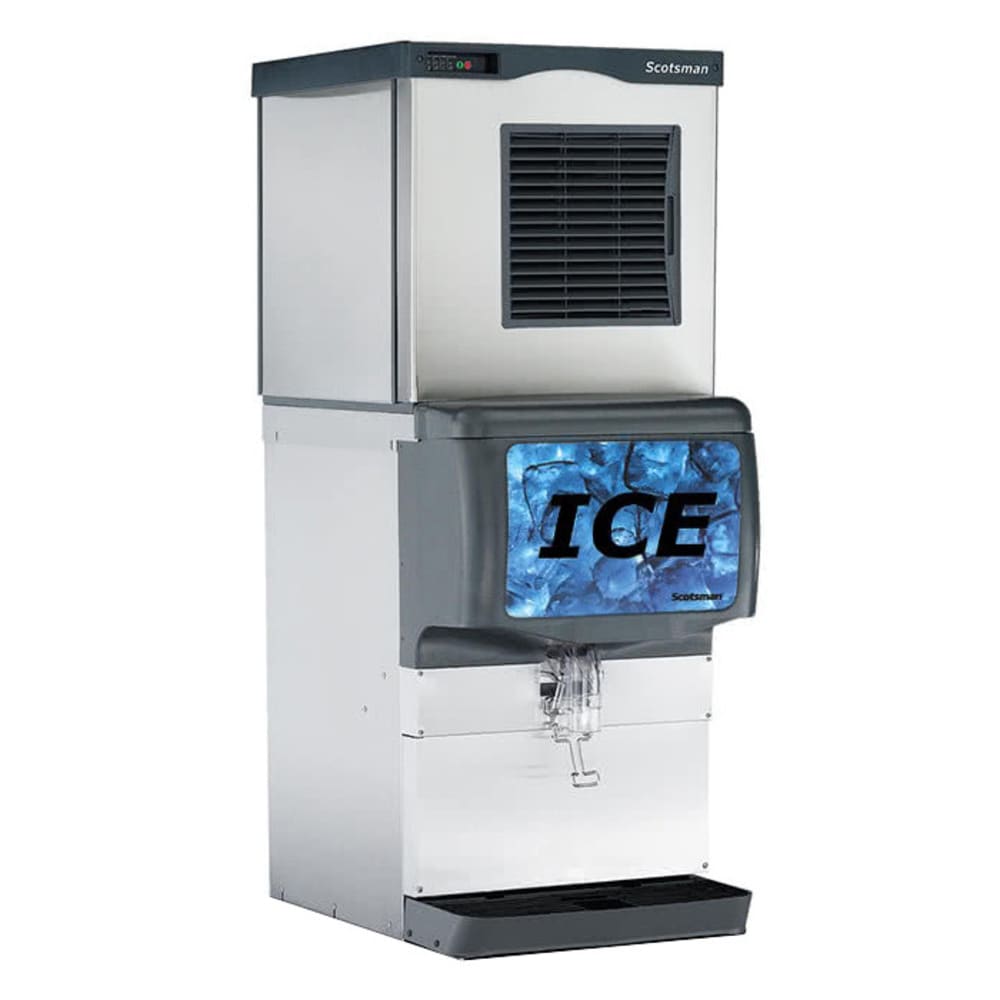

Scotsman C0530SW-1/ID200B-1/KBT44 500 lb Half Cube Ice Maker w/ Countertop Ice Dispenser – 200 lb Storage, Cup Fill, 115v

The Scotsman C0530SW-1/ID200B-1/KBT44 Prodigy Plus ice maker with dispenser uses R404A refrigerant to produce cold temperatures, and, with a water-cooled condenser, makes half-cube ice. Daily, it can make 500 pounds, and the dispenser stores 200 pounds. Employees can monitor the operating status with indicator lights and check diagnostics on the smart module. Scannable for convenience, the QR code provides service information and warranty history. Clean the Scotsman C0530SW-1/ID200B-1/KBT44 ice maker and dispenser with a one-touch cleaning feature. Between cleanings, an antimicrobial agent slows bacteria growth, while scale buildup is removed by purge control.

Ice Maker Details

• 500-lb. ice production capacity
• 410-lb. AHRI-certified ice production capacity
• Water-cooled condensing unit
• Half-cube ice size: 0.875 in. x 0.875 in. x 0.375 in.
• Smart-Board module displays diagnostic feedback
• Operating status shown with AutoAlert indicator lights
• Scannable QR code for service and warranty information
• Self-aligning front panel ensures component access
• 1-touch cleaning function
• WaterSense purge control helps prevent scale builup
• Interior antimicrobial agent slows bacteria growth
• Harvest Assist efficiently moves ice from the head to dispenser
• Part of the Prodigy Plus series
• R404A refrigerant
• 7,900 BTU
• Required ambient air temperature: 50-100 degrees F
• Required incoming water temperature: 40-100 degrees F
• Required incoming water pressure: 20-80 PSIG

Dispenser Details

• 200-lb. storage capacity
• Off-cycle agitation can be adjusted for operation in various conditions
• Durable agitator reduces jamming and bridging
• Agitator motor withstands repeated use
• Insulated drip tray prevents condensation accumulation
• Front-accessible components
• KBT44 adapter connects the ice maker to this dispenser

Dimensions & Utilities

• Ice Maker
  • 30.7 in. W x 24 in. D x 23.01 in. H
  • 13.5 A, 5 kW
  • 115 V/60 Hz/1 ph
• Dispenser
  • 30.25 in. W x 30.6875 in. D x 35.6275 in. H
  • 115 V/60 Hz/1 ph

From The Manufacturer

C0530SW-1 Ice Maker: Prodigy Plus Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 500 lb/24 hours at 70°/50° (410 lb AHRI certified at 90°/70°), stainless steel finish, small cube size, 115v/60/1-ph, 13.5 amps, cULus, NSF, CE; ID200B-1 Ice Dispenser: Ice Dispenser, counter model, 200 lb capacity, designed for cube-type ice, stainless steel exterior, cup activated, 115v/60/1-ph, NSF, cULus; KBT44 Ice Bin Top: Bin Top, for use with 30″ cubers, flakers & nugget makers on ID200, ID250 dispensers

*Image may not depict product color, inclusions or accessories.
