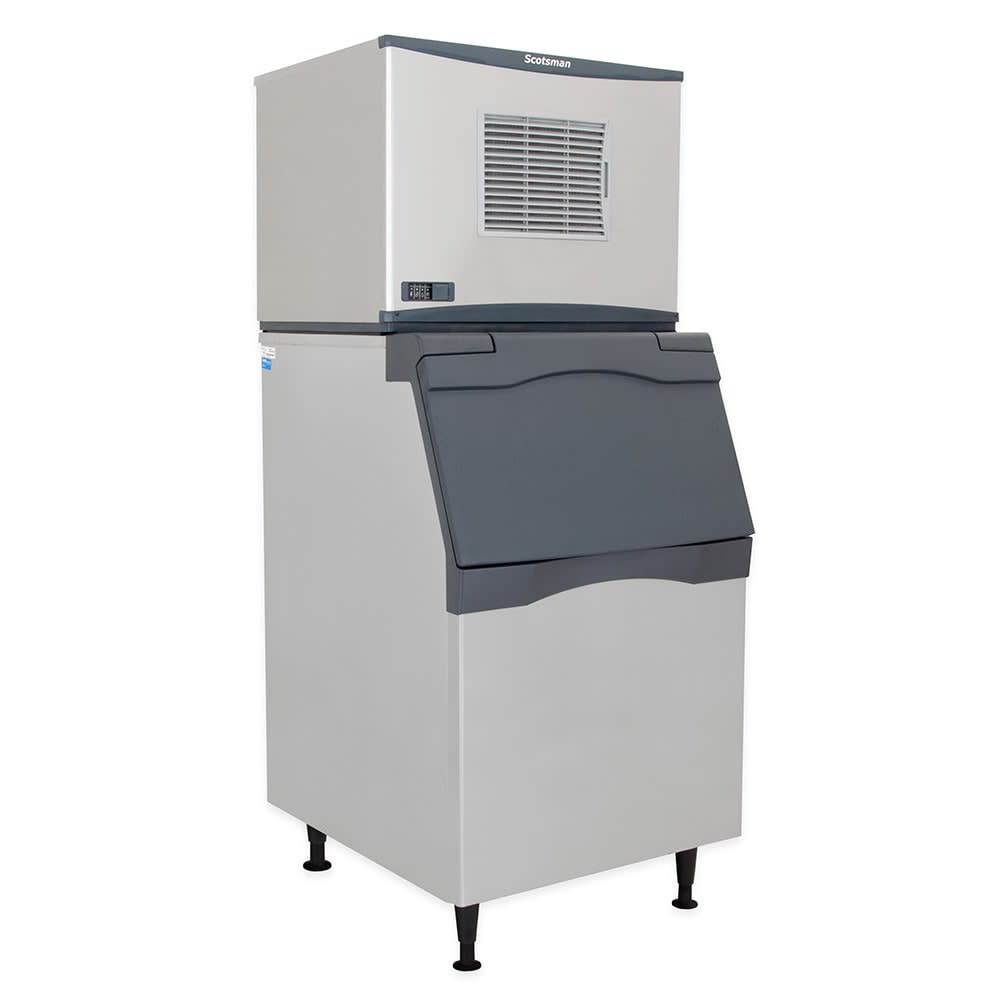

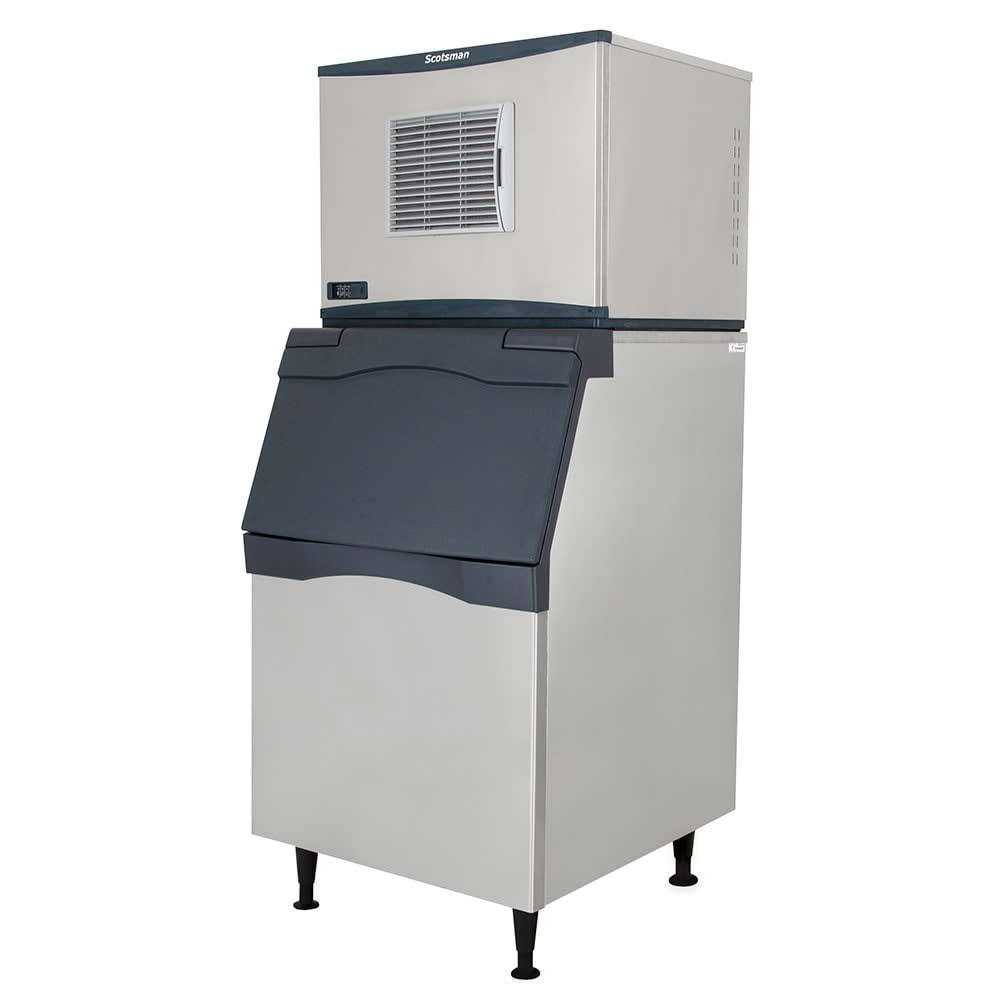

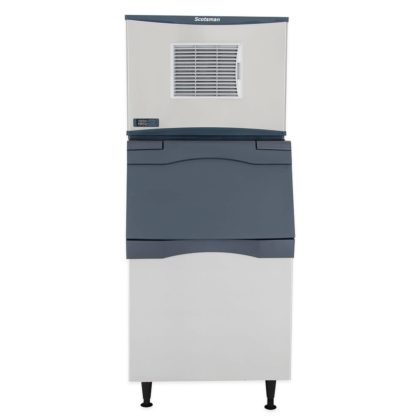

Scotsman C0530SW-1/B530S 500 lb Half Cube Ice Maker w/ Bin – 536 lb Storage, Water Cooled, 115v

The Scotsman C0530SW-1/B530S Prodigy Plus ice maker with bin has a water-cooled condenser and produces half-cube ice. It can make 500 pounds daily, and ice moves from the head to the bin, which has a 536-pound capacity. Indicator lights show the operating status, while the smart module provides diagnostic information. Operators can also scan the QR code to connect with warranty history and service information.

Bacteria in the ice maker is resisted by an antimicrobial agent, and purge control limits scale buildup. This Scotsman C0530SW-1/B530S ice machine and bin are constructed of strong stainless steel, and the bin door is spring loaded for convenient opening. Cleaning the bin is simplified since the door has hidden hinges that eliminate crevices.

Ice Maker Details

• 500-lb. ice production capacity
• 410-lb. AHRI-certified ice production capacity
• Half-cube ice size: 0.875 in. x 0.875 in. x 0.375 in.
• AutoAlert indicator lights display operating status
• Smart-Board module gives users diagnostic information
• QR code is scannable for service and warranty data
• Front panel self-aligns and removes for components accessibility
• 1-touch cleaning
• WaterSense purge control reduces scale buildup
• Antimicrobial technology helps prevent interior bacteria growth
• Harvest Assist technology ensures ice moves into the bin

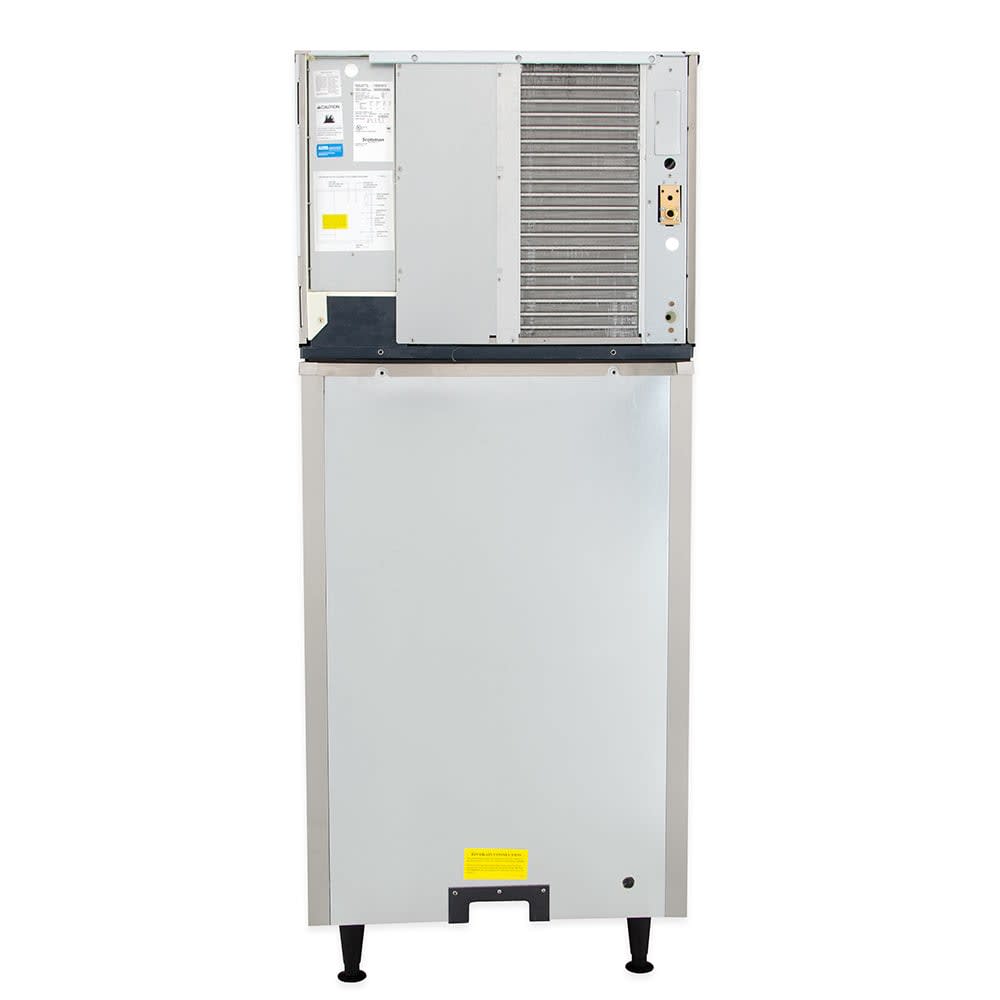

• Water-cooled condensing unit
• Part of the Prodigy Plus series
• R404A refrigerant
• 7,900 BTU
• Required ambient air temperature: 50-100 degrees F
• Required incoming water temperature: 40-100 degrees F
• Required incoming water pressure: 20-80 PSIG

Bin Details

• 536-lb. storage capacity

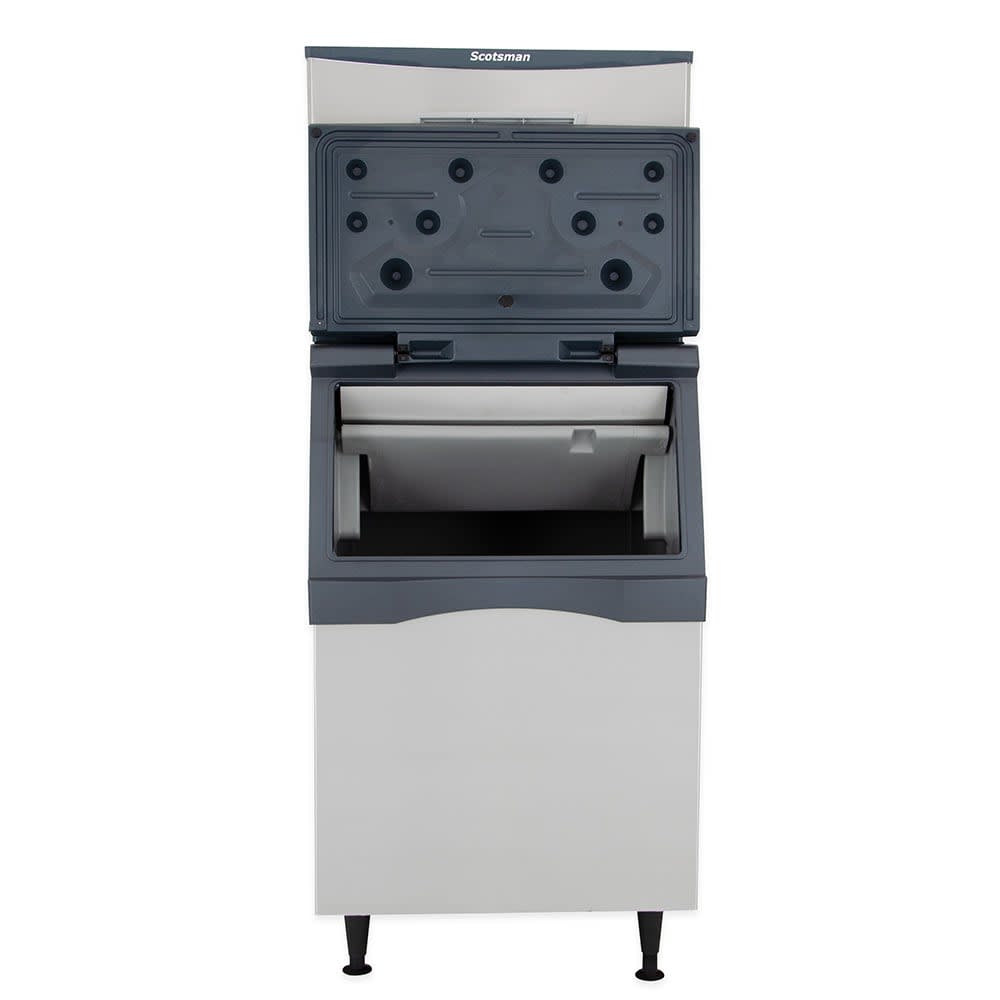

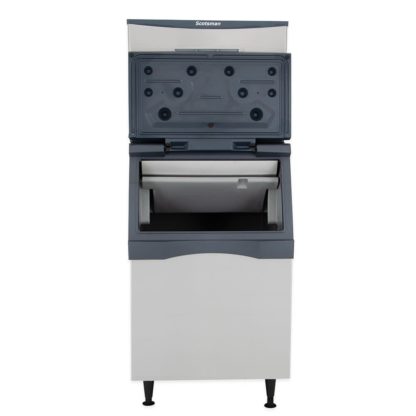

• Spring-loaded door has hidden hinges that ease cleanup
• Baffle can be removed without tools
• Recessed drain fitting provides installation flexibility
• Includes ice scoop and holder
• Metallic finish

Dimensions & Utilities

• Ice Maker
  • 30.7 in. W x 24 in. D x 23.01 in. H
  • 13.5 A, 5 kW
  • 115 V/60 Hz/1 ph
• Bin
  • 30.5 in. W x 34 in. D x 50 in. H

From The Manufacturer

C0530SW-1 Ice Maker: Prodigy Plus Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 500 lb/24 hours at 70°/50° (410 lb AHRI certified at 90°/70°), stainless steel finish, small cube size, 115v/60/1-ph, 13.5 amps, cULus, NSF, CE; B530S Ice Bin: Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, polyethylene liner, metallic finish exterior, includes 6″ legs, NSF

*Image may not depict product color, inclusions or accessories.
