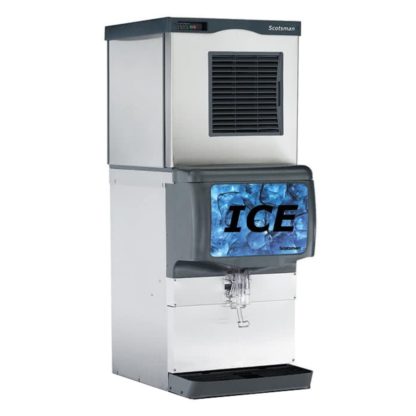

Scotsman C0530SA-1/ID200B-1/KBT44 525 lb Half Cube Ice Maker w/ Countertop Ice Dispenser – 200 lb Storage, Cup Fill, 115v

The Scotsman C0530SA-1/ID200B-1/KBT44 Prodigy Plus ice maker with countertop dispenser produces half-cube ice that is ideal for drinks. In 24 hours, it can make 525 pounds, and operators can monitor the unit’s status with indicator lights. A module provides diagnostic feedback, while the QR code is scannable and displays service information.

There is a 200-pound storage capacity in the Scotsman C0530SA-1/ID200B-1/KBT44 ice maker with countertop dispenser. Since the dispenser has a durable agitator, bridging and jamming are unlikely, while the agitator motor is heavy duty to support high-volume use. A drip tray is integrated into the unit to catch spills, and its insulated design prevents condensation from building up. Harvest Assist technology efficiently moves ice from the machine head to the countertop dispenser, and these two units are connected by an adapter.

Ice Maker Details

• 525-lb. ice production capacity
• 380-lb. AHRI-certified ice production capacity
• Half-cube ice size: 0.875 in. x 0.875 in. x 0.375 in.
• Harvest Assist efficiently moves ice from maker to dispenser
• Smart-Board diagnostic module
• AutoAlert indicator lights show operating status
• Scannable QR code instantly provides service and warranty information
• Removable, self-aligning front panel
• Antimicrobial agent slows bacteria growth on internal surfaces
• WaterSense purge control removes built-up scale
• 1-touch cleaning
• Air-cooled condenser
• Front air filter eliminates clearance needs
• Part of the Prodigy Plus series
• Uses R404A refrigerant
• 7,900 BTU
• Required ambient air temperature: 50-100 degrees F
• Required incoming water temperature: 40-100 degrees F
• Required incoming water pressure: 20-80 PSIG

Dispenser Details

• 200-lb. storage capacity
• Adjustable off-cycle agitation operates in most conditions
• Durable agitator helps prevent bridging and jamming
• Strong agitator motor withstands heavy use
• Insulated drip tray resists condensation
• Front-accessible components
• KBT44 adapter connects ice maker and dispenser

Dimensions & Utilities

• Ice Maker
  • 30.7 in. W x 24 in. D x 23.01 in. H
  • 15.2 A, 5.8 kW
  • 115 V/60 Hz/1 ph
• Dispenser
  • 30.25 in. W x 30.6875 in. D x 35.6275 in. H
  • 115 V/60 Hz/1 ph

From The Manufacturer

C0530SA-1 Ice Maker: Prodigy Plus Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 525 lb/24 hours at 70°/50° (380 lb AHRI certified at 90°/70°), stainless steel finish, small cube size, 115v/60/1-ph, 15.2 amps, cULus, NSF, CE; ID200B-1 Ice Dispenser: Ice Dispenser, counter model, 200 lb capacity, designed for cube-type ice, stainless steel exterior, cup activated, 115v/60/1-ph, NSF, cULus; KBT44 Ice Bin Top: Bin Top, for use with 30″ cubers, flakers & nugget makers on ID200, ID250 dispensers

*Image may not depict product color, inclusions or accessories.
