Description

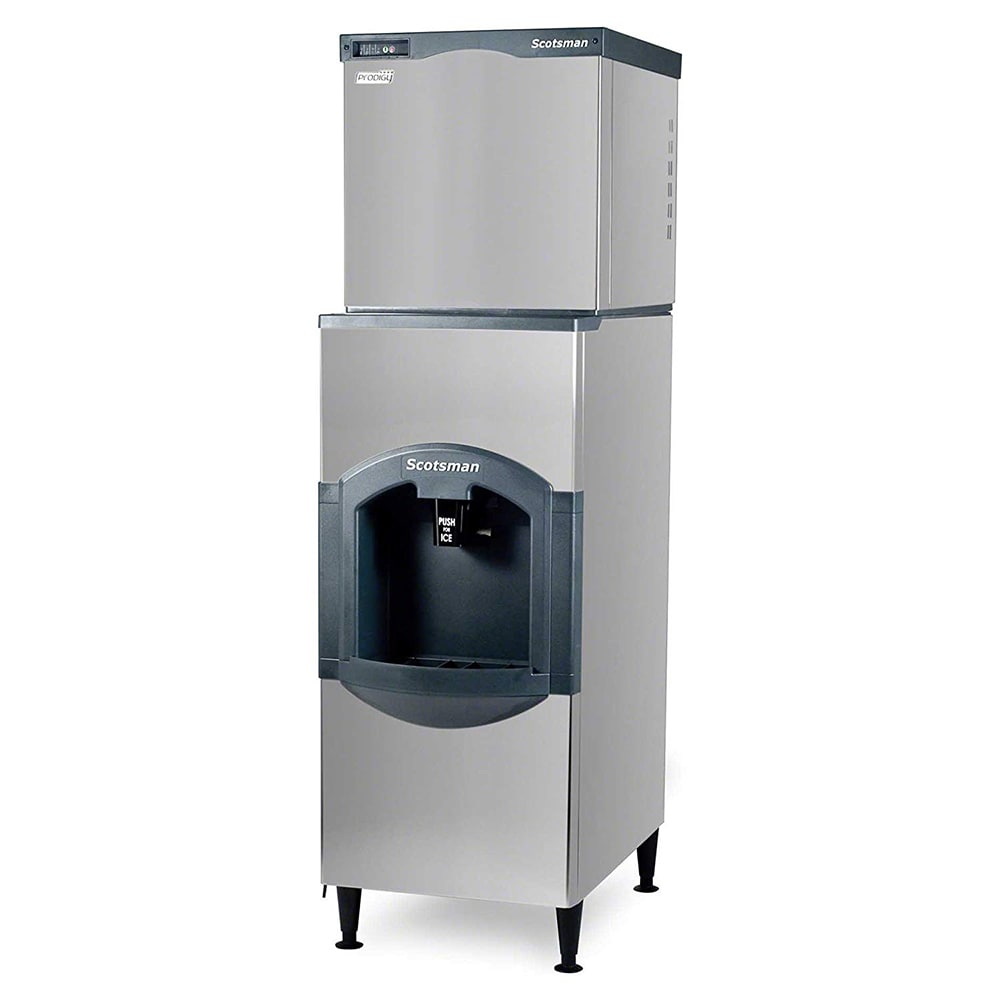

Scotsman C0530SA-1/HD30B-1 Description
The Scotsman C0530SA-1/HD30B-1 Prodigy Plus ice machine with iceValet dispenser has an air-cooled condensing unit and a front-located air filter, enabling installation against other equipment and walls. Making 525 pounds of ice daily, this unit has a Harvest Assist feature that pushes ice into the bin to guarantee a consistent supply of ice. With AutoAlert lights, the unit’s status is displayed for the user. The cleaning process begins with the touch of a button, and a WaterSense feature reduces scale buildup by adjusting incoming water quality.
The Scotsman C0530SA-1/HD30B-1 ice maker and dispenser can store 180 pounds of ice and has a metallic cabinet that resists corrosion. It is insulated with polyurethane foam to add strength and keep ice cold. Fitting almost any size ice bucket, this unit features a wide dispensing area. Its top panel is removable for cleaning and servicing, and a push chute supports self-service ice dispensing.
Ice Machine Details
- Part of the Prodigy Plus series
- 525-lb. daily ice production capacity
- 380-lb. AHRI-certified daily ice production capacity
- Half-cube ice size: 0.875 in. x 0.875 in. x 0.375 in.
- Air-cooled condenser uses R404A refrigerant
- Air filter is located on the front for uninterrupted air flow
- Unit’s operating status is always displayed with AutoAlert indicator lights
- QR code provides the user with technical and warranty information
- Cleaning process begins operating with the push of a button
- Front panel provides access to internal components
- WaterSense minimizes scale buildup by adjusting water quality
- Harvest Assist ensures a constant supply of ice
- Built-in antimicrobial agent protects the unit between cleanings
- 7,900 BTU
- Required ambient air temperature: 50-100 degrees F
- Required incoming water temperature: 40-100 degrees F
- Required water pressure: 20-80 PSI
Ice Dispenser Details
- Part of the iceValet series
- 180-lb. ice storage capacity
- Metallic cabinet resists rusting
- Push chute facilitates ice dispensing
- Removable top panel for cleaning and servicing
- Wide dispensing area accommodates almost every size ice bucket
- Polyurethane foam insulation adds structure and retains temperatures
- Required ambient air temperature: 50-100 degrees F
- Required incoming water temperature: 40-100 degrees F
- Required incoming water pressure: 20-80 PSI
Dimensions & Utilities
- Ice Maker
- 30.7 in. W x 24 in. D x 23 in. H
- 15.2 A, 5.8 kW
- 115 V/60 Hz/1 ph
- Ice Dispenser
- 30 in. W x 33.5 in. D x 53.25 in. H
- 115 V/60 Hz/1 ph, 11-ft. cord with a plug
From The Manufacturer
C0530SA-1 Ice Maker: Prodigy Plus Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 525 lb/24 hours at 70°/50° (380 lb AHRI certified at 90°/70°), stainless steel finish, small cube size, 115v/60/1-ph, 15.2 amps, cULus, NSF, CE; HD30B-1 Ice Dispenser: iceValet Hotel/Motel Ice Dispenser, floor model, push dispensing, 180 lb storage capacity, designed for 30″ wide top mount cube-type ice makers, stainless front & sides, includes 6″ legs, 115v/60/1-ph, 2.1 amps, NSF, cULus
*Image may not depict product color, inclusions or accessories.
