Description

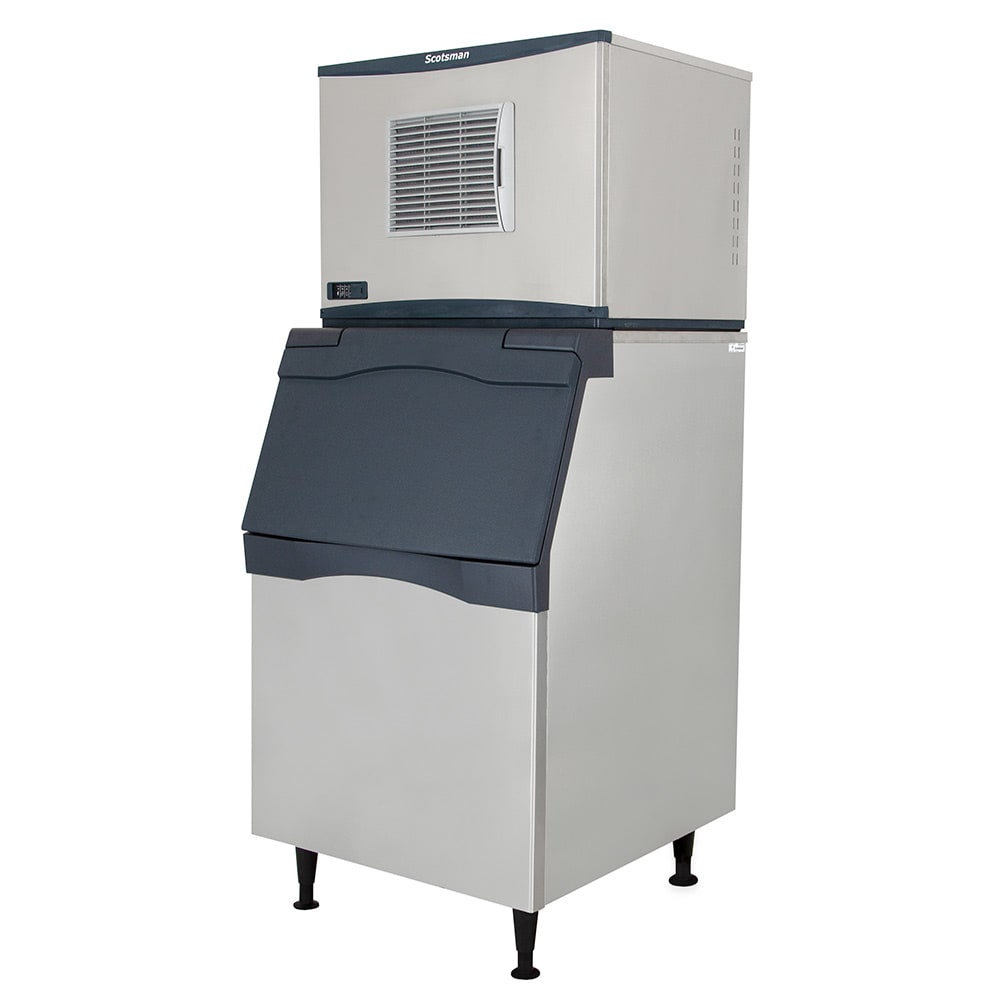

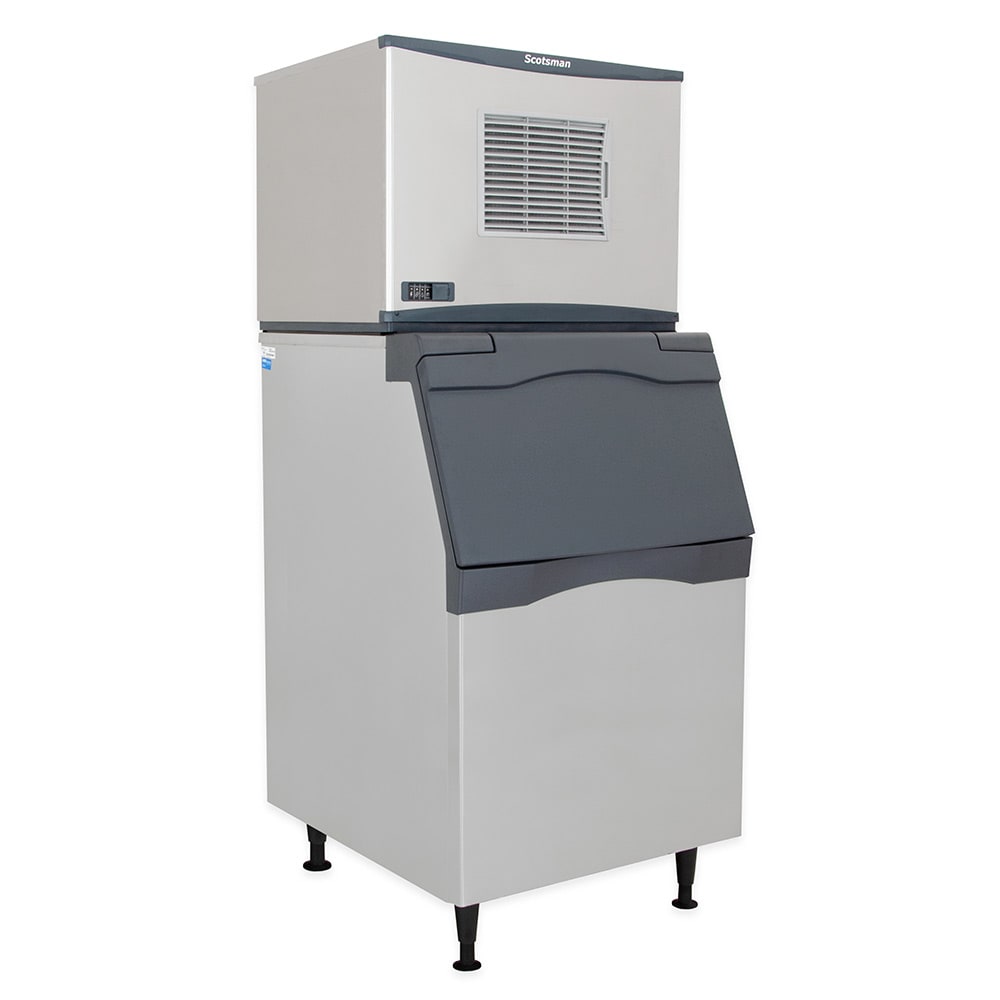

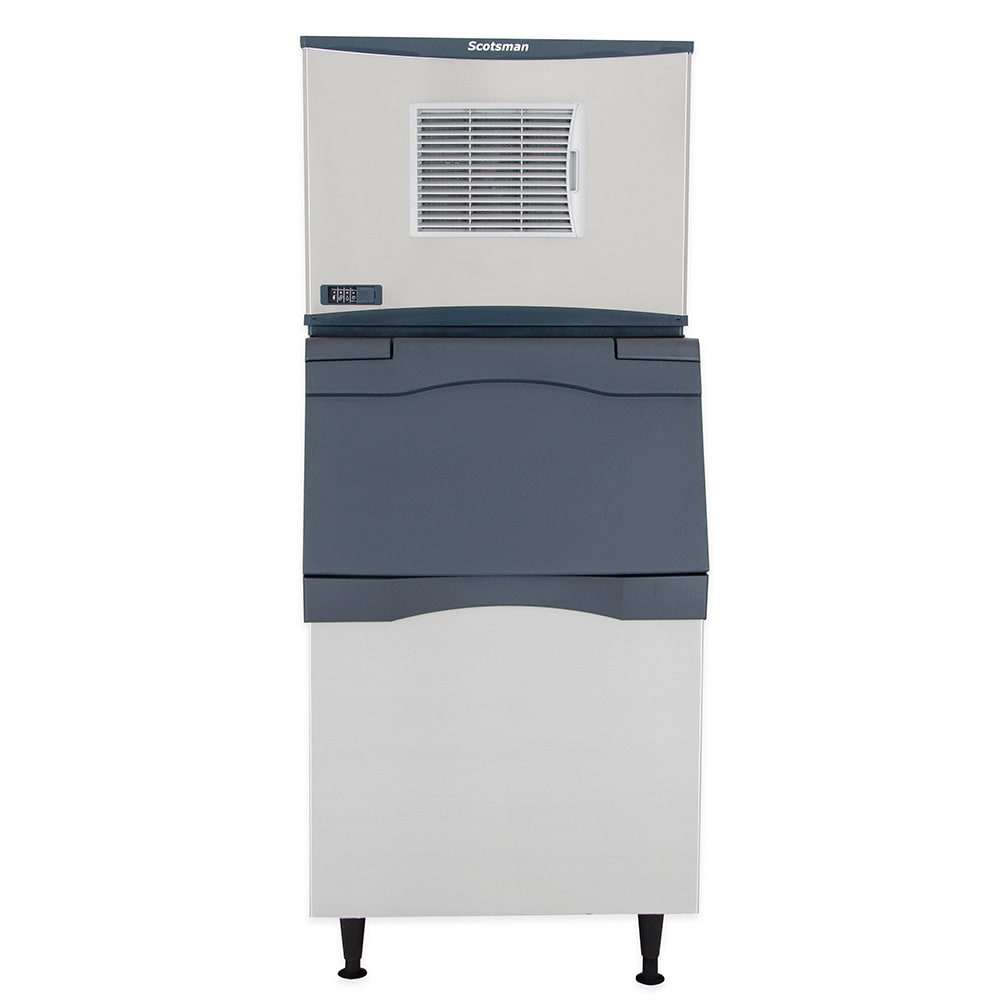

Scotsman C0530SA-1/B530P
The Scotsman C0530SA-1/B530P Prodigy Plus combination ice machine head and bin ice maker can produce 525 pounds of small cube ice and can hold 536 pounds for later use. Ice is made by running water over an evaporator grid, where it slowly begins to freeze and gain its small cube shape. Once ice is frozen, a Harvest Assist pin pushes the ice out, and the WaterSense control purges mineral-filled water to get ready for the next cycle. Then the ice falls against the baffle and into the bin, which is insulated to prevent melting. If some ice does melt, users can remove water from the interior with the drain.
This Scotsman C0530SA-1/B530P ice maker and bin has features that prevent changes in ice taste and purity. The ice head’s food zone-the area where ice is made-has several components with built-in antimicrobial protection. If it needs maintenance, the AutoAlert indicator lights will illuminate, encouraging users to clean the unit. The bin is lined with quick-cleaning polyethylene and features a built-in scoop holder that helps keep contaminants out of the ice.
Ice Maker Details
- Part of the Prodigy Plus series
- 525-lb. maximum daily ice production
- 380-lb. AHRI-certified daily ice production
- Small cube-style ice
- Cube size: 7/8 in. x 3/8 in. x 7/8 in.
- Removable front panel for accessing internal components
- 1-touch clean feature speeds up cleaning tasks

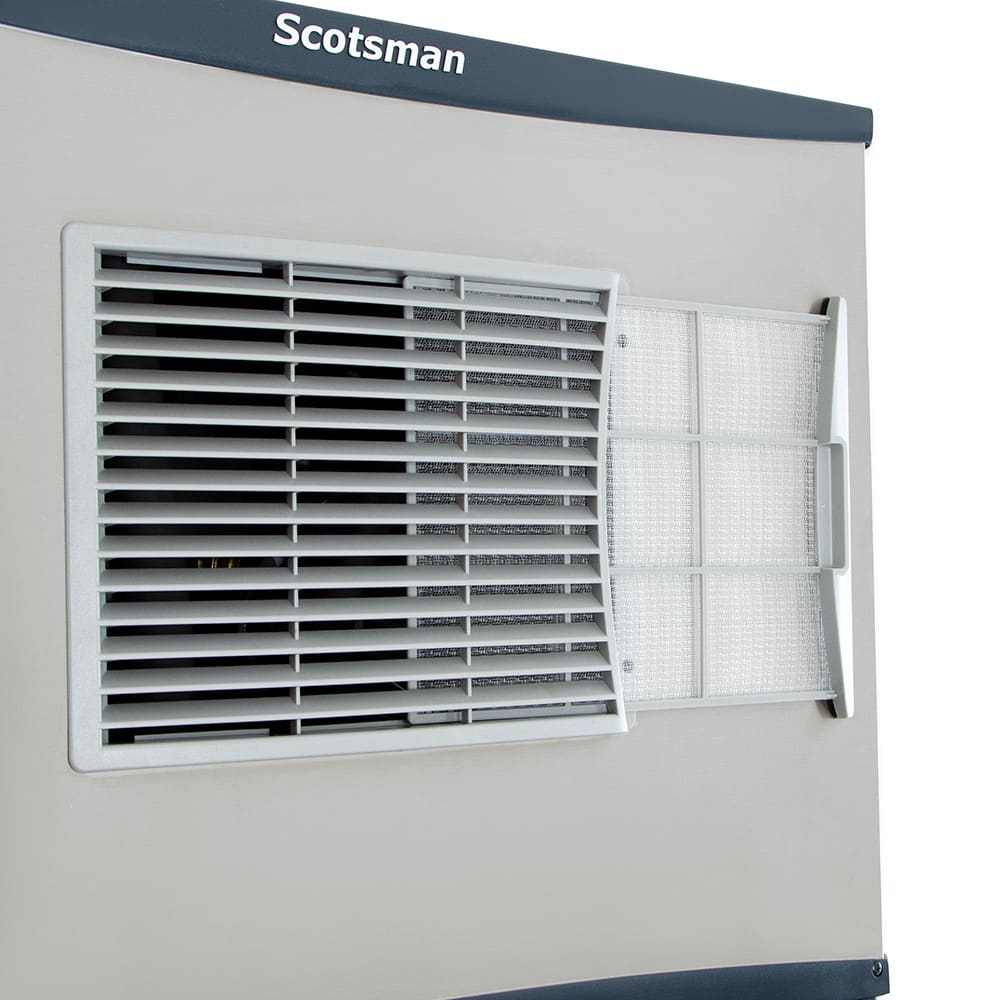

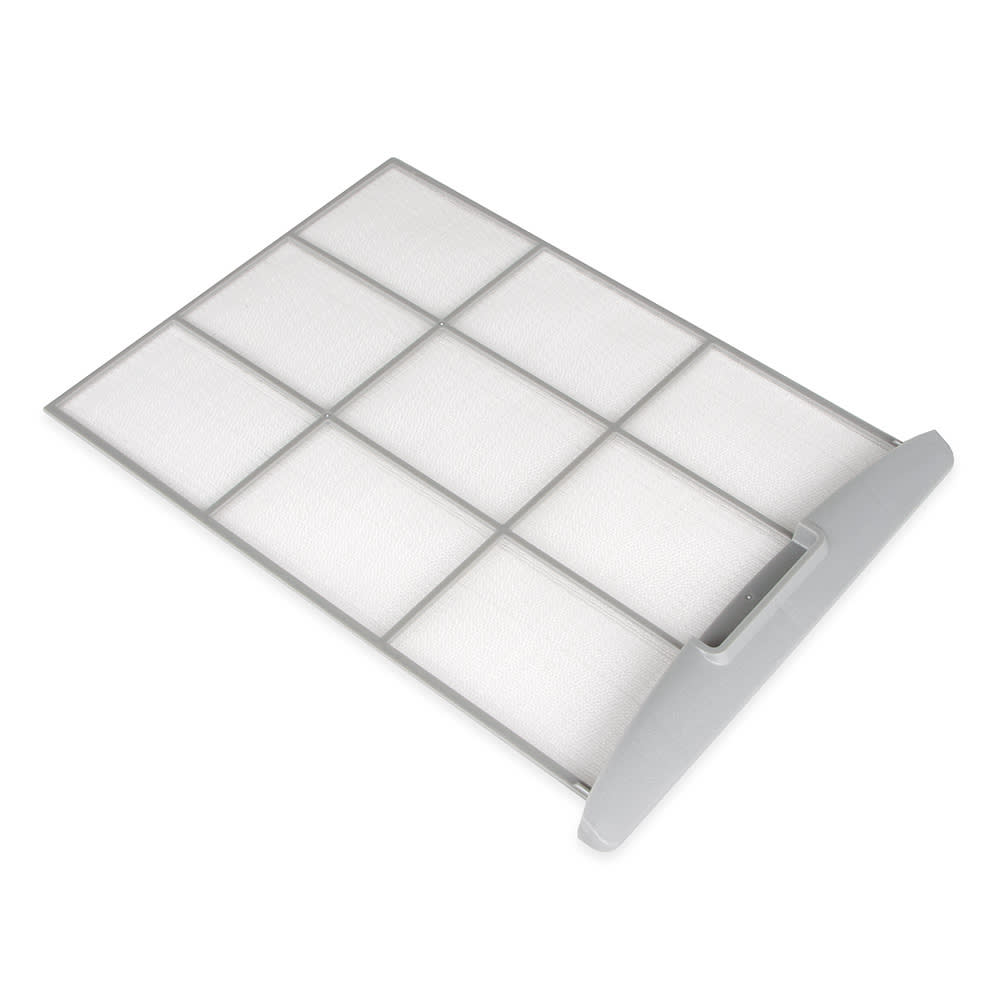

- Front air filter and airflow cannot be blocked from the sides
- Front panel aligns itself to facilitate accessing the important components
- Interior surfaces are protected with antimicrobial agents
- Stainless steel exterior withstands heavy use

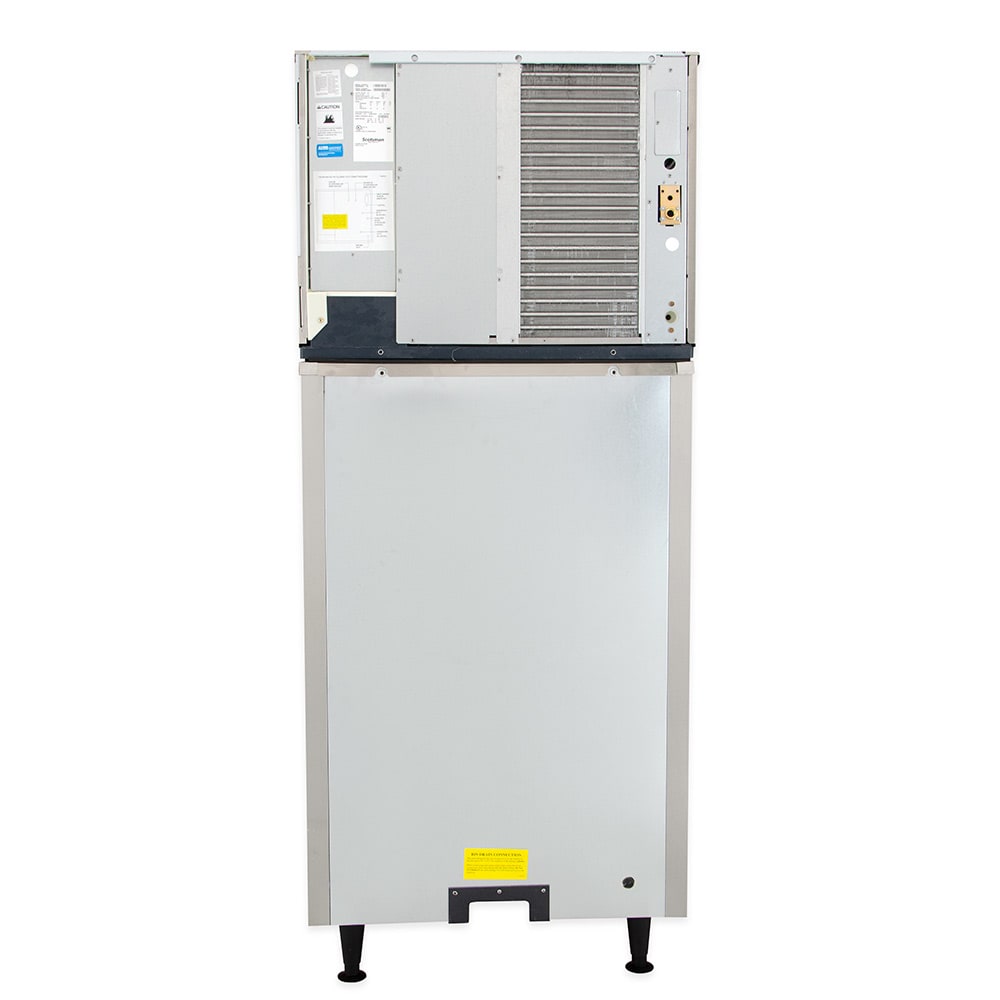

- Condensing unit is air cooled and uses R-404A refrigerant
- 7,900-BTU heat transfer capacity

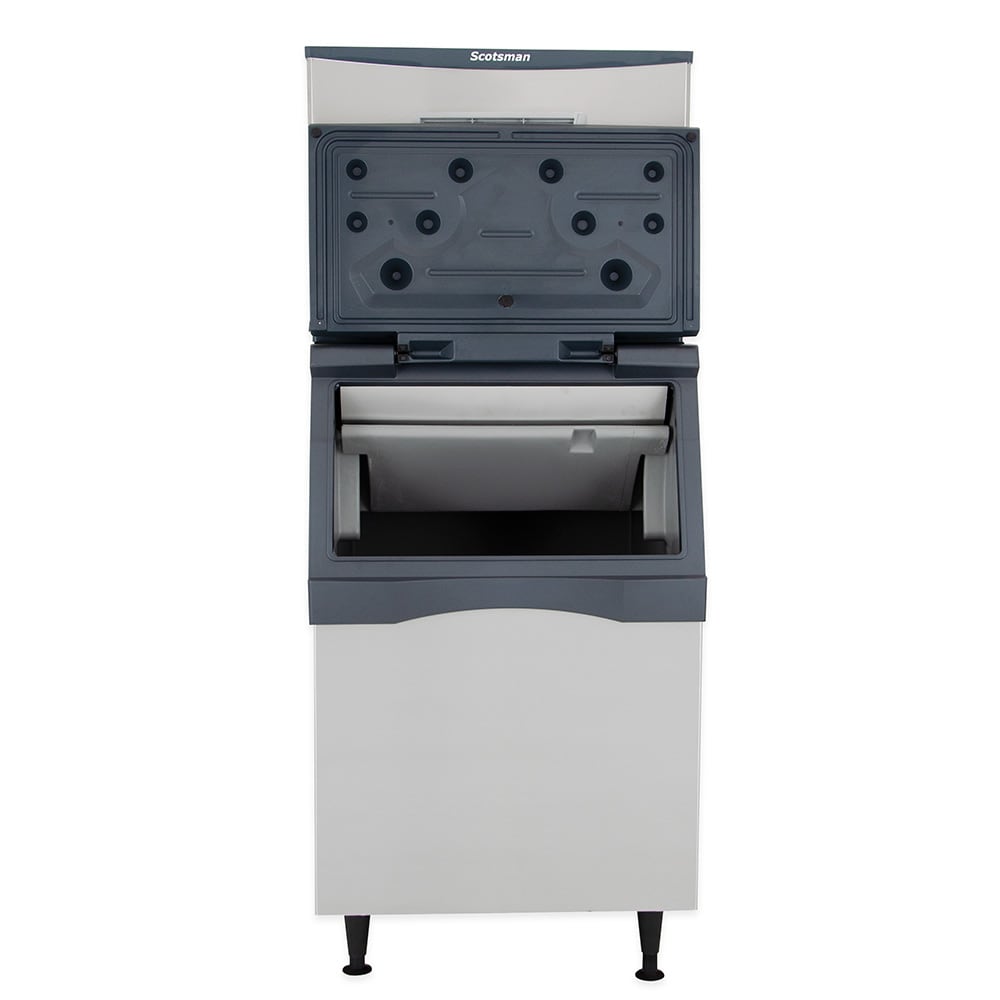

Ice Bin Details
- 536-lb. holding capacity
- Polyethylene interior can be wiped clean
- Drain releases moisture in the bottom
- Ice baffle is removable without tools

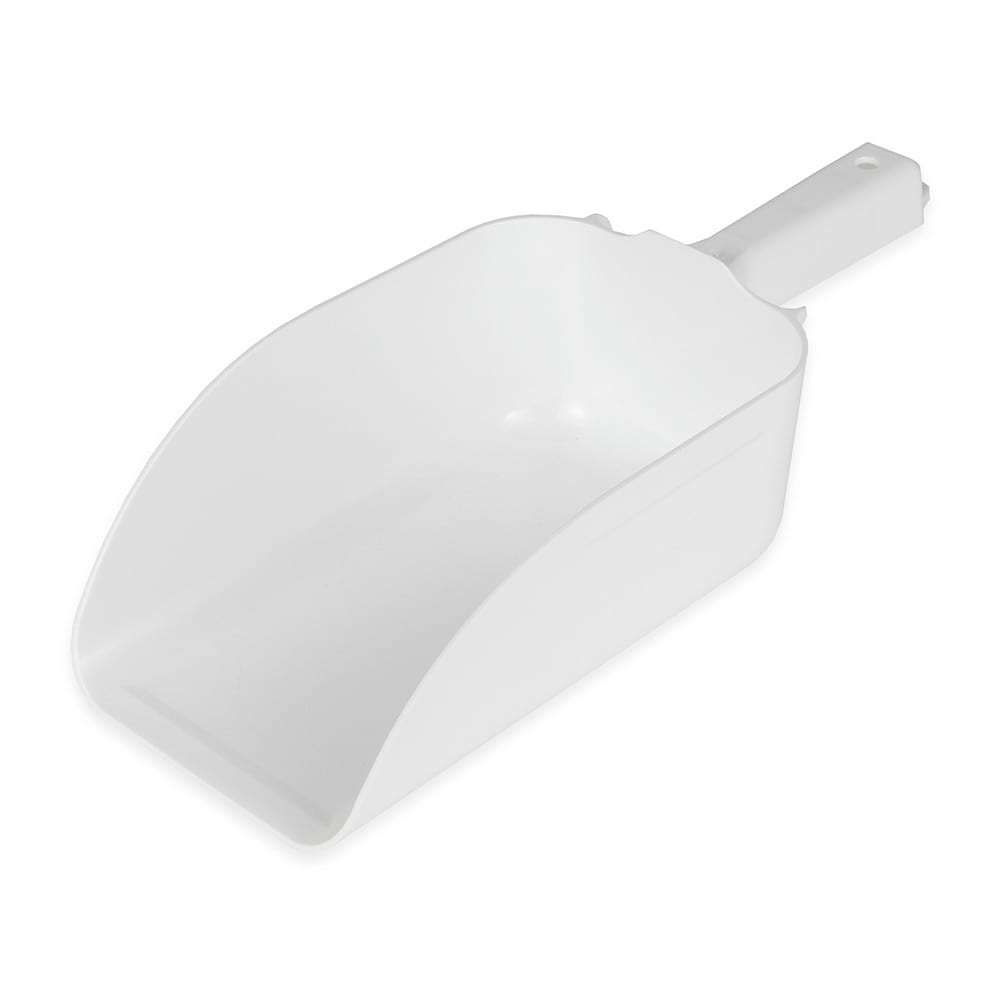

- Ice scoop is included
- Holder keeps the frequently touched scoop handle out of the ice
- Foam insulation helps keep ice from melting
- Rotocast plastic construction is lightweight and corrosion resistant
Convenient Features
- Harvest Assist quickly and efficiently moves ice to the bin
- WaterSense adaptive purge control extends time between cleanings by reducing scale buildup

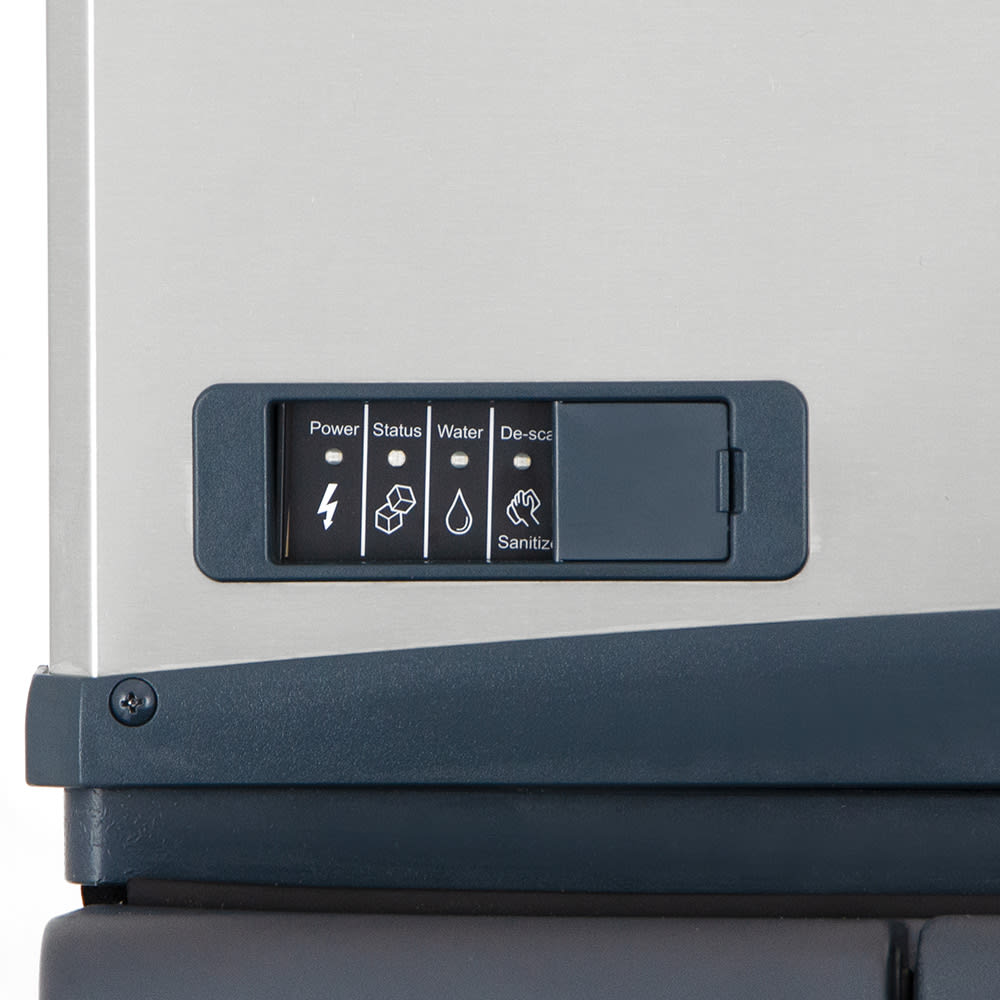

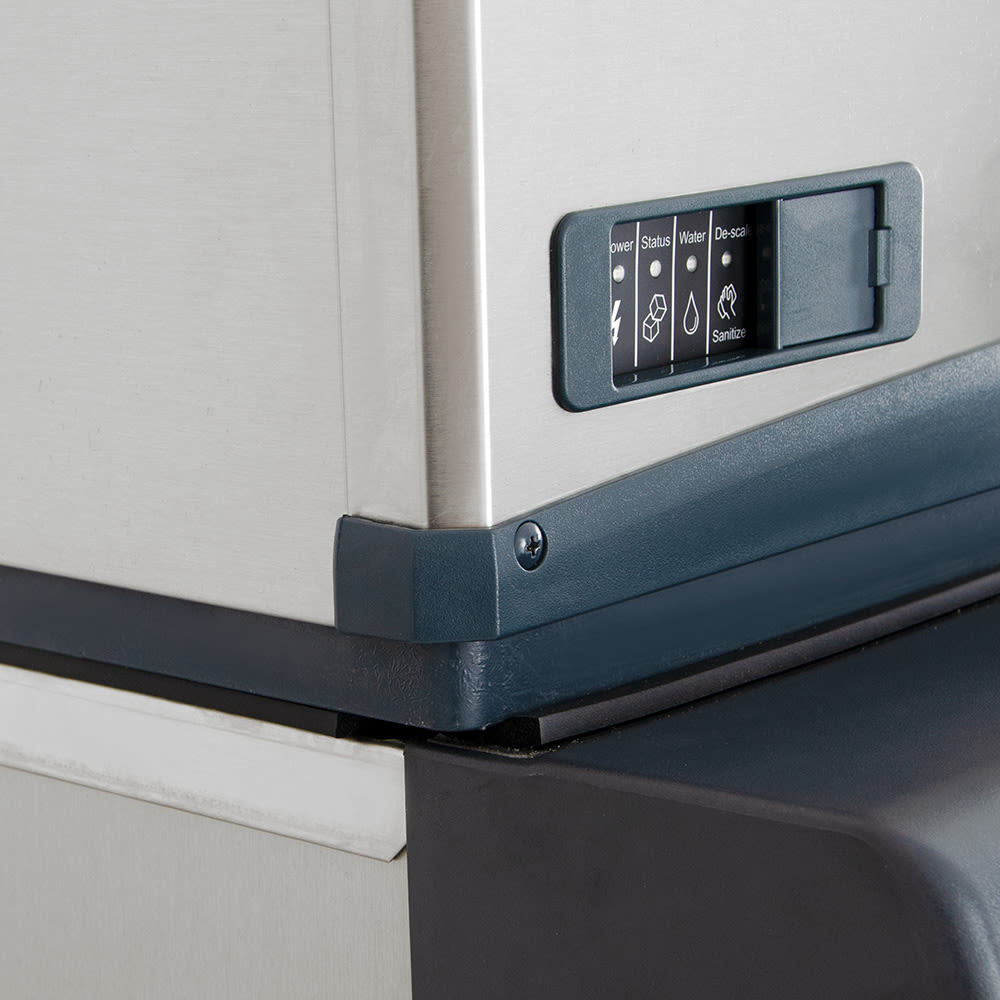

- AutoAlert indicator lights communicate the operation status, descaling needs, and sanitization information

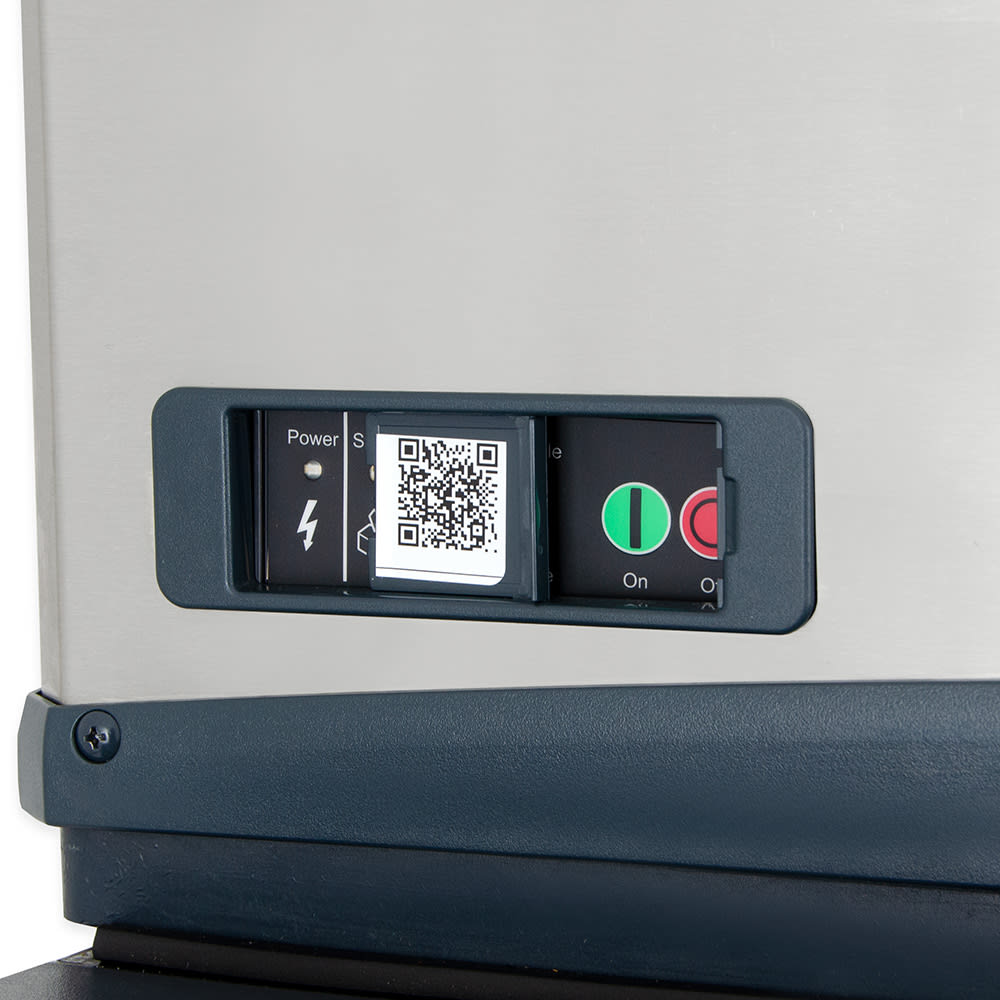

- QR code links to the ice maker’s warranty and service information
Ideal Operating Conditions
- Surrounding air temperature: 50-100 degrees F
- Incoming water temperature: 40-100 degrees F
- Water pressure: 20-80 PSIG
Dimensions & Utilities
- Bin: 30.5 in. W x 34 in. D x 50 in. H
- Ice machine: 30 in. W x 24 in. D x 23 in. H
- 15.2 A, 5.8 kW
- 115 V/60 Hz/1 ph
From The Manufacturer

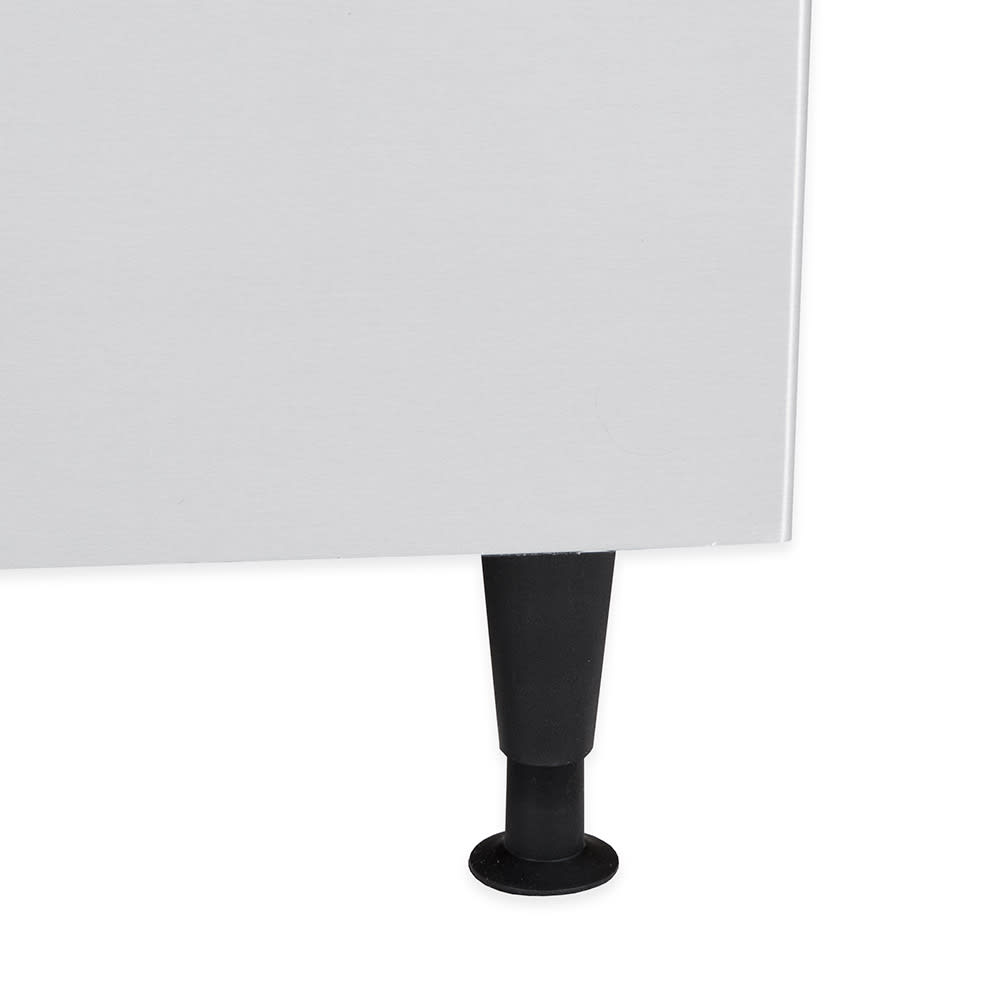

C0530SA-1 Ice Maker: Prodigy Plus Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 525 lb/24 hours at 70°/50° (380 lb AHRI certified at 90°/70°), stainless steel finish, small cube size, 115v/60/1-ph, 15.2 amps, cULus, NSF, CE; B530P Ice Bin: Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, polyethylene liner, rotocast plastic construction, includes 6″ legs, NSF
*Image may not depict product color, inclusions or accessories.
