Description
Scotsman C0530MA-1/ID200B-1/KBT44 Description
The Scotsman C0530MA-1/ID200B-1/KBT44 Prodigy Plus ice machine’s air filter is located on the front to provide better breathability than side- or rear-located filters. Its dispenser can make 525 pounds of ice daily and has an air-cooled condenser. AutoAlert lights notify the user when descaling, sanitizing, and other maintenance is necessary, and a QR code on the removable front panel connects the user to technical service and warranty information. In order to create sanitary ice, a WaterSense feature monitors and adjusts the quality of incoming water. The Harvest Assist feature moves ice into the bin using a probe and hot gas.
The Scotsman C0530MA-1/ID200B-1/KBT44 ice maker with dispenser has a 200-pound ice storage capacity. Its heavy-duty agitator minimizes ice jams, and its off-cycle agitation can be adjusted to accommodate different ice sizes and conditions. It has an insulated drip tray that collects excess ice while its cup-activated push chute supports self-service applications. A KBT44 installation kit is provided to securely fit the dispenser onto the machine.
Ice Maker Details
- Part of the Prodigy Plus series
- 525-lb. daily ice production capacity
- 380-lb. AHRI-certified daily ice production capacity
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- Air-cooled condenser uses R404A refrigerant
- Front-located air filter provides efficient airflow
- Operating status is displayed by AutoAlert indicator lights
- QR code instantly provides service and warranty information
- 1-touch cleaning eliminates the need for constant monitoring
- Antimicrobial protection slows bacteria growth
- Front panel can be removed for internal component access
- WaterSense feature improves water quality to reduce scale buildup
- Harvest Assist moves ice into the bin with a probe and hot gas
- Required incoming water pressure: 20-80 PSI
- Required incoming water temperature: 40-100 degrees F
- Required ambient air temperature: 50-100 degrees F
- 7,900 BTU
Ice Dispenser Details
- 200-lb. storage capacity
- Ice jams and bridging are reduced by a durable agitator
- Off-cycle agitation fits various ice sizes
- Drip tray is insulated to minimize condensation
- Cups activate the push chute
- KBT44 adapter kit joins the machine to the dispenser
Dimensions & Utilities
- Ice Maker
- 30.7 in. W x 24 in. D x 23 in. H
- 15.2 A, 5.8 kW
- 115 V/60 Hz/1 ph
- Ice Dispenser
- 30.25 in. W x 30.4375 in. D x 39.625 in. H
- 115 V/60 Hz/1 ph
From The Manufacturer
C0530MA-1 Ice Maker: Prodigy Plus Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 525 lb/24 hours at 70°/50° (380 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 115v/60/1-ph, 15.2 amps, cULus, NSF, CE; ID200B-1 Ice Dispenser: Ice Dispenser, counter model, 200 lb capacity, designed for cube-type ice, stainless steel exterior, cup activated, 115v/60/1-ph, NSF, cULus; KBT44 Ice Bin Top: Bin Top, for use with 30″ cubers, flakers & nugget makers on ID200, ID250 dispensers

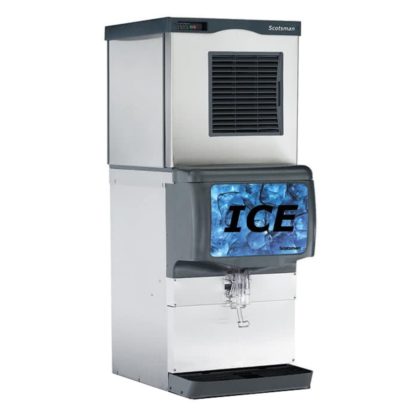

*Image may not depict product color, inclusions or accessories.
