Description

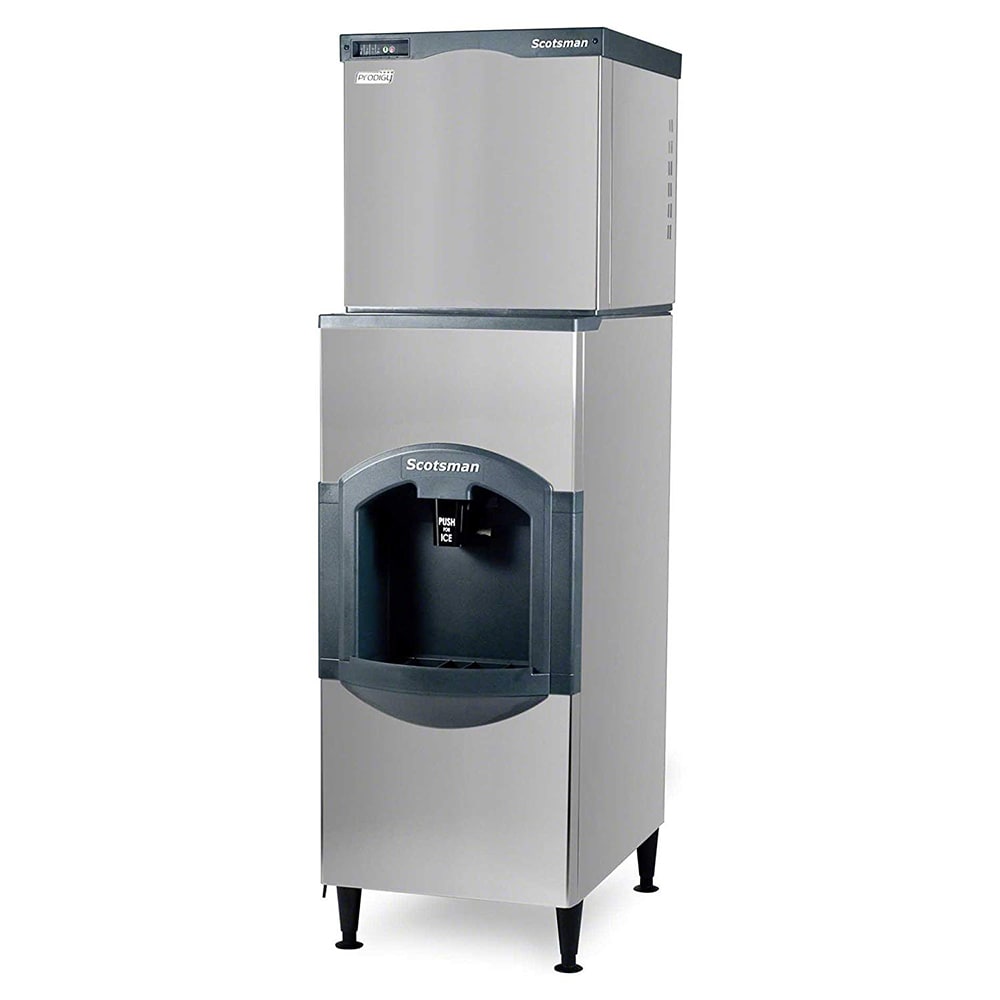

Scotsman C0530MA-1/HD30B-1 Description
The Scotsman C0530MA-1/HD30B-1 Prodigy Plus ice machine has an air-cooled condenser and can make 525 pounds of ice daily. Its air filter is located on the front, providing better airflow and breathability than a filter located on the back or side. To keep the operators informed, the AutoAlert lights display the unit’s status and indicate when maintenance is needed. A Harvest Assist feature pushes ice into the bin to ensure a constant supply, and water quality is adjusted by the WaterSense feature to minimize scale buildup. To begin the cleaning process, the operator only needs to push a button. This machine is protected with antimicrobial technology to keep ice sanitary between cleanings.
The Scotsman C0530MA-1/HD30B-1 iceValet ice dispenser can store 180 pounds of ice and has a metallic cabinet that resists corrosion and scratches. It is insulated with polyurethane foam, which adds strength and preserves ice for hours. A push chute is built in for quick ice dispensing in self-serve applications. Its wide dispensing area can accommodate different sizes of ice buckets. When accessing internal components for maintenance, the top panel can be removed quickly.
Ice Maker Details
- Part of the Prodigy Plus series
- Air-cooled condenser
- 525-lb. daily ice production capacity
- 380-lb. AHRI-certified daily ice production capacity
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- AutoAlert lights warn operators when maintenance is needed
- QR code provides instant access to warranty and technical service information
- Front panel can be removed to access internal components
- Front air filter supports efficient airflow
- Cleaning starts with the push of a button
- Harvest Assist guides ice into the bin with a probe and hot gas
- Scale buildup is reduced due to the WaterSense feature
- Antimicrobial agent is molded into the unit to hold ice in clean conditions
- R404A refrigerant
- 7,900 BTU
- Required incoming water pressure: 20-80 PSI
- Required incoming water temperature: 40-100 degrees F
- Required ambient air temperature: 50-100 degrees F
Ice Dispenser Details
- Part of the iceValet series
- 180-lb. storage capacity
- Push chute for efficient ice dispensing
- Dispensing area is wide enough to fit various bucket sizes
- Metallic cabinet resists corrosion
- Polyurethane insulation sits between the walls for structure and temperature retention
- Top panel can be removed for cleaning and servicing internal components
Dimensions & Utilities
- Ice Maker
- 30.7 in. W x 24 in. D x 23 in. H
- 15.2 A, 5.8 kW
- 115 V/60 Hz/1 ph
- Ice Dispenser
- 30 in. W x 33.5 in. D x 53.25 in. H
- 15 A
- 115 V/60 Hz/1 ph, 11-ft. cord
From The Manufacturer
C0530MA-1 Ice Maker: Prodigy Plus Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 525 lb/24 hours at 70°/50° (380 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 115v/60/1-ph, 15.2 amps, cULus, NSF, CE; HD30B-1 Ice Dispenser: iceValet Hotel/Motel Ice Dispenser, floor model, push dispensing, 180 lb storage capacity, designed for 30″ wide top mount cube-type ice makers, stainless front & sides, includes 6″ legs, 115v/60/1-ph, 2.1 amps, NSF, cULus
*Image may not depict product color, inclusions or accessories.
