Description
Scotsman C0530MA-1/B530S

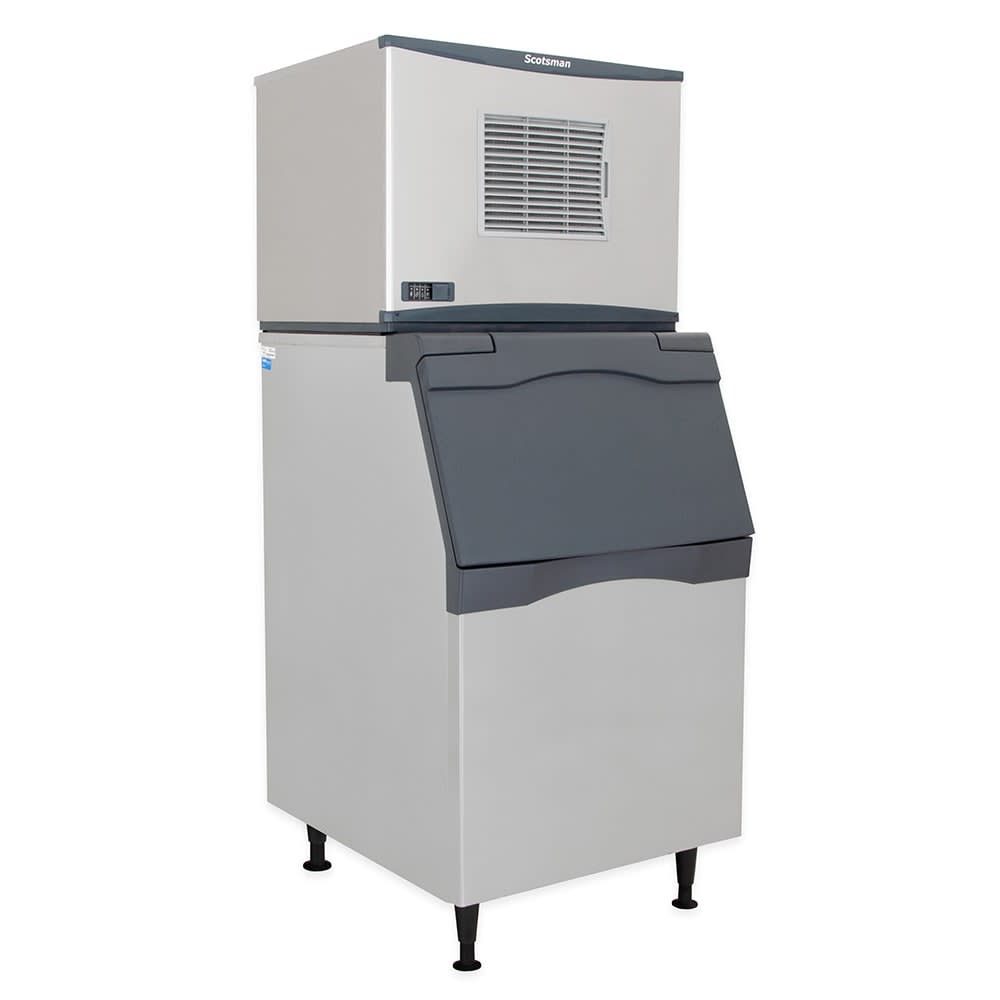

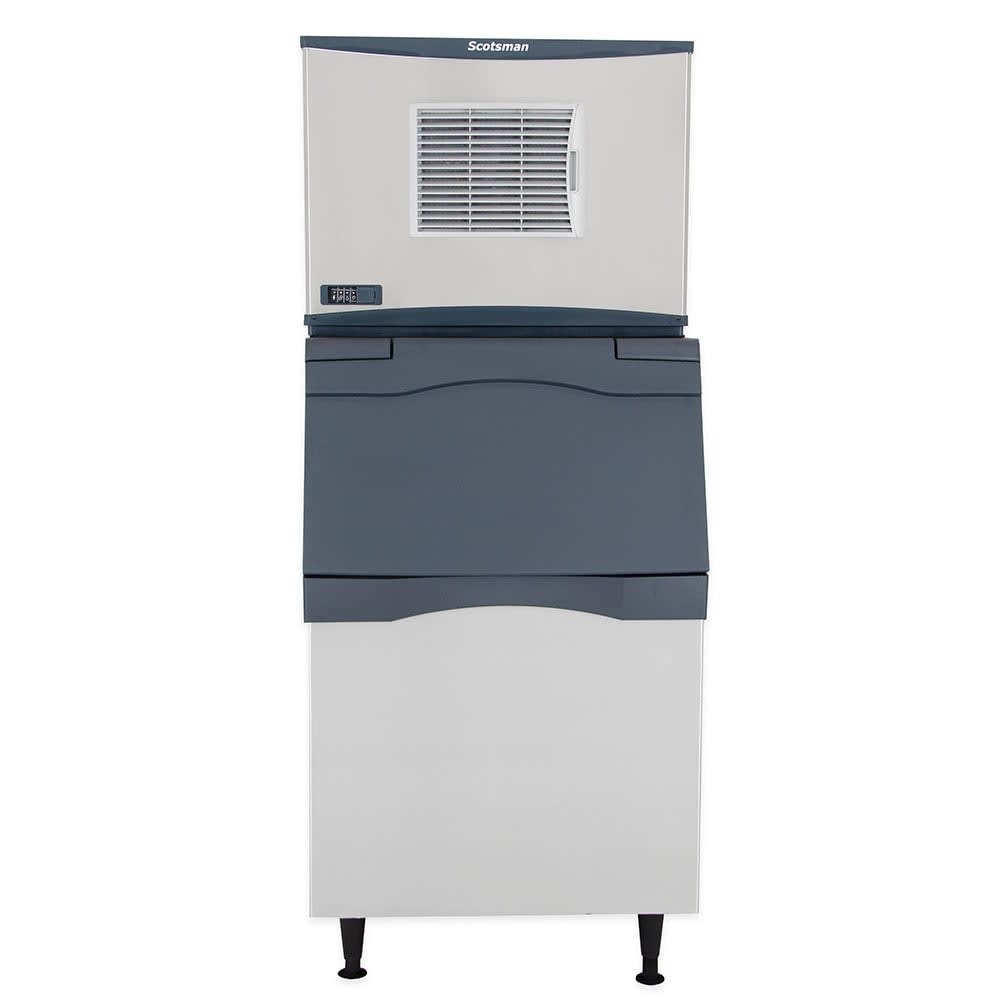

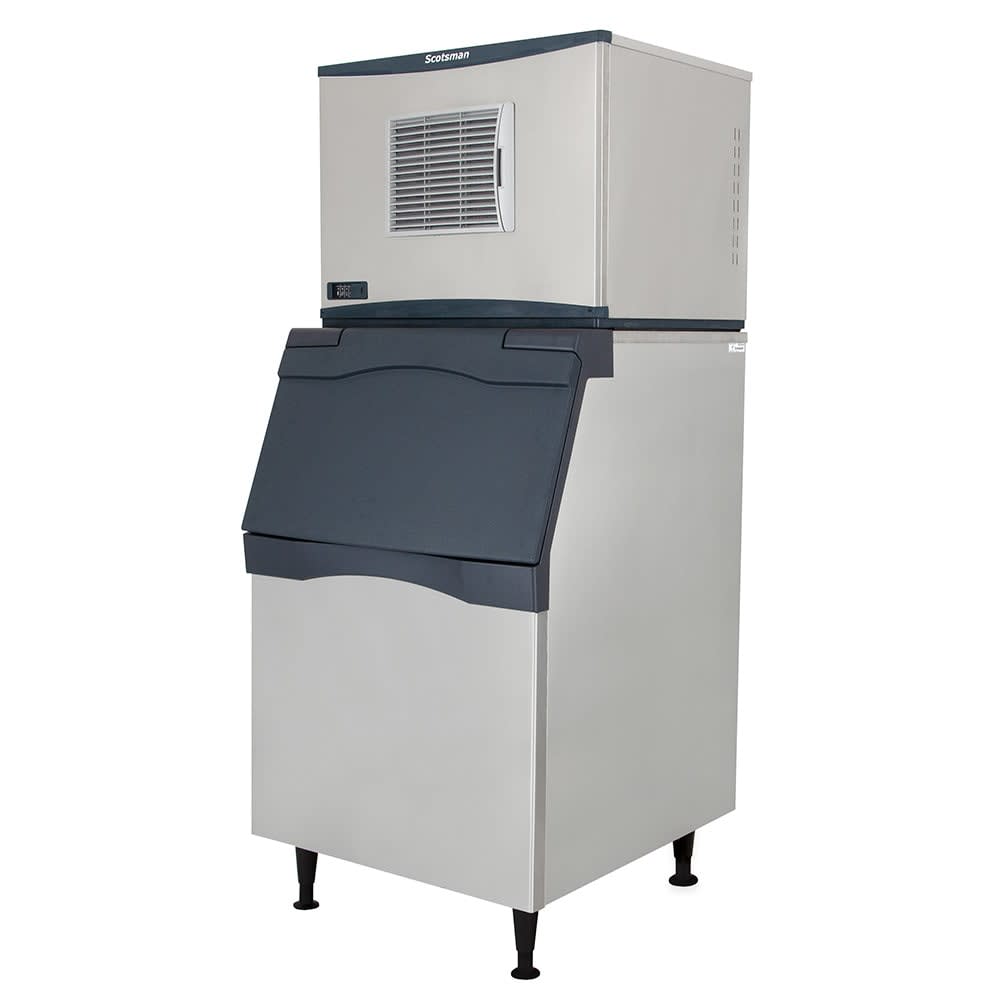

Since its stainless steel construction has a metallic finish, the Scotsman C0530MA-1/B530S Prodigy Plus ice maker and bin resists corrosion, scratches, and dents. It can store 536 pounds of ice and has polyurethane foam insulation that retains cold air to slow melting. Its interior is made of polyethylene to resist scuffs from its scoop, which can be stored in an integral holder. For flexible installation, this unit has a recessed drain fitting.
The Scotsman C0530MA-1/B530S ice machine has an air-cooled condenser with a front-located air filter that provides higher breathability than a side- or rear-located filter. It can make 525 pounds of ice every 24 hours, and its Harvest Assist feature pushes ice into the bin for a constant supply. Users are informed of the operating status with AutoAlert indicator lights. WaterSense purge control analyzes the incoming water quality and adjusts it for sanitation. A built-in antimicrobial agent guards the ice maker between cleanings and keeps ice free from contaminants.
Ice Machine Details
- Part of the Prodigy Plus series
- 525-lb. daily ice production capacity
- 380-lb. AHRI-certified daily ice production capacity
- Stainless steel construction
- Air-cooled condenser
- R404A refrigerant
- AutoAlert lights track sanitizing, descaling, and other maintenance needs
- Front-located QR code provides access to technical service and warranty information
- Ice is guided into the bin by the Harvest Assist feature
- WaterSense measures water quality to produce clean ice
- Unit is protected between cleanings with built-in antimicrobial
- One-touch cleaning lessens the need for monitoring
- Air filter is placed on the front for added breathability and efficiency
- Front panel can be removed to service internal components
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- 7,900 BTU
- Required ambient air temperature: 50-100 degrees F
- Required incoming water temperature: 40-100 degrees F
- Required incoming water pressure: 20-80 PSI
Ice Bin Details
- 536-lb. storage capacity
- Corrosion-resistant metallic finish
- Polyurethane insulation is foamed between the walls for support
- Polyethylene interior ensures ice is clean
- Built-in holder with a scoop

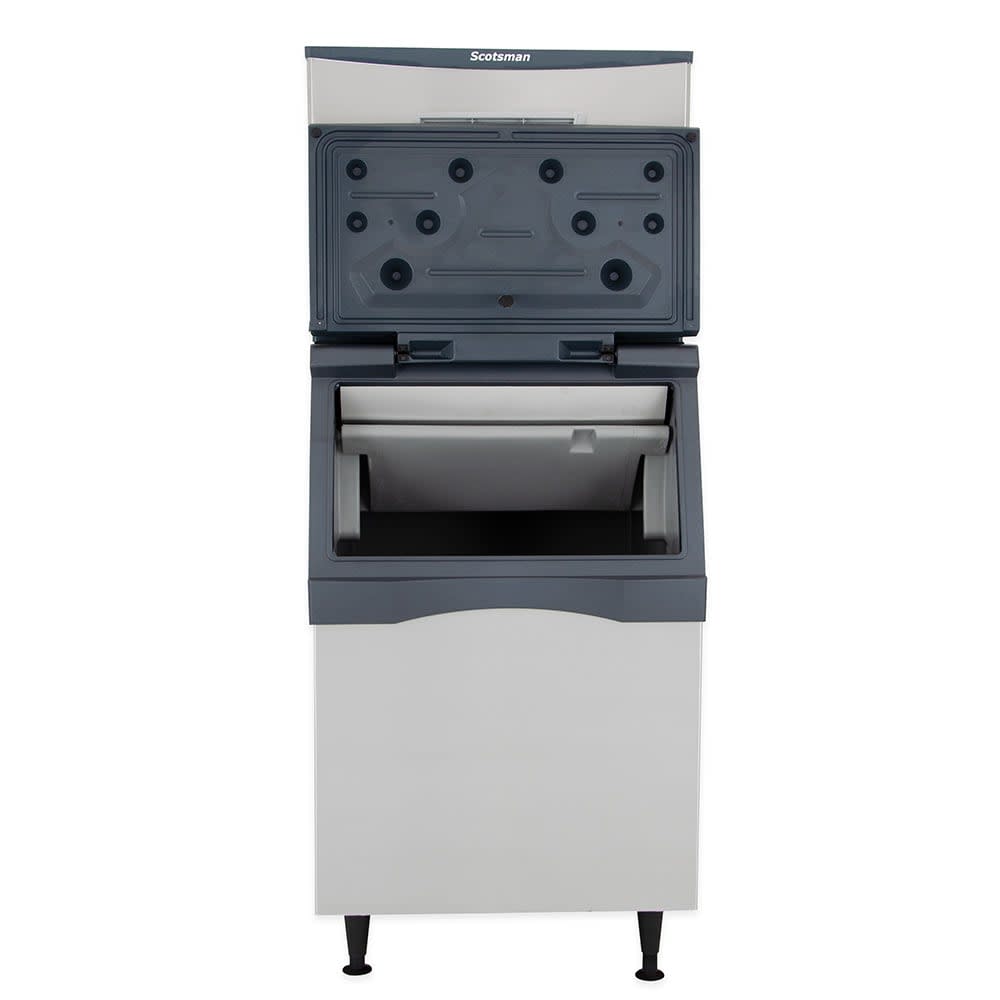

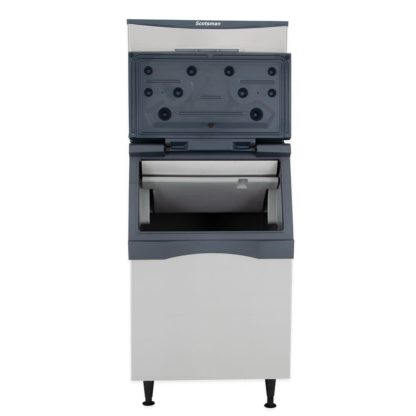

- Spring-loaded door with hidden hinges for effortless opening and closing
- Baffle is removable for cleaning
- Recessed drain fitting supports flexible installation
Dimensions & Utilities
- Ice Maker
- 30.7 in. W x 24 in. D x 23 in. H
- 15.2 A, 5.8 kW
- 115 V/60 Hz/1 ph
- Ice Bin
- 30.5 in. W x 34 in. D x 50 in. H
From The Manufacturer
C0530MA-1 Ice Maker: Prodigy Plus Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 525 lb/24 hours at 70°/50° (380 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 115v/60/1-ph, 15.2 amps, cULus, NSF, CE; B530S Ice Bin: Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, polyethylene liner, metallic finish exterior, includes 6″ legs, NSF
*Image may not depict product color, inclusions or accessories.
