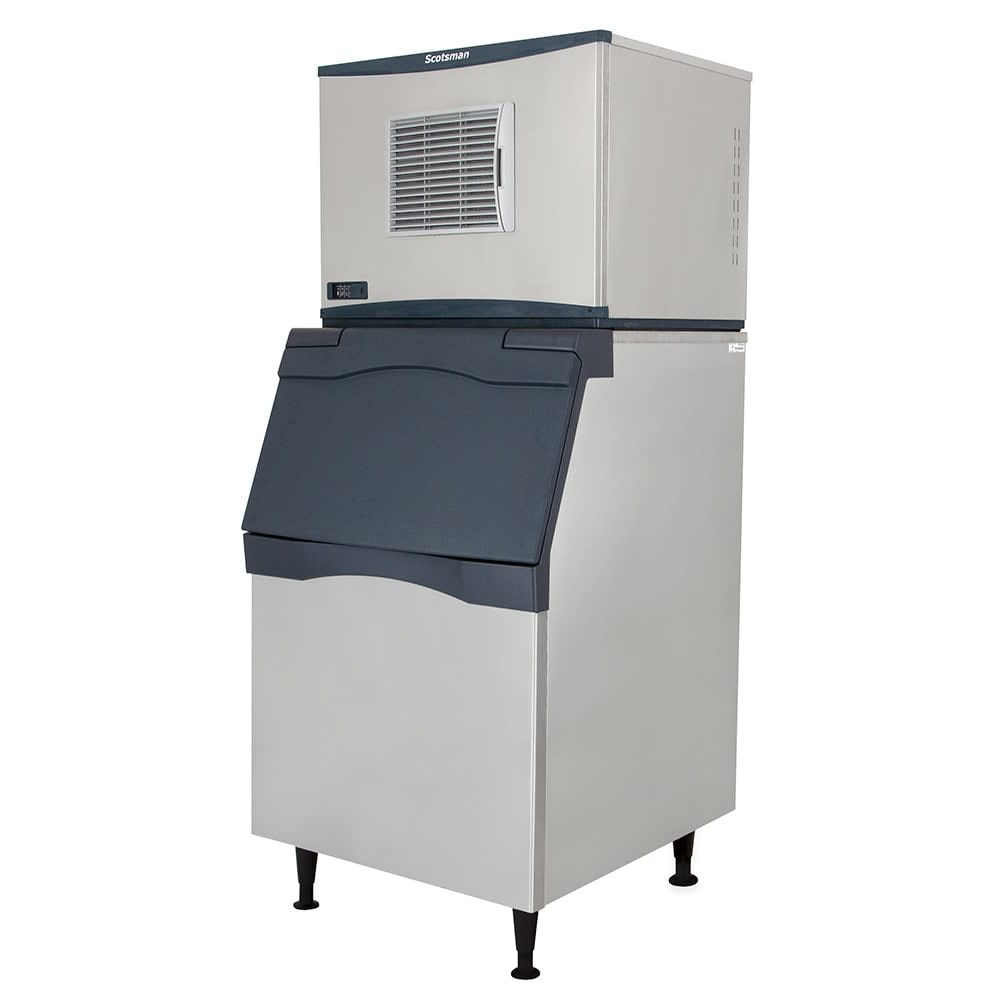

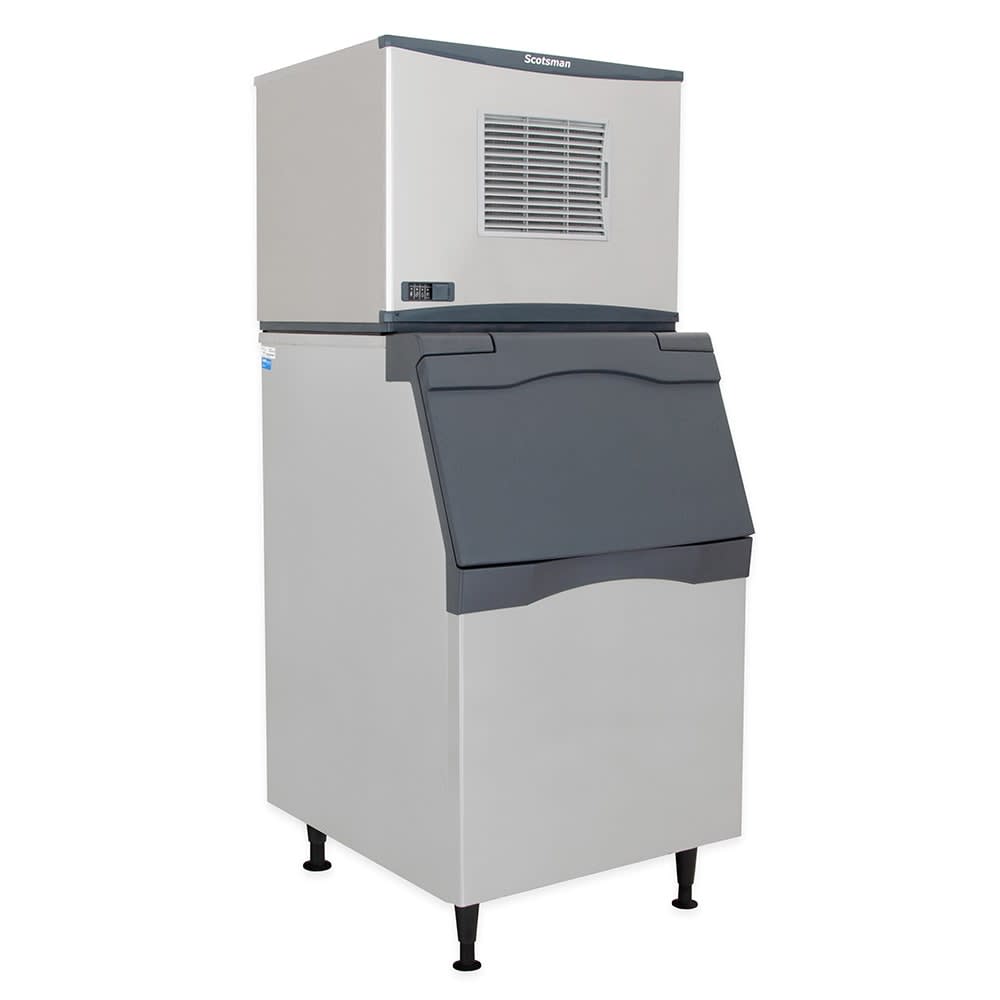

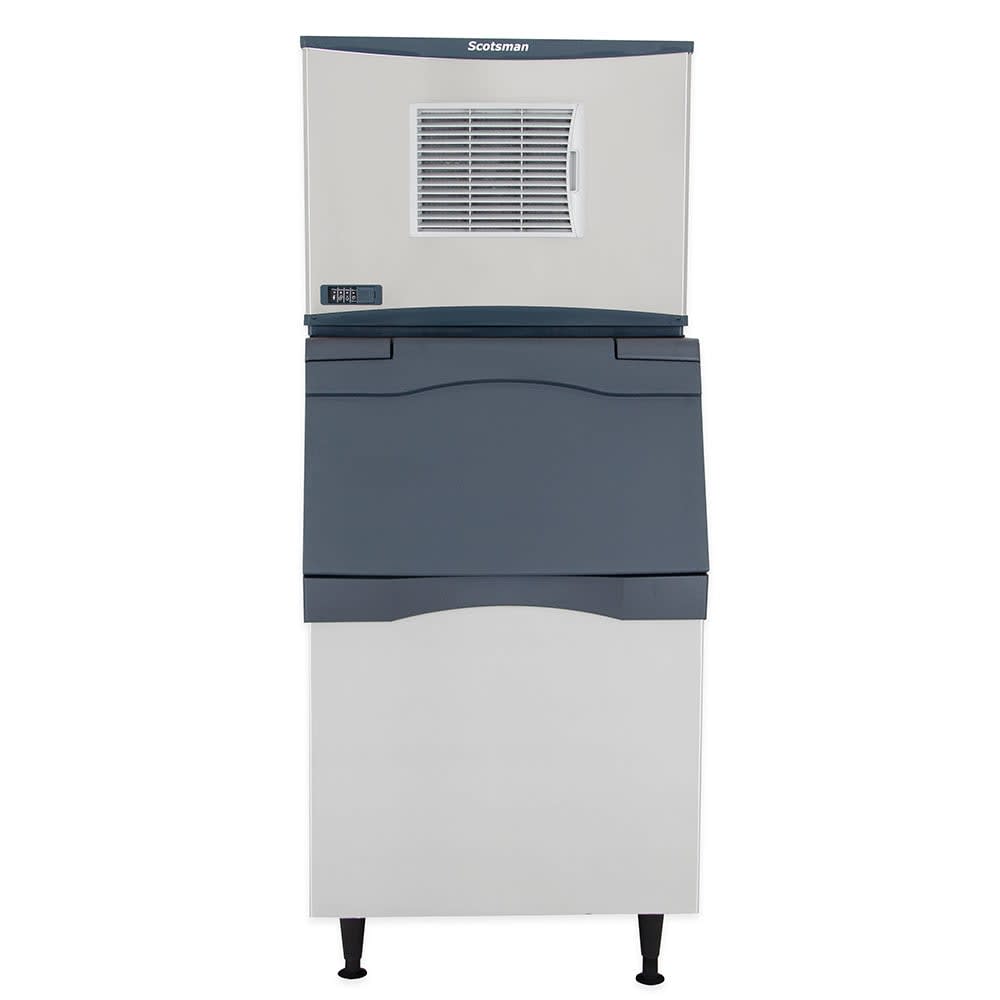

Scotsman C0530MA-1/B530P 525 lb Full Cube Ice Maker w/ Bin – 536 lb Storage, Air Cooled, 115v

The Scotsman C0530MA-1/B530P Prodigy Plus ice machine and bin has a stainless steel finish over a corrosion-resistant, rotocast plastic construction. With a 536-pound storage capacity and polyurethane insulation, ice is kept from melting in the polyethylene interior. A scoop is included with a built-in scoop holder to keep ice sanitary, and a recessed drain fitting creates flexibility when installing.

For uninterrupted air flow, the Scotsman C0530MA-1/B530P ice machine with bin has an air filter located on its front. It can make 525 pounds of ice daily and has an air-cooled condenser that uses R404A refrigerant. AutoAlert lights activate when maintenance and service is needed, and a QR code on the front of the unit can be scanned for technical and warranty information. Its WaterSense feature monitors water quality to reduce scale buildup. To maintain a constant supply of ice, Harvest Assist technology uses hot gas and a probe to guide the ice into the bin.

Ice Machine Details

• Part of the Prodigy Plus series
• 525-lb. daily ice production
• 380-lb. AHRI-certified daily ice production
• Stainless steel finish
• Air-cooled condenser
• R404A refrigerant
• AutoAlert indicator lights display the operating status
• QR code provides technical service and warranty information
• 1-touch cleaning eliminates the need for monitoring
• Front-located air filter enables installation against walls and other equipment
• Removable front panel is self-aligned
• WaterSense feature provides sanitary ice
• Harvest Assist system uses a probe and gas to guide ice into the bin
• Antimicrobial technology keeps the unit sanitary between cleanings
• Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
• 7,900 BTU
• Required incoming water temperature: 40-100 degrees F
• Required incoming water pressure: 20-80 PSI
• Required ambient air temperature: 50-100 degrees F

Ice Bin Details

• 536-lb. storage capacity
• Polyurethane foam insulation keeps ice cold
• Polyethylene interior resists scratches and dents
• Rotocast plastic construction resists rust
• Removable baffle
• Flexible installation is provided by a recessed drain fitting

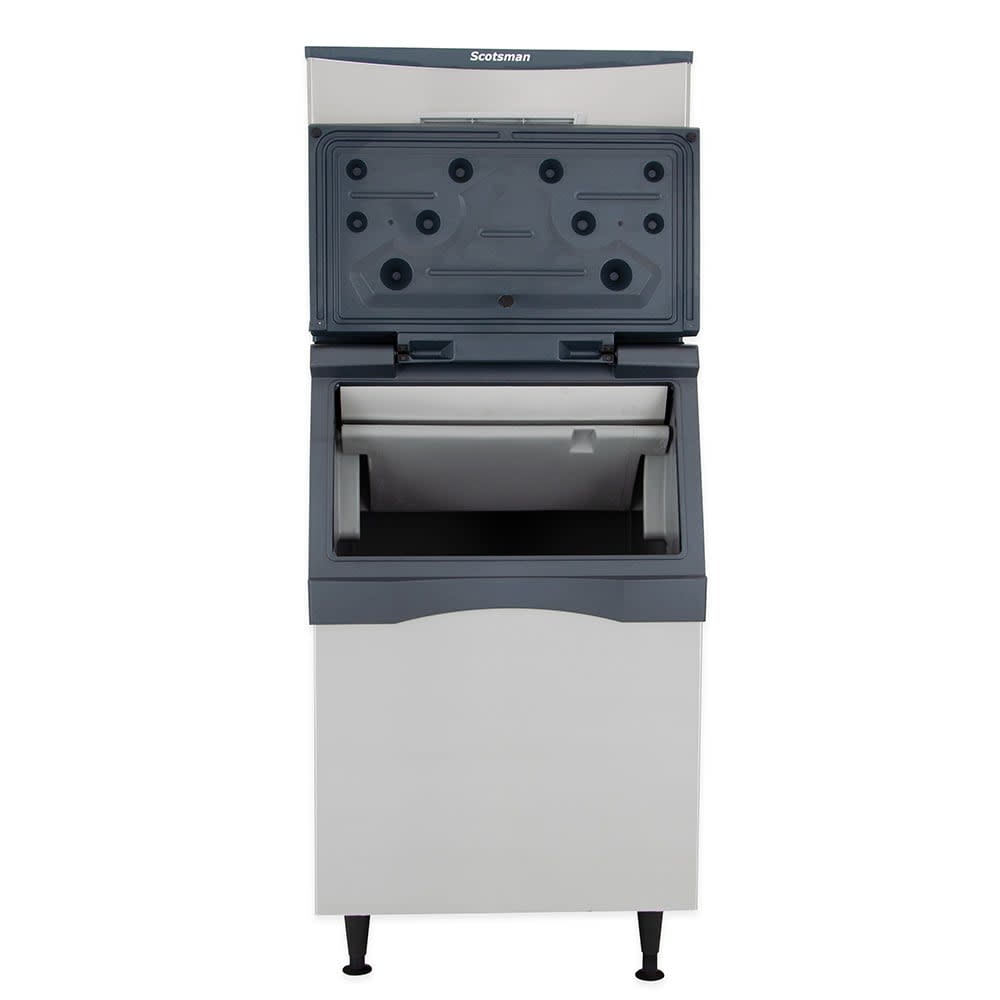

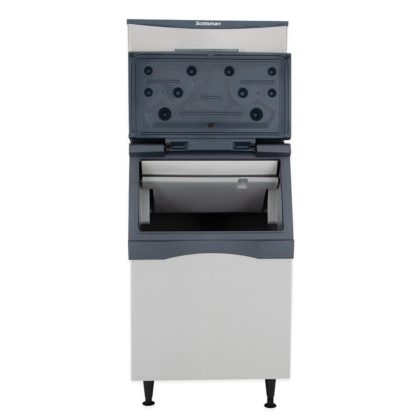

• Spring-loaded door with hidden hinges facilitates opening and closing the bin
• Ice scoop with a built-in scoop holder

Dimensions & Utilities

• Ice Maker
  • 30.7 in. W x 24 in. D x 23 in. H
  • 15.2 A, 5.8 kW
  • 115 V/60 Hz/1 ph
• Ice Bin
  • 30.5 in. W x 34 in. D x 50 in. H

From The Manufacturer

C0530MA-1 Ice Maker: Prodigy Plus Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 525 lb/24 hours at 70°/50° (380 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 115v/60/1-ph, 15.2 amps, cULus, NSF, CE; B530P Ice Bin: Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, polyethylene liner, rotocast plastic construction, includes 6″ legs, NSF

*Image may not depict product color, inclusions or accessories.
