Description

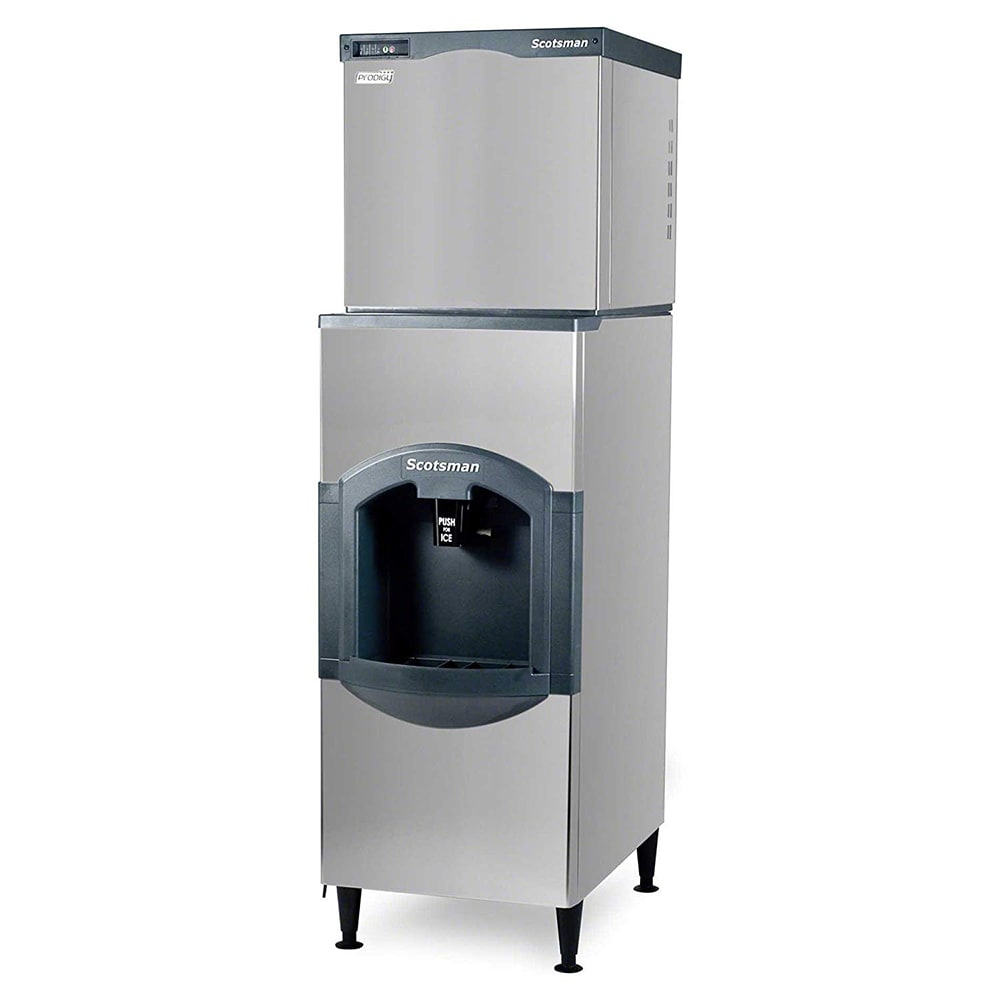

Scotsman C0522SW-1/HD22B-1
Being a water-cooled unit, the Scotsman C0522SW-1/HD22B-1 ice maker with dispenser uses R-404A refrigerant. To ensure fresh and tasty ice, it uses WaterSense purge controls to remove any impurities. The unit cleans itself with the push of a button and is coated with AgION antimicrobial to slow the growth of bacteria. Helping employees verify its current status, the unit has AutoAlert indicating lights on the front panel.
The Scotsman C0522SW-1/HD22B-1 half-cube ice maker with dispenser holds 120 pounds of ice for use throughout the day. It dispenses with the push of a button through a chute into a bin, hotel pan, or directly into a glass. Insulated with polyurethane, it provides dependable storage to ensure ice doesn’t melt. For maintenance purposes, the air filter is located on the front of the machine and the top of the dispenser is removable for access.
Ice Maker Details
- Part of the Prodigy Plus series
- 480-lb. maximum daily ice production
- 409-lb. AHRI-certified daily ice production
- Makes small cube-style ice
- Cube size: 7/8 in. x 7/8 in. x 3/8 in.
- Water cooled
- Resilient stainless steel finish
- AgION antimicrobial slows germ growth
- Components accessed on self-aligning front panel
- Front-accessed air filter
- AutoAlert indicating lights visibly show status
- WaterSense purge controls are adjustable
- 1-touch cleaning saves time
- Harvest assist ensures ice reaches the dispenser
- QR code displays service and warranty information
- R-404A refrigerant cools the unit
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- 7,900 BTU
Ice Dispenser Details
- Part of the iceValet series
- 120-lb. application capacity
- Dispenses from a chute with the push of a button
- Removable top panel provides access for cleaning
- Deep enough to accommodate hotel ice buckets
- Chill retained with polyurethane insulation
- QR code is scannable to show information
- Metallic finish
- 6-in. legs
Dimensions & Utilities
- Ice machine: 22 in. W x 24 in. D x 23 in. H
- 11.9 A, 4.48 kW
- 115 V/60 Hz/1 ph
- Dispenser: 22 in. W x 33.5 in. D x 53.25 in. H
- 2.1 A
- 115 V/60 Hz/1 ph, 11-ft. cord with a NEMA 5-15P plug
From The Manufacturer
C0522SW-1: Prodigy Plus Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 480 lb/24 hours at 70°/50° (409 lb AHRI certified at 90°/70°), stainless steel finish, small cube size, 115v/60/1-ph, 11.9 amps, cULus, NSF, CE
HD22B-1: iceValet Hotel/Motel Ice Dispenser, floor model, push dispensing,120 lb application capacity, designed for 22″ wide top mount cube-type ice makers, stainless front & sides, includes 6″ legs, 115v/60/1-ph, 2.1 amps, NSF, cULus
*Image may not depict product color, inclusions or accessories.
