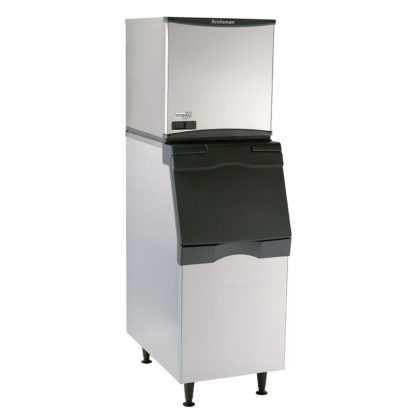

Scotsman C0522SW-1/B322S
The Scotsman C0522SW-1/B322S Prodigy Plus ice machine head and bin has a stainless steel and metallic finish. A water-cooled condenser sits inside the machine so that it can make 480 pounds of ice each day. AutoAlert lights inform the user when the unit needs maintenance, and cleaning is accomplished with the push of a button. A QR code on the front instantly connects the user to technical service and warranty information. To ensure ice is sanitary, WaterSense purge control monitors and adjusts incoming water’s quality.
The Scotsman C0522SW-1/B322S ice machine and bin has polyurethane foam insulation that retains temperatures and keeps ice cold. Equipped with a scoop and a built-in holder, the bin can store 370 pounds of ice. Its interior is made of polyethylene, which cleans quickly and is scratch resistant. To aid in effortless opening, the spring-loaded door has hidden hinges.
Ice Machine Details
- Part of the Prodigy Plus series
- 480-lb. daily ice production capacity
- 409-lb. AHRI-certified daily ice production capacity
- Stainless steel finish
- Water-cooled condensing unit
- Uses R404A refrigerant
- AutoAlert lights notify the user when sanitizing, descaling, and other maintenance is needed
- 1-touch cleaning process
- User can access warranty and technical service information with the QR code
- Removable, self-aligning front panel
- WaterSense feature monitors water quality to ensure sanitary ice
- Harvest Assist uses hot gas and a probe to push ice into the bin
- Antimicrobial agent guards the unit between cleanings
- Half-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- Required incoming water pressure: 20-80 PSI
- Required incoming water temperature: 40-100 degrees F
- Required ambient air temperature: 50-100 degrees F
- 7,900 BTU
Ice Bin Details
- 370-lb. ice storage capacity
- Corrosion-resistant metallic finish
- Polyurethane foam insulation maintains temperatures
- Polyethylene interior resists scuffs and scratches
- Door is spring loaded with hidden hinges for convenient opening
- Baffle can be removed for cleaning
- Recessed drain fitting facilitates installation
- Built-in scoop holder includes a scoop
Product Features
Dimensions & Utilities
- Ice Maker
- 22.67 in. W x 25.15 in. D x 23 in. H
- 11.9 A, 4.48 kW
- 115 V/60 Hz/1 ph
- Ice Bin
- 22.5 in. W x 34 in. D x 50 in. H
From The Manufacturer
C0522SW-1 Ice Maker: Prodigy Plus Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 480 lb/24 hours at 70°/50° (409 lb AHRI certified at 90°/70°), stainless steel finish, small cube size, 115v/60/1-ph, 11.9 amps, cULus, NSF, CE; B322S Ice Bin: Ice Bin, top-hinged front-opening door, 370 lb application capacity, for top-mounted ice maker, polyethylene liner, metallic finish exterior, includes 6″ legs, NSF
*Image may not depict product color, inclusions or accessories.
