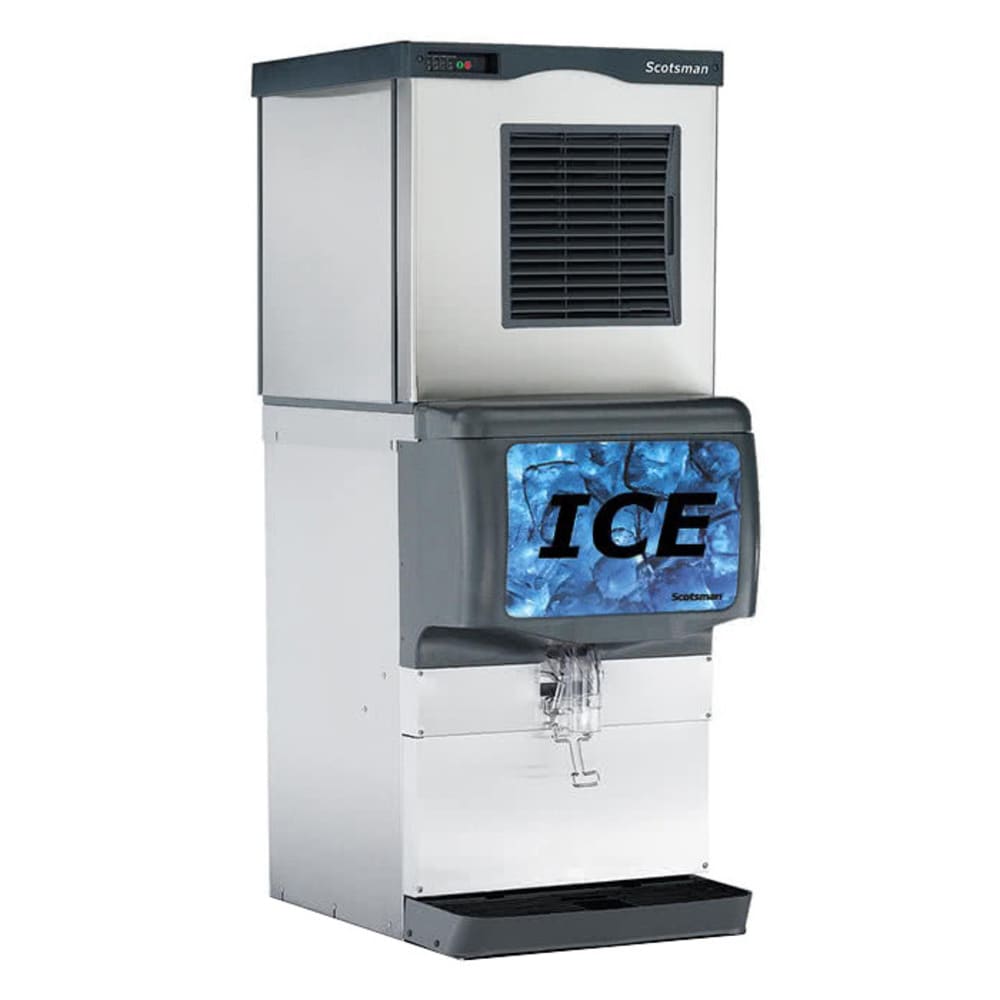

Scotsman C0522SA-1/ID150B-1/KBT42 475 lb Half Cube Ice Maker w/ Countertop Ice Dispenser – 150 lb Storage, Cup Fill, 115v

The Scotsman C0522SA-1/ID150B-1/KBT42 Prodigy Plus ice machine and dispenser has a stainless steel finish with plastic front and top panels. It can make 475 pounds of ice in 24 hours with its air-cooled condensing unit. A front-located air filter creates efficient air flow and enables installation against walls and other equipment. To produce sanitary ice, WaterSense purge control monitors and adjusts the quality of incoming water. The unit’s Harvest Assist feature uses a probe and hot gas to push ice into the bin, and AutoAlert lights notify the user when the unit needs maintenance and servicing.

The Scotsman C0522SA-1/ID150B-1/KBT42 ice machine and ice dispenser offers self-serve, cup-activated dispensing. With a kit that properly fits the ice machine onto the dispenser, it can store 150 pounds of ice. Its durable agitator motor reduces ice jamming and has a long service life. To support various ice forms and ambient conditions, its off-cycle agitation can be adjusted.

Ice Machine Details

• Part of the Prodigy Plus series
• 475-lb. daily ice production capacity
• 340-lb. AHRI-certified daily ice production capacity
• Air-cooled condensing unit
• R404A refrigerant
• Stainless steel finish resists scratches and dents
• Front-located air filter is more breathable than a side- or rear-located filter
• WaterSense ensures sanitary ice by adjusting water quality
• Harvest Assist uses hot gas and a probe to guide ice into the bin
• AutoAlert lights inform the user of the unit’s operating status
• Self-aligning front panel is removable for servicing
• 1-touch cleaning eliminates the need for constant monitoring
• Unit remains sanitary with built-in antimicrobial technology
• QR code provides warranty and technical service information
• Half-cube ice size: 0.875 in. x 0.875 in. x 0.375 in.
• Required incoming water pressure: 20-80 PSI
• Required incoming water temperature: 40-100 degrees F
• Required ambient air temperature: 50-100 degrees F
• 7,900 BTU

Ice Dispenser Details

• 150-lb. ice storage capacity
• Stainless steel finish with plastic front and top panels
• Heavy-duty agitator motor prolongs the service life and minimizes ice jams
• Off-cycle agitation can accommodate different ice forms and conditions
• Drip tray collects loose ice
• Supports self-serve dispensing
• KBT42 adapter kit is included to fit the ice machine to the dispenser

Dimensions & Utilities

• Ice Maker
  • 22.67 in. W x 25.15 in. D x 23 in. H
  • 13.5 A, 5.94 kW
  • 115 V/60 Hz/1 ph
• Ice Dispenser
  • 15 A
  • 115 V/60 Hz/1 ph, 11-ft. cord with plug
  • 22 in. W x 30 in. D x 39.63 in. H

From The Manufacturer

C0522SA-1 Ice Maker: Prodigy Plus Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 475 lb/24 hours at 70°/50° (340 lb AHRI certified at 90°/70°), stainless steel finish, small cube size, 115v/60/1-ph, 13.5 amps, cULus, NSF, CE; ID150B-1 Ice Dispenser: Ice Dispenser, counter model, 150 lb capacity, designed for cube-type ice, stainless steel exterior, cup activated, 115v/60/1-ph, NSF, cULus; KBT42 Ice Bin Top: Bin Top, for use with 22″ cuber or 21″ nugget maker (except EH222) on ID150 dispensers

*Image may not depict product color, inclusions or accessories.
