Scotsman C0522SA-1/HD22B-1 475 lb Half Cube Ice Maker w/ Ice Dispenser – 120 lb Storage, Bucket Fill, 115v

The Scotsman C0522SA-1/HD22B-1 Prodigy Plus half-cube ice maker and iceValet ice dispenser has a metallic cabinet with a stainless steel finish. With its air-cooled condensing unit, the ice maker can produce 475 pounds of ice daily. AutoAlert lights notify the user when the unit needs descaling, sanitizing, and other service needs. To access the internal components, the front panel can be removed, and the cleaning process can be started with the push of a button. A WaterSense feature adjusts the water quality to minimize scale buildup, and a molded-in antimicrobial agent keeps the unit sanitary between cleanings.

The Scotsman C0522SA-1/HD22B-1 half-cube ice maker and dispenser has a 120-pound ice storage capacity. Its top panel can be removed to access the bin while the ice head remains in place. The dispensing area is wide enough to accommodate various ice bucket sizes, and polyurethane foam insulation keeps the ice cold for hours. 6-inch legs raise the unit off the floor to aid in cleaning underneath.

Ice Maker Details

• Part of the Prodigy Plus series
• 475-lb. daily ice production capacity
• 340-lb. AHRI-certified daily ice production
• Air-cooled condenser
• Uses R404A refrigerant
• Stainless steel finish
• AutoAlert lights indicate when the unit needs sanitizing, descaling, and other maintenance needs
• QR code connects the user to warranty and service information
• Cleaning process runs with the touch of a button
• Air filter on the front provides better breathability than a rear or side filter
• Front panel can be removed to access internal components
• WaterSense purge control monitors water quality to reduce scale buildup
• Harvest Assist guides ice into the bin
• Antimicrobial agent protects the unit between cleanings
• Half-cube ice size: 0.875 in. x 0.875 in. x 0.375 in.
• Required incoming water pressure: 20-80 PSI
• Required ambient water temperature: 40-100 degrees F
• Required ambient air temperature: 50-100 degrees F
• 7,900 BTU

Ice Dispenser Details

• Part of the iceValet series
• 120-lb. ice storage capacity
• Metallic cabinet resists corrosion
• Push chute enables ice dispensing
• Top panel is removable for bin access
• Large dispensing area fits nearly every bucket size
• 6-in. legs elevate the unit
• Polyurethane foam between the walls retains temperatures
• Required ambient air temperature: 50-100 degrees F
• Required ambient water temperature: 40-100 degrees F
• Required incoming water pressure: 20-80 PSI

Dimensions & Utilities

• Ice Maker
  • 22.67 in. W x 25.15 in. D x 23 in. H
  • 13.5 A, 5.94 kW
  • 115 V/60 Hz/1 ph
• Ice Dispenser
  • Ice fill station: 13.5 in. W x 8.5 in. D x 8.75 in. H
  • Overall: 22 in. W x 33.5 in. D x 53.25 in. H
  • 15 A
  • 115 V/60 Hz/1 ph, 11-ft. cord with plug

From The Manufacturer

C0522SA-1 Ice Maker: Prodigy Plus Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 475 lb/24 hours at 70°/50° (340 lb AHRI certified at 90°/70°), stainless steel finish, small cube size, 115v/60/1-ph, 13.5 amps, cULus, NSF, CE; HD22B-1 Ice Dispenser: iceValet Hotel/Motel Ice Dispenser, floor model, push dispensing,120 lb application capacity, designed for 22″ wide top mount cube-type ice makers, stainless front & sides, includes 6″ legs, 115v/60/1-ph, 2.1 amps, NSF, cULus

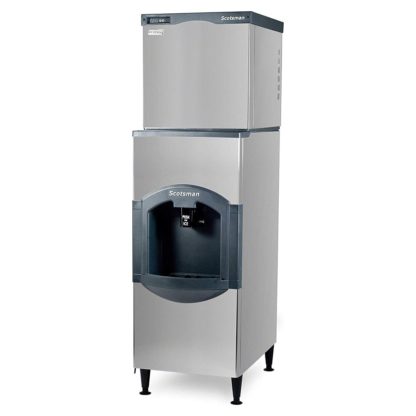

*Image may not depict product color, inclusions or accessories.
