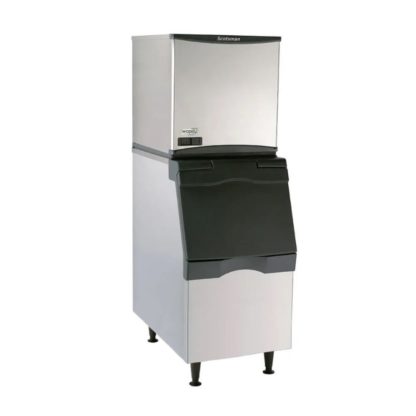

Scotsman C0522SA-1/B530S 475 lb Half Cube Ice Maker w/ Bin – 536 lb Storage, Air Cooled, 115v

The Scotsman C0522SA-1/B530S ice machine and bin can make 475 pounds of half-cube ice in a day, which can be used in bags, sodas, or other drinks. Its small shape enables plenty of ice to fit in a glass for quick cooling, and cubes get their shape as they freeze in the evaporator grid. After freezing, the plate is warmed enough to loosen cubes, and a Harvest Assist probe forces them into a bin below.

With a 536-pound storage capacity, this Scotsman C0522SA-1/B530S ice maker and bin can keep a large quantity of ice ready to serve. To reduce melting, its bin is insulated, and for quick interior access, it is spring loaded. For cleanliness, the ice scoop has a holder that keeps contaminants on the handle out of the ice.

This unit includes several features to ease cleaning, as the ice machine itself uses WaterSense controls to reduce limescale buildup and built-in antimicrobial agents to slow mold growth. AutoAlert lights encourage regular cleaning by showing when it is time for sanitation or descaling.

Ice Maker Details

• Part of the Prodigy Plus series
• 475-lb. maximum daily ice production
• 340-lb. AHRI-certified daily ice production
• Produces half cubes
• Cube size: ⁷/₈ in. x ⁷/₈ in. x ³/₈ in.
• Harvest Assist probe ejects cubes into bin with minimal heat
• WaterSense control detects water quality and self-adjusts to reduce scale buildup
• Antimicrobial protection molded into parts
• AutoAlert indicator lights show users when to sanitize or descale the unit
• 1-button cleaning cycle
• Removable front panel provides internal maintenance access
• QR code links users to service and warranty information
• Cools with R-404A refrigerant
• 7,900 BTU of heat transfer capacity

Insulated ice Bin Details

• 536-lb. storage capacity
• Attractive metallic finish
• Spring-loaded door opens smoothly
• Polyethylene lining eases cleaning
• Removable baffle enables thorough cleaning
• Built-in scoop holder reduces contamination risks
• Includes ice scoop

Ideal Operating Conditions

• Surrounding air temperature: 50-100 degrees F
• Incoming water temperature: 40-100 degrees F
• Incoming water pressure: 20-80 PSI

Dimensions & Utilities

• Ice machine: 22.67 in. W x 25.15 in. D x 24 in. H
• Ice bin: 30.5 in. W x 34 in. D x 50 in. H
• 13.5 A, 5.94 kW
• 115 V/60 Hz/1 ph

From The Manufacturer

Prodigy Plus Ice Maker with Bin, cube style, air-cooled, self-contained condenser, production capacity up to 475 lb/24 hours at 70°/50° (340 lb AHRI certified at 90°/70°), stainless steel finish, small cube size, 115v/60/1-ph, 13.5 amps, cULus, NSF, CE; Ice Bin with Bin Top: top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, polyethylene liner, metallic finish exterior, includes 6″ legs, NSF

*Image may not depict product color, inclusions or accessories.
