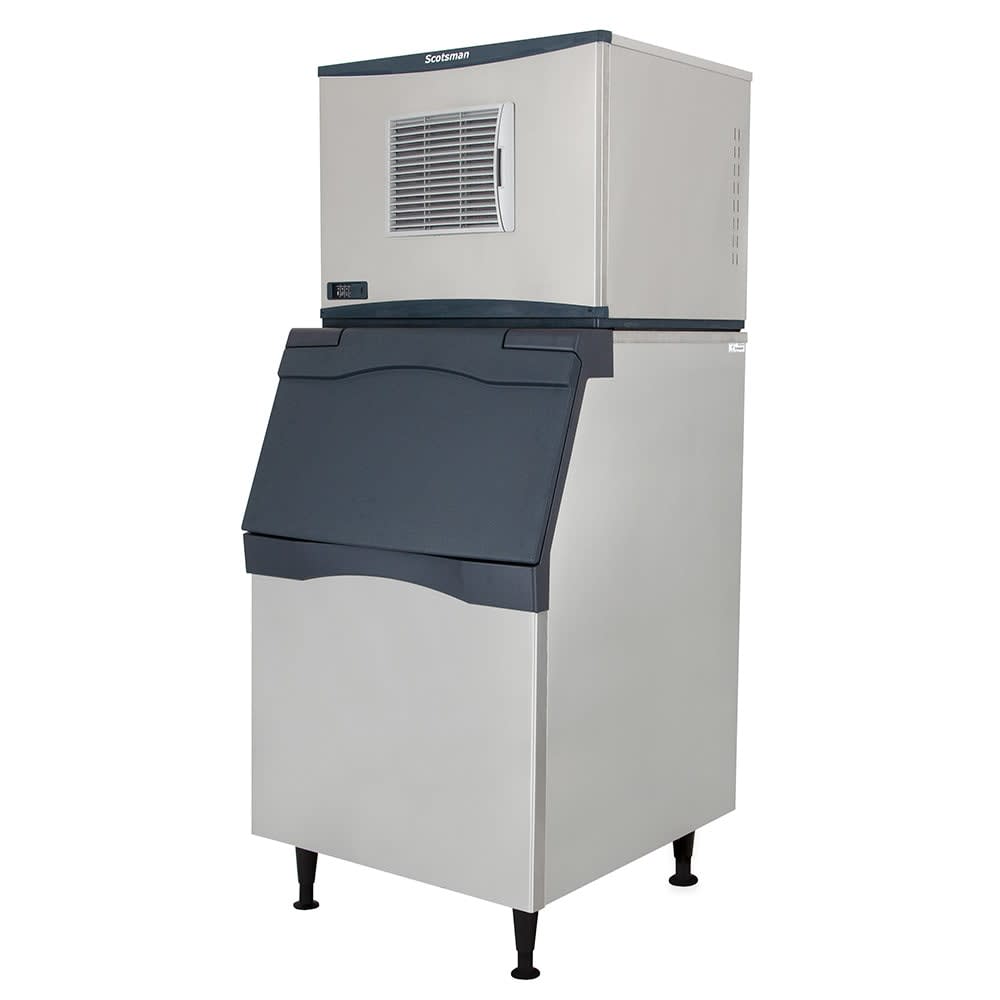

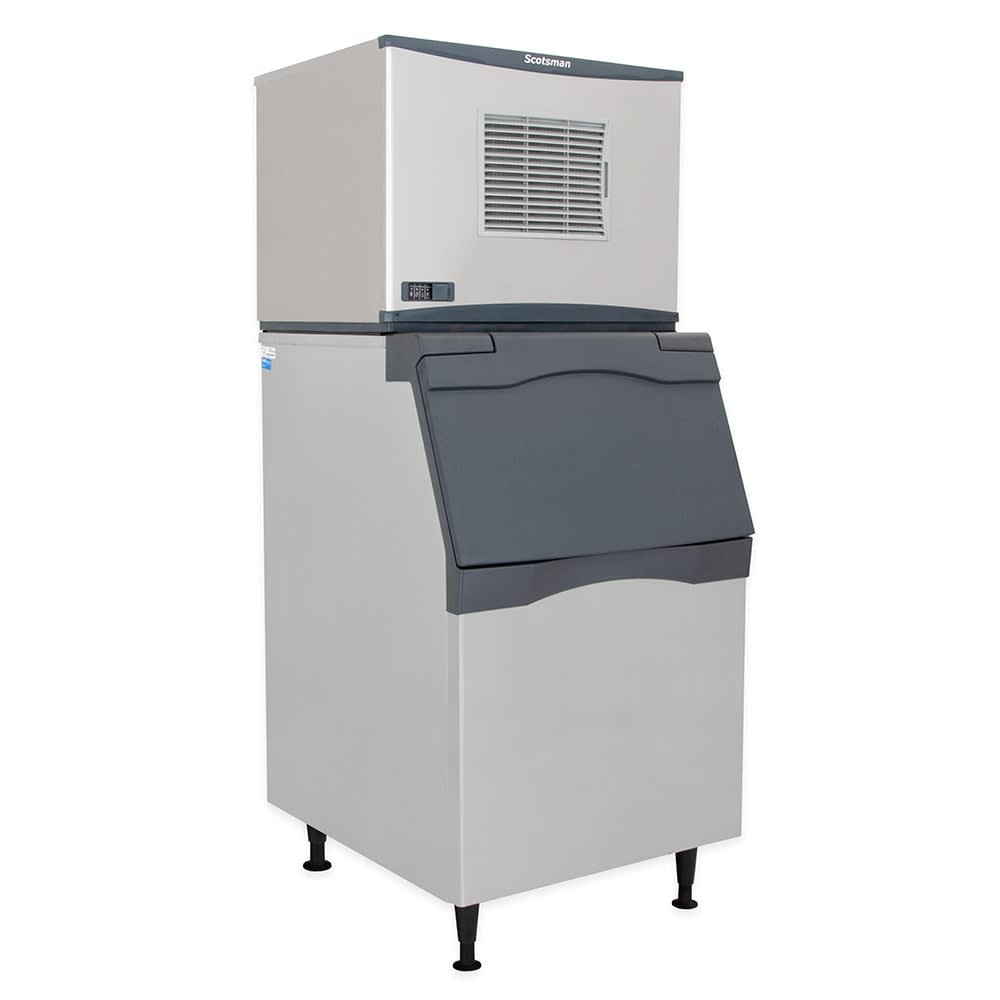

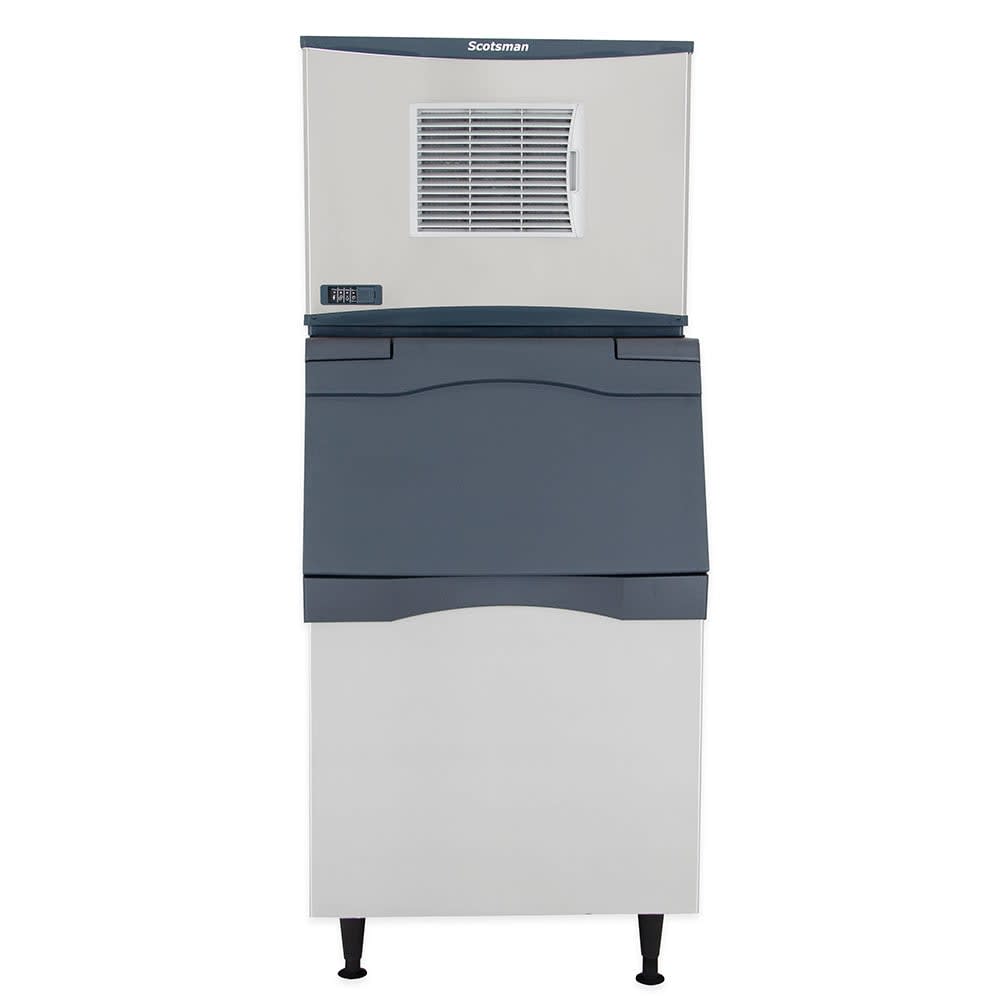

Scotsman C0522SA-1/B530P/KBT27 475 lb Half Cube Ice Maker w/ Bin – 536 lb Storage, Air Cooled, 115v

The Scotsman C0522SA-1/B530P/KBT27 ice maker with bin produces half-cube ice for drinks with its 475-pound daily production capacity and 536-pound storage capacity. Indicator lights show the unit’s operating status, while the diagnostic module and scannable QR code provide service information. With the push of a button, staff can clean the head, and antimicrobial protection and purge control keep bacteria and scale off the internal surfaces. Its bin door is spring loaded with hidden hinges that facilitate cleaning. An ice scoop and integrated holder are included, along with an adapter kit that connects the Scotsman C0522SA-1/B530P/KBT27 ice maker to its bin.

Ice Maker Details

• 475-lb. ice production capacity
• 340-lb. AHRI-certified ice production capacity
• Half-cube ice size: 0.875 in. x 0.875 in. x 0.375 in.
• Air-cooled condenser
• AutoAlert indicator lights provide operating information
• Smart-Board diagnostic module
• QR code can be scanned for warranty history and service information
• Self-aligning front panel accesses the components
• Antimicrobial protection helps prevent bacteria growth
• WaterSense purge control removes scale
• Harvest Assist efficiently moves ice to the bin
• 1-touch cleaning
• R404A refrigerant
• 7,900 BTU
• Required ambient air temperature: 50-100 degrees F
• Required incoming water temperature: 40-100 degrees F

Bin Details

• 536-lb. storage capacity

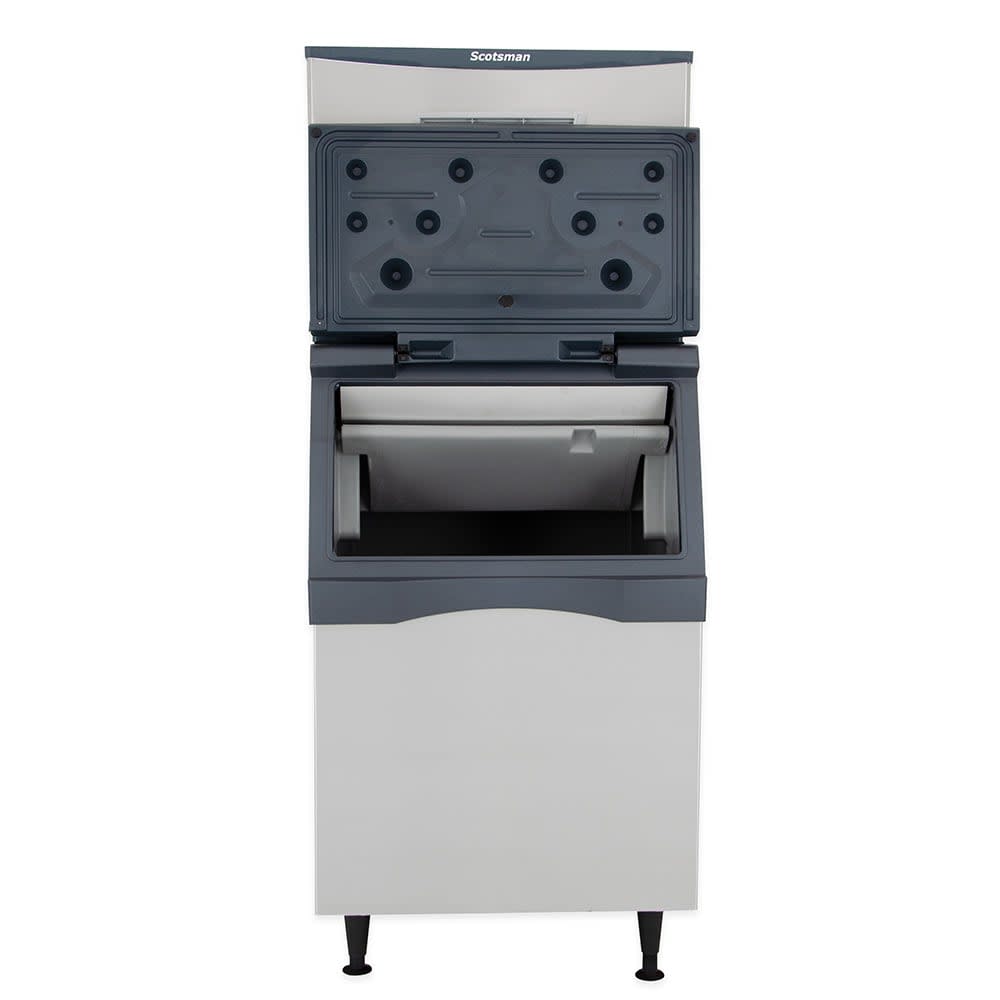

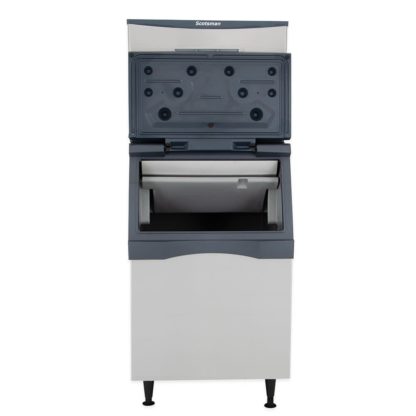

• Smooth-opening, spring-loaded door
• Hidden door hinges eliminate hard-to-clean crevices
• Recessed drain fitting provides flexibility during install
• Baffle can be removed without tools
• Ice scoop and built-in holder
• Rotocast plastic construction is strong and corrosion resistant
• KBT27 adapter kit connects the machine head to the bin

Dimensions & Utilities

• Ice Maker
  • 22.67 in. W x 25.15 in. D x 23 in. H
  • 11.9 A, 4.48 kW
  • 115 V/60 Hz/1 ph
• Bin
  • 30.5 in. W x 34 in. D x 50 in. H

From The Manufacturer

C0522SA-1 Ice Maker: Prodigy Plus Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 475 lb/24 hours at 70°/50° (340 lb AHRI certified at 90°/70°), stainless steel finish, small cube size, 115v/60/1-ph, 13.5 amps, cULus, NSF, CE; B530P Ice Bin: Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, polyethylene liner, rotocast plastic construction, includes 6″ legs, NSF; KBT27 Ice Bin Top: Bin Top, for use with all 22″ cubers, flakers & nugget makers (except EH222) on B230, B330 & B530 bins

*Image may not depict product color, inclusions or accessories.
