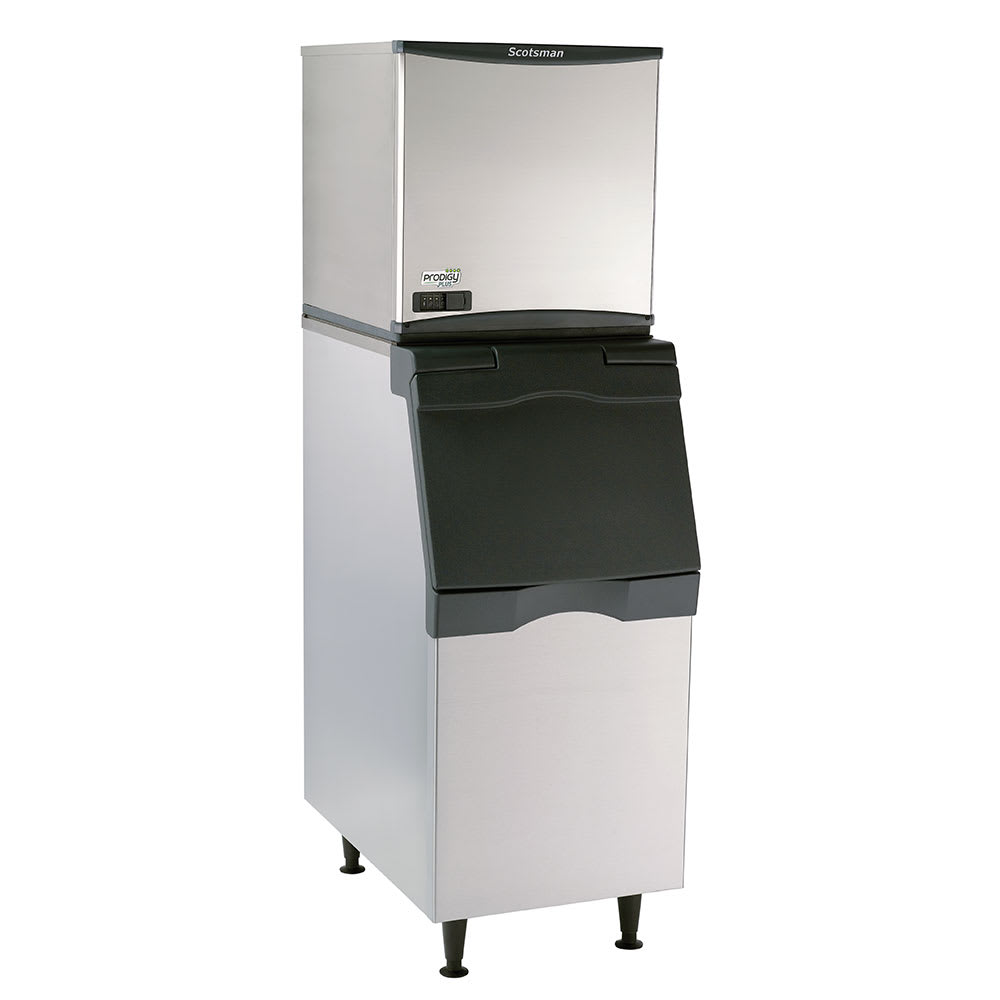

Scotsman C0522SA-1/B322S 475 lb Half Cube Ice Maker w/ Bin – 370 lb Storage, Air Cooled, 115v

When conditions are ideal, the Scotsman C0522SA-1 Prodigy Plus half-cube ice machine can produce 475 pounds of ice daily. Ice falls into the included Scotsman B322S storage bin, which can hold 370 pounds of ice at a time and features a built-in ice scoop holder. The stainless steel construction of the ice maker and a metallic finish on the bin resist dents, scratches, and corrosion in addition to supporting quick cleanup. Ice machine parts are accessible through the front for cleaning, and to reduce bacteria growth, an antimicrobial agent is built into the internal components. A Harvest Assist pin quickly pushes cubes from the top and into the storage bin.

For reliability, the WaterSense adaptive purge control reduces the amount of scale that builds up between cleanings, keeping the unit running efficiently. This Scotsman C0522SA-1/B322S ice maker and bin combo is air cooled, and its reusable air filter can be removed without extra tools. AutoAlert indicator lights provide information about cleaning and maintenance needs. If service is required, an exclusive QR code instantly connects operators to service and warranty information.

Ice Machine Details

• 475-lb. maximum daily ice production
• 340-lb. AHRI-certified daily ice production
• Small cubes can fill a glass tightly
• Cube size: ³/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• AutoAlert indicator lights provide information about cleaning and maintenance needs
• QR code connects operators to warranty history and service information
• 1-touch cleaning saves time and money
• Air filter is mounted on the front to eliminate side clearances
• Front panel is self-aligning so users can access components
• WaterSense purge control reduces the amount of scale buildup between cleanings
• Harvest Assist moves ice cubes to the bin efficiently, conserving energy and speeding up production
• Antimicrobial agent is built into key components to reduce the amount of bacteria that grows between cleanings
• Air-cooled condensing unit
• Uses R-404A refrigerant
• 7,900-BTU heat transfer capacity

Ice Bin Details

• 370-lb. storage capacity
• Corrosion-resistant metallic exterior
• Spring-loaded, full-width door
• Polyurethane foam insulation prevents ice from melting
• Baffle can be removed for thorough cleaning
• Polyethylene liner facilitates cleaning
• Recessed drain releases moisture
• Scoop is included
• Built-in holder keeps scoop above ice level

Ideal Operating Conditions

• Surrounding air temperature: 50-100 degrees F
• Incoming water temperature: 40-100 degrees F
• Water pressure: 20-80 PSI

Dimensions & Utilities

• Ice machine: 22.67 in. W x 25.15 in. D x 23 in. H
• Bin: 22.5 in. W x 34 in. D x 50 in. H
• 11.2 A, 5.94 kW
• 115 V/60 Hz/1 ph

From The Manufacturer

C0522SA-1 Ice Maker: Prodigy Plus Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 475 lb/24 hours at 70°/50° (340 lb AHRI certified at 90°/70°), stainless steel finish, small cube size, 115v/60/1-ph, 13.5 amps, cULus, NSF, CE; B322S Ice Bin: Ice Bin, top-hinged front-opening door, 370 lb application capacity, for top-mounted ice maker, polyethylene liner, metallic finish exterior, includes 6″ legs, NSF

*Image may not depict product color, inclusions or accessories.
