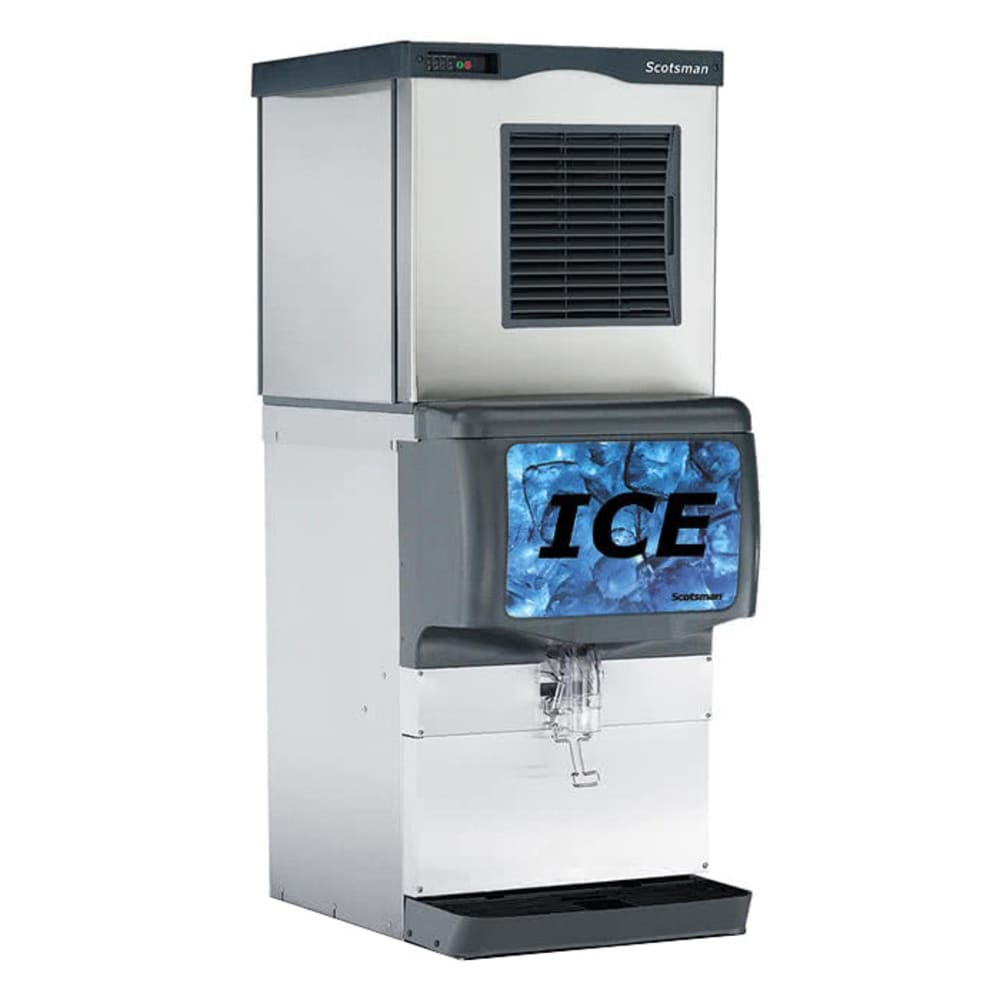

Scotsman C0522MW-1/ID150B-1/KBT42 480 lb Full Cube Ice Maker w/ Countertop Ice Dispenser – 150 lb Storage, Cup Fill, 115v

Producing 480 pounds of ice in 24 hours, the Scotsman C0522MW-1/ID150B-1/KBT42 ice maker with countertop dispenser has a dispenser for touch-free ice retrieval. Storing 150 pounds in its dispenser, the machine head attaches to the unit with an included adapter kit. This ice maker produces full-cube ice that is perfect for soft drinks. Its condenser is cooled by water, and operators can monitor its status with indicator lights and a diagnostic module. Scale buildup in the Scotsman C0522MW-1/ID150B-1/KBT42 ice maker is automatically removed, and antimicrobial protection slows bacteria growth. A one-touch cleaning feature aids in the cleaning process.

Ice Maker Details

• 480-lb. ice production capacity
• 409-lb. AHRI-certified ice production capacity
• Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
• Water-cooled condenser
• AutoAlert indicator lights show users the operating status
• Smart-Board module provides diagnostics
• QR code can be scanned to instantly show service information and warranty history
• Self-aligning front panel for component access
• Antimicrobial agent slows bacteria growth
• WaterSense purge control helps prevent scale accumulation
• Harvest Assist transfers ice to the dispenser
• 1-touch cleaning
• R404A refrigerant
• 7,900 BTU
• Required ambient air temperature: 50-100 degrees F
• Required incoming water temperature: 40-100 degrees F
• Required incoming water pressure: 20-80 PSIG

Dispenser Details

• 150-lb. storage capacity
• Off-cycle agitation adjusts to different ambient conditions
• Agitator prevents bridging and jamming
• Long-lasting agitator motor can endure heavy use
• Heavy-duty, insulated drip tray resists condensation
• Front-accessible components
• KBT42 adapter kit connects the ice machine head to the dispenser

Dimensions & Utilities

• Ice Maker
  • 22.67 in. W x 25.15 in. D x 23 in. H
  • 11.9 A, 4.48 kW
  • 115 V/60 Hz/1 ph
• Dispenser
  • 22.25 in. W x 30.6875 in. D x 35.6275 in. H
  • 115 V/60 Hz/1 ph

From The Manufacturer

C0522MW-1 Ice Maker: Prodigy Plus Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 480 lb/24 hours at 70°/50° (409 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 115v/60/1-ph, 11.9 amps, cULus, NSF, CE; ID150B-1 Ice Dispenser: Ice Dispenser, counter model, 150 lb capacity, designed for cube-type ice, stainless steel exterior, cup activated, 115v/60/1-ph, NSF, cULus; KBT42 Ice Bin Top: Bin Top, for use with 22″ cuber or 21″ nugget maker (except EH222) on ID150 dispensers

*Image may not depict product color, inclusions or accessories.
