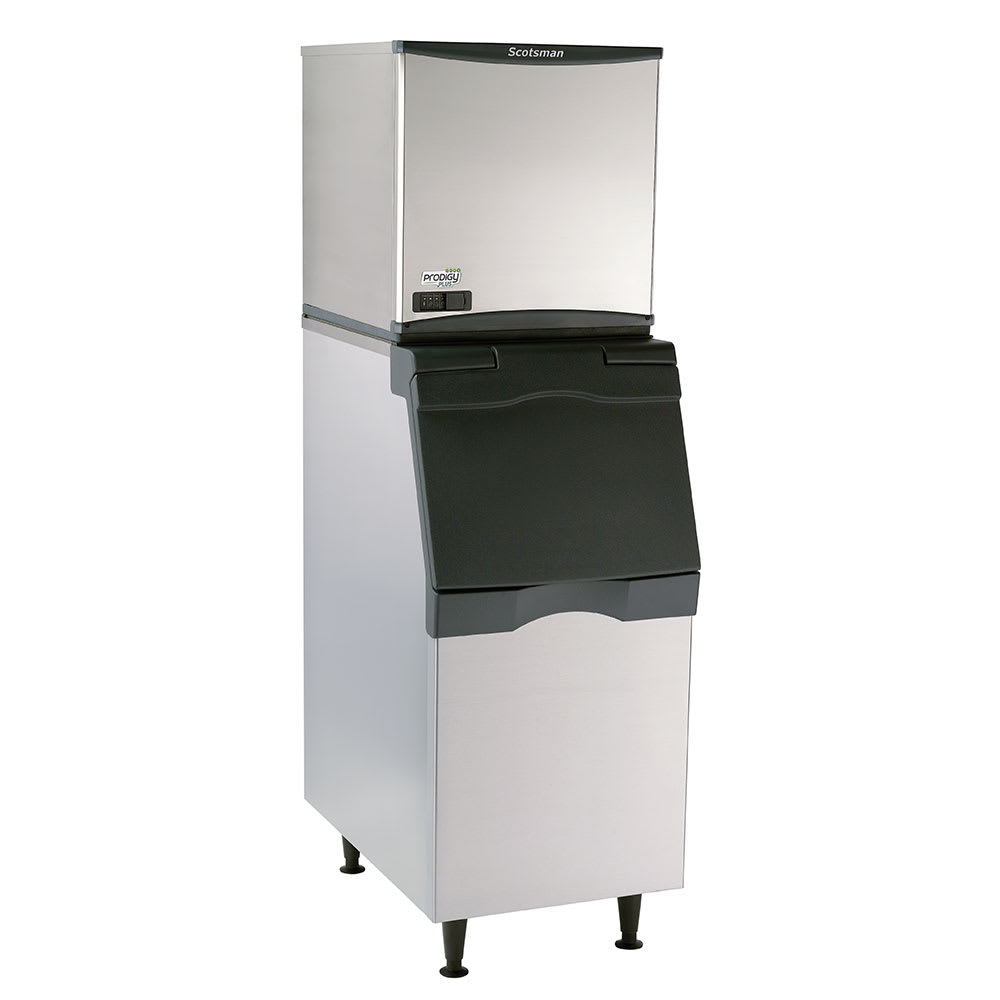

Scotsman C0522MW-1/B322S 480 lb Full Cube Ice Maker w/ Bin – 370 lb Storage, Water Cooled, 115v

The Scotsman C0522MW-1/B322S ice maker with bin can produce 480 pounds daily, storing 370 pounds. One-touch cleaning and antimicrobial technology help prevent bacteria growth, and WaterSense control eliminates scale. A module and the unit’s indicator lights provide diagnostic feedback, and a scannable QR code provides service information.

Harvest Assist technology efficiently moves ice from the machine head to the bin. A spring-loaded door opens the bin smoothly, and its hidden hinges support cleanup. Since the Scotsman C0522MW-1/B322S ice maker with bin has a recessed drain fitting, it can be installed in many areas. A scoop and built-in holder are included.

Ice Maker Details

• 480-lb. ice production capacity
• 409-lb. AHRI-certified ice production capacity
• Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
• AutoAlert indicator lights communicate information on the operating status
• Smart-Board module for diagnostic feedback
• Scannable QR code provides immediate service information and warranty history
• Self-aligning front panel for internal component access
• Minimizes scale buildup with WaterSense purge control
• Antimicrobial protection prevents bacteria growth on internal surfaces
• Harvest Assist transfers ice to the bin
• 1-touch cleaning
• Water-cooled condensing unit
• Uses R404A refrigerant
• 7,900 BTU
• Required ambient air temperature: 50-100 degrees F
• Required incoming water temperature: 40-100 degrees F
• Required incoming water pressure: 20-80 PSIG

Bin Details

• 370-lb. storage capacity
• Hidden hinges in the spring-loaded door cleanup quickly
• Removable baffle (no tools required)
• Recessed drain fitting provides flexibility during installation
• Scoop is included with a built-in holder
• Metallic exterior finish

Dimensions & Utilities

• Ice Maker
  • 22.67 in. W x 25.15 in. D x 23 in. H
  • 11.9 A, 4.48 kW
  • 115 V/60 Hz/1 ph
• Bin
  • 22.5 in. W x 34 in. D x 50 in. H

From The Manufacturer

C0522MW-1 Ice Maker: Prodigy Plus Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 480 lb/24 hours at 70°/50° (409 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 115v/60/1-ph, 11.9 amps, cULus, NSF, CE; B322S Ice Bin: Ice Bin, top-hinged front-opening door, 370 lb application capacity, for top-mounted ice maker, polyethylene liner, metallic finish exterior, includes 6″ legs, NSF

*Image may not depict product color, inclusions or accessories.
