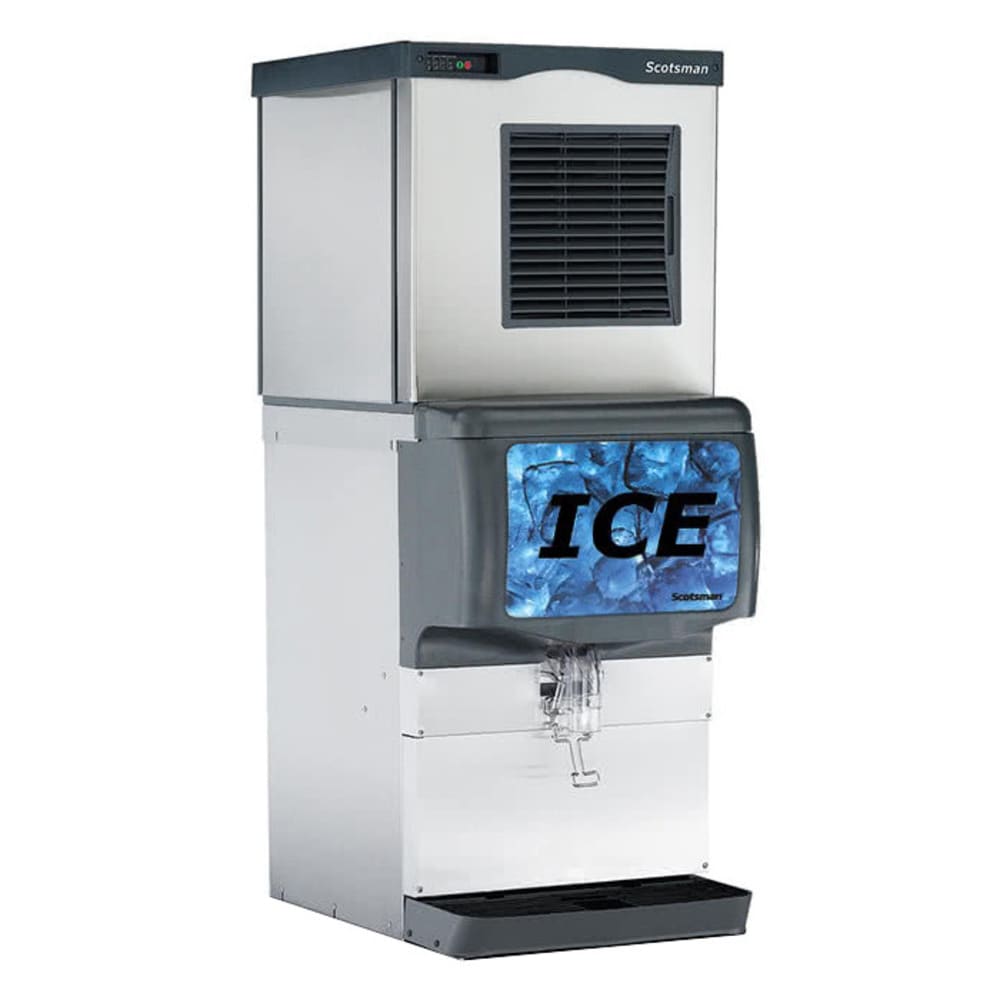

Scotsman C0522MA-1/ID150B-1/KBT42 475 lb Full Cube Ice Maker w/ Countertop Ice Dispenser – 150 lb Storage, Cup Fill, 115v

The Scotsman C0522MA-1/ID150B-1/KBT42 ice machine with dispenser can make 475 pounds per day. Measuring 0.875 inch by 0.875 inch by 0.875 inch, full-cube ice is perfect for beverages. Indicator lights provide information on the operating status, while a module communicates diagnostic feedback. With a scannable QR code, operators can access service information and warranty history instantly.

Operators are aided in cleaning the ice maker by scale-reducing purge control and antimicrobial technology, which slows bacteria growth. The Scotsman C0522MA-1/ID150B-1/KBT42 ice machine has a one-touch cleaning feature. Its dispenser operates with push actuation and holds 150 pounds. A drip tray catches spills and leaks, and the unit’s insulated design helps control condensation buildup.

Ice Maker Details

• 475-lb. ice production capacity
• 340-lb. AHRI-certified ice production capacity
• Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
• AutoAlert indicator lights display the operating status
• Smart-Board diagnostic module
• Scannable QR code provides service and warranty information
• Removable front panel self-aligns for convenience
• WaterSense purge control removes scale buildup
• Internal surfaces slow bacteria growth through antimicrobial protection
• Harvest Assist technology drops ice into the dispenser
• 1-touch cleaning
• Air-cooled condensing unit
• Front air filter enables installation against other units and walls
• Uses R404A refrigerant
• 7,900 BTU
• Required ambient air temperature: 50-100 degrees F
• Required incoming water temperature: 40-100 degrees F
• Required incoming water pressure: 20-80 PSIG

Dispenser Details

• 150-lb. storage capacity
• Off-cycle agitation adjusts to most ambient conditions
• Agitator reduces jamming and bridging during dispensing
• Strong agitator motor can withstand high-volume use
• Heavy-duty drip tray resists condensation
• Components are front accessible
• KBT42 adapter kit connects the ice maker to the dispenser

Dimensions & Utilities

• Ice Maker
  • 22.67 in. W x 25.15 in. D x 23 in. H
  • 13.5 A, 5.94 kW
  • 115 V/60 Hz/1 ph
• Dispenser
  • 22.25 in. W x 30.6875 in. D x 35.6275 in. H
  • 115 V/60 Hz/1 ph

From The Manufacturer

C0522MA-1 Ice Maker: Prodigy Plus Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 475 lb/24 hours at 70°/50° (340 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 115v/60/1-ph, 13.5 amps, cULus, NSF, CE; ID150B-1 Ice Dispenser: Ice Dispenser, counter model, 150 lb capacity, designed for cube-type ice, stainless steel exterior, cup activated, 115v/60/1-ph, NSF, cULus; KBT42 Ice Bin Top: Bin Top, for use with 22″ cuber or 21″ nugget maker (except EH222) on ID150 dispensers

*Image may not depict product color, inclusions or accessories.
