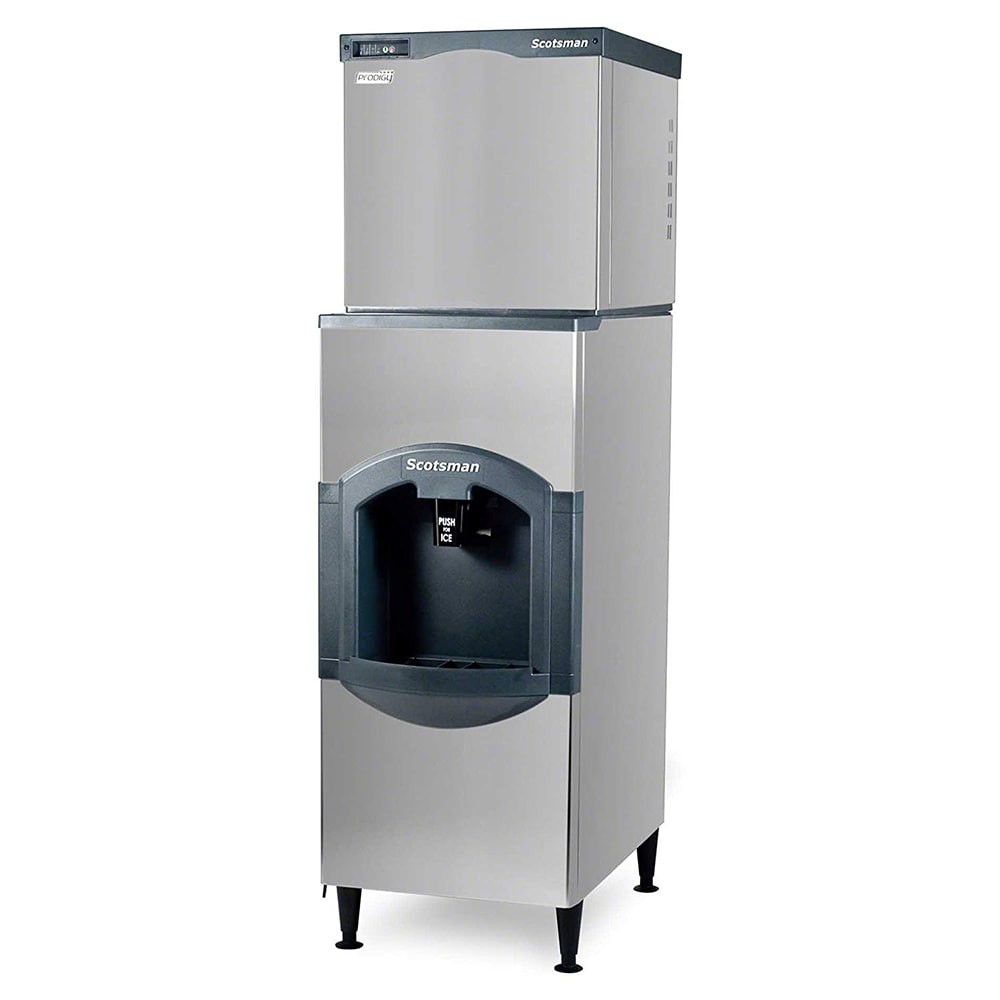

Scotsman C0522MA-1/HD22B-1 475 lb Full Cube Ice Maker w/ Ice Dispenser – 120 lb Storage, Bucket Fill, 115v

Producing as much as 475 pounds in 24 hours, the Scotsman C0522MA-1/HD22B-1 ice machine with dispenser produces full-size ice cubes that measure 0.875 inch by 0.875 inch by 0.875 inch. This type of ice melts slowly and works well in most beverages. With the module and indicator lights, operators can view diagnostic information and the ice maker’s status. An antimicrobial agent and WaterSense purge control keep internal surfaces free of bacteria and scale buildup. Harvest Assist technology efficiently moves ice from the machine head into the rust-resistant dispenser, which is actuated by a push mechanism.

Ice Maker Details

• 475-lb. ice production capacity
• 340-lb. AHRI-certified ice production capacity
• Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
• Harvest Assist technology ensures ice drops into the dispenser
• Smart-Board module gives the operator diagnostic feedback
• AutoAlert indicator lights denote the operating status
• Scannable QR code provides service information and warranty history
• Removable, self-aligning front panel
• WaterSense purge control helps eliminate scale buildup
• Internal surfaces have antimicrobial protection to prevent bacteria growth
• 1-touch cleaning
• Air-cooled condenser
• Air filter is located on the front for flexibility in installation
• Uses R404A refrigerant
• 7,900 BTU
• Required ambient air temperature: 50-100 degrees F
• Required incoming water temperature: 40-100 degrees F
• Required incoming water pressure: 20-80 PSIG

Dispenser Details

• 120-lb. capacity
• Push actuation
• Dispensing area depth accommodates most hotel buckets
• Top panel is removable for cleaning without removing the ice machine head
• Metallic cabinet is resistant to corrosion

Dimensions & Utilities

• Ice Maker
  • 22.67 in. W x 25.15 in. D x 23 in. H
  • 13.5 A, 5.94 kW
  • 115 V/60 Hz/1 ph
• Dispenser
  • 22 in. W x 33.5 in. D x 53.25 in. H
  • 115 V/60 Hz/1 ph, 11-ft. cord

From The Manufacturer

C0522MA-1 Ice Maker: Prodigy Plus Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 475 lb/24 hours at 70°/50° (340 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 115v/60/1-ph, 13.5 amps, cULus, NSF, CE; HD22B-1 Ice Dispenser: iceValet Hotel/Motel Ice Dispenser, floor model, push dispensing,120 lb application capacity, designed for 22″ wide top mount cube-type ice makers, stainless front & sides, includes 6″ legs, 115v/60/1-ph, 2.1 amps, NSF, cULus

*Image may not depict product color, inclusions or accessories.
