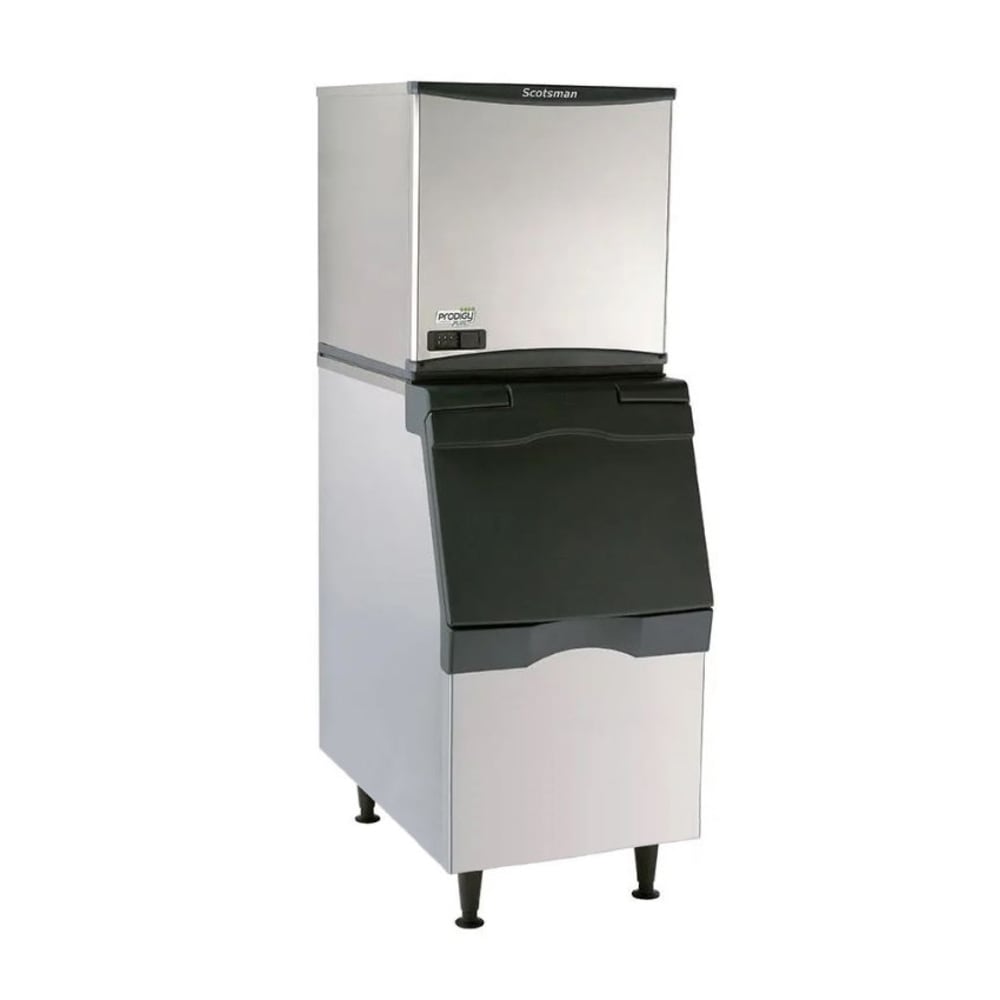

Scotsman C0522MA-1/B530S 475 lb Full Cube Ice Maker w/ Bin – 536 lb Storage, Air Cooled, 115v

In 24 hours, the Scotsman C0522MA-1/B530S ice maker and bin can produce 475 pounds of medium-size ice cubes that melt slower than small cubes. To further slow ice melting, the ice bin is insulated, and it can hold 536 pounds of ice at once. A spring-loaded top opens quickly and smoothly, and users can simply store the scoop in the built-in holder to keep the frequently touched handle out of the ice, so it stays clean.

This Scotsman C0522MA-1/B530S ice machine and bin is designed for user-friendly maintenance and cleaning. Important components are accessible through the front panel for repair, and during service calls, technicians can quickly find the machine’s service history with the unit-specific QR code. Parts in the ice machine have built-in antimicrobial protection to slow bacterial and mold growth, while the WaterSense control system adjusts operation based on water quality to slow sediment buildup. At the push of a button, the machine cleans itself, and its LED lights indicate when thorough sanitation or descaling is required.

Ice Maker Details

• Part of the Prodigy Plus series
• 475-lb. maximum daily ice production
• 340-lb. AHRI-certified daily ice production
• Creates medium cubes
• Cube size: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Harvest Assist probe pushes cubes out the evaporator grid
• Antimicrobial protection reduces bacteria spread
• WaterSense control adjusts settings to minimize limescale buildup
• AutoAlert LED lights indicate the need to descale or sanitize
• Clean cycle reduces employee labor
• Front panel is removable for internal component maintenance
• QR code stores the unit’s warranty info and service history
• Operates with R-404A refrigerant
• 7,900 BTU of heat transfer capacity

Ice Bin Details

• 536-lb. storage capacity
• Metallic-finished exterior
• Insulated construction has durable metallic finish
• Spring-loaded door closes and opens with ease
• Polyethylene interior facilitates cleaning
• Baffle is removable for thorough cleanup
• Scoop holder helps keep contaminants out of ice
• Includes a scoop

Ideal Operating Conditions

• Surrounding air temperature: 50-100 degrees F
• Incoming water temperature: 40-100 degrees F
• Incoming water pressure: 20-80 PSI

Dimensions & Utilities

• Ice machine: 22.67 in. W x 25.15 in. D x 24 in. H
• Ice bin: 30.5 in. W x 34 in. D x 50 in. H
• 13.5 A, 5.94 kW
• 115 V/60 Hz/1 ph

From The Manufacturer

Prodigy Plus Ice Maker with Bin, cube style, air-cooled, self-contained condenser, production capacity up to 475 lb/24 hours at 70°/50° (340 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 115v/60/1-ph, 13.5 amps, cULus, NSF, CE; Ice Bin with Bin Top: top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, polyethylene liner, metallic finish exterior, includes 6″ legs, NSF

*Image may not depict product color, inclusions or accessories.
