Description
Scotsman C0522MA-1/B530P/KBT27

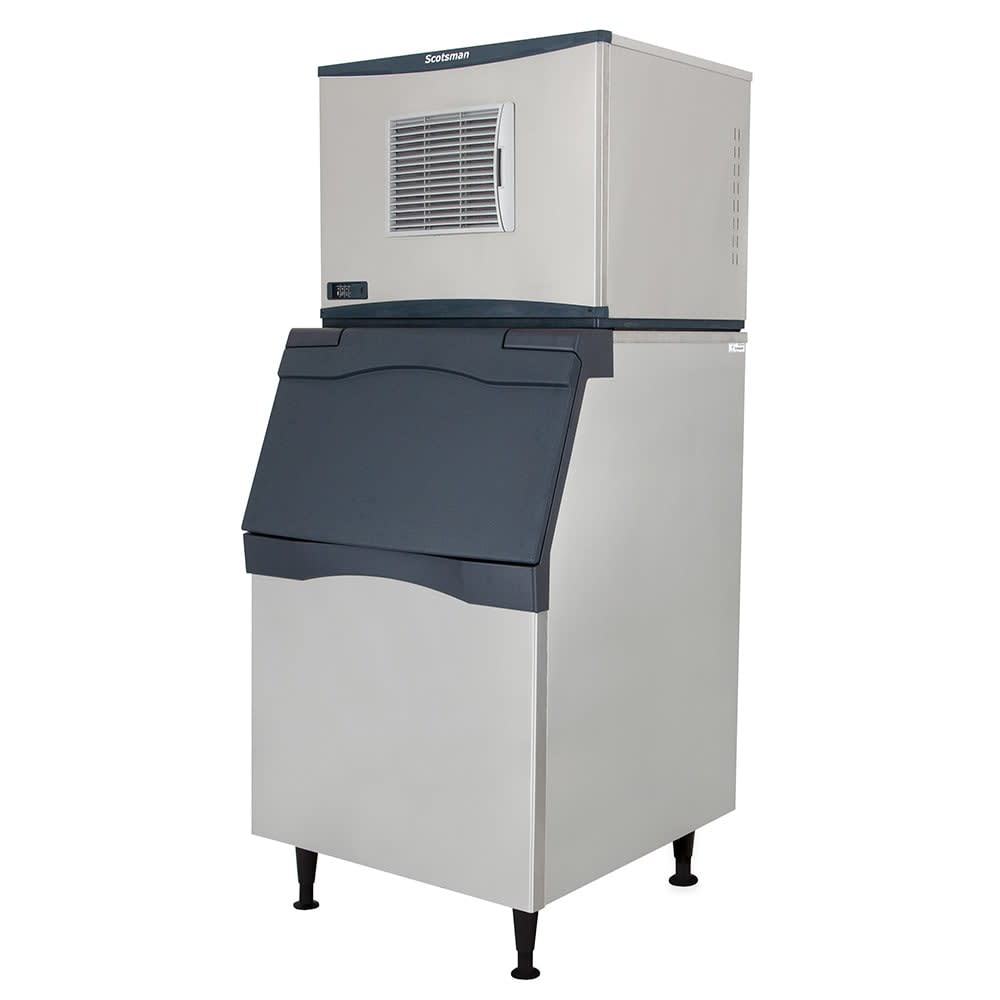

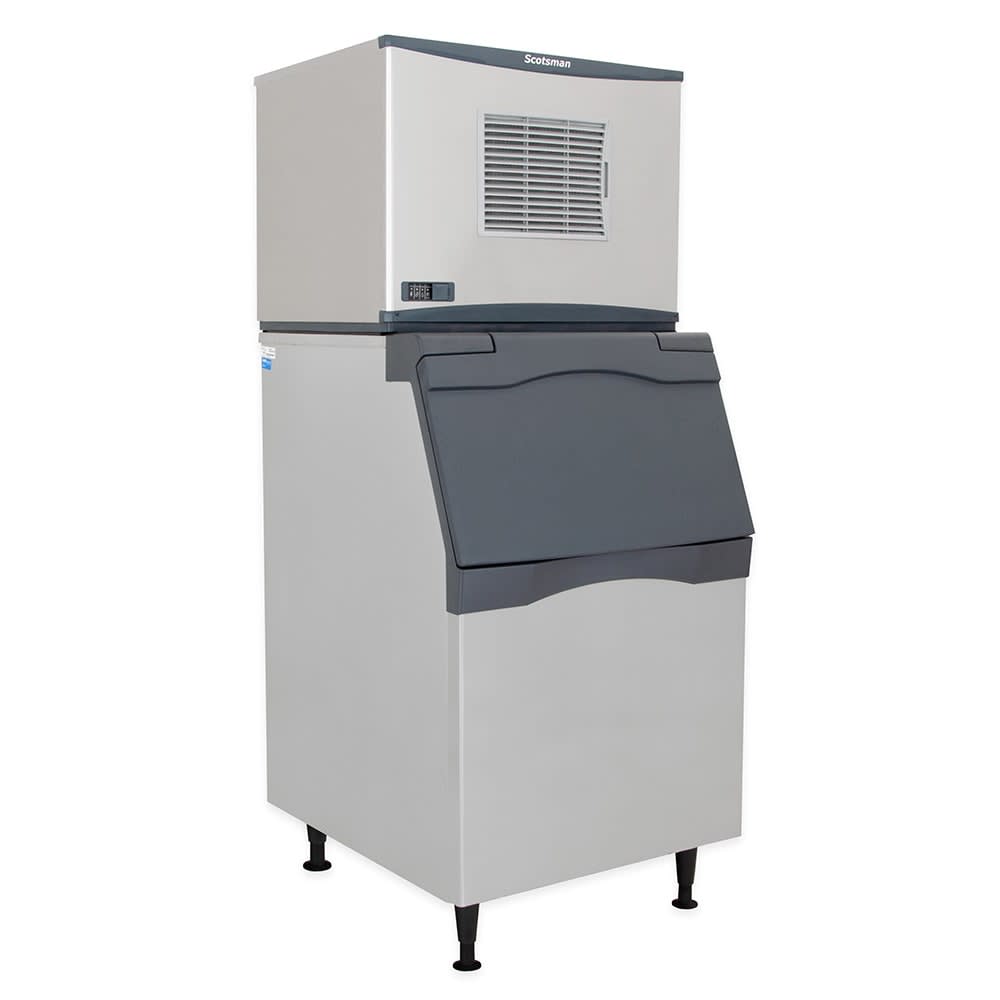

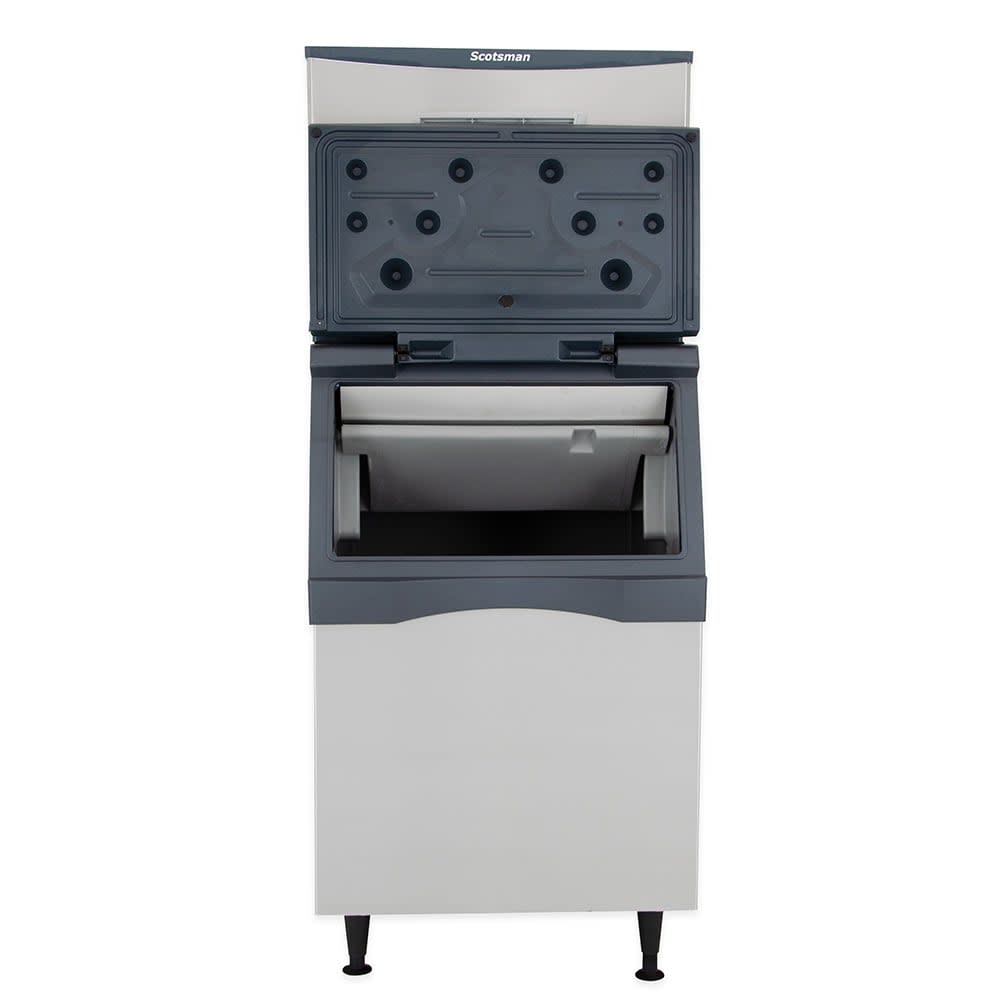

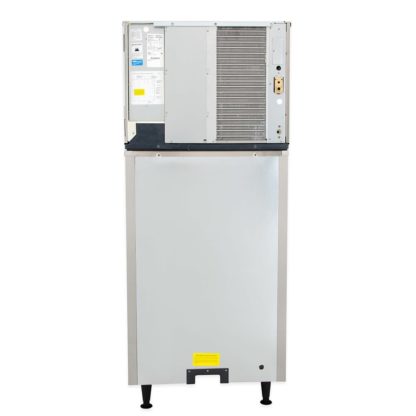

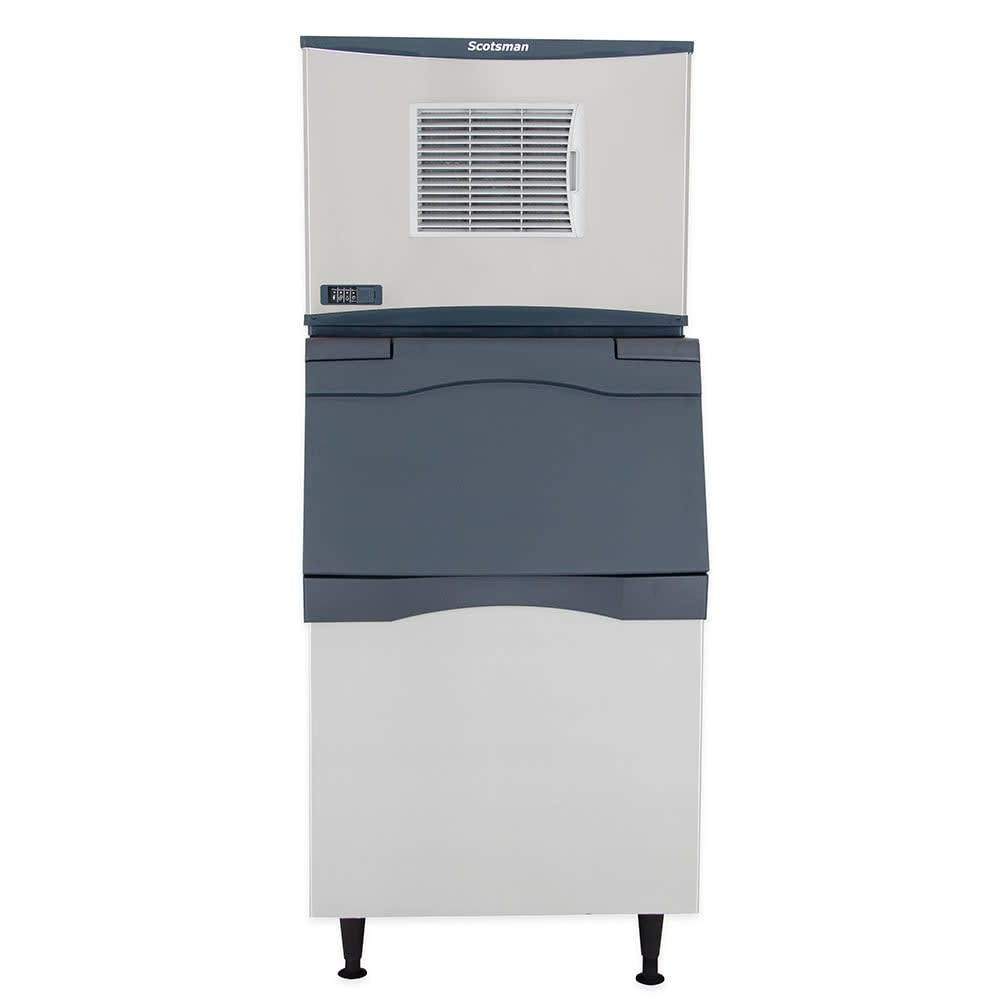

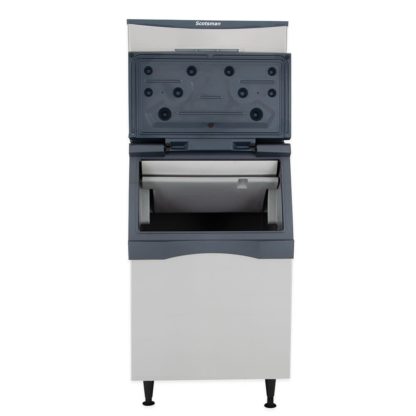

The Scotsman C0522MA-1/B530P/KBT27 ice maker with bin has a 475-pound daily ice production capacity. Since it makes full cubes, it is perfect for operations that serve drinks or need slow-melting ice. On the module, operators can find diagnostic information and indicator lights that tell staff about the unit’s status. The front panel is removable, and its self-aligning panel enables it to slide smoothly back in place. All internal surfaces are protected by an antimicrobial agent that slows bacteria growth. This bin can accommodate 536 pounds and includes a scoop with a built-in holder. An adapter connects the Scotsman C0522MA-1/B530P/KBT27 ice maker to its bin and ensures ice flows efficiently.
Ice Maker Details
- 475-lb. ice production capacity
- 340-lb. AHRI-certified ice production capacity
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- Harvest Assist ensures ice slides into the bin
- Smart-Board diagnostic module
- AutoAlert indicator lights provide operation information
- Scannable QR code with service information and warranty history
- Self-aligning front panel can be removed
- WaterSense purge control reduces scale on the components
- Minimized bacteria growth due to antimicrobial protection on internal surfaces
- 1-touch cleaning
- Air-cooled condenser
- Front-located air filter supports placement against walls
- Uses R404A refrigerant
- 7,900 BTU
- Required ambient air temperature: 50-100 degrees F
- Required incoming water temperature: 40-100 degrees F
- Required incoming water pressure: 20-80 PSIG
Bin Details
- 536-lb. storage capacity
- Spring-loaded door’s hidden hinges eliminate bacteria-harboring crevices
- Removable baffle requires no tools
- Recessed drain fitting aids in installation
- Scoop is included with an integrated holder
- Metallic exterior finish
- KBT27 adapter kit connects the bin and the ice maker
Dimensions & Utilities
- Ice Maker
- 22.67 in. W x 25.15 in. D x 23 in. H
- 13.5 A, 5.94 kW
- 115 V/60 Hz/1 ph
- Bin
- 30.5 in. W x 34 in. D x 50 in. H
From The Manufacturer
C0522MA-1 Ice Maker: Prodigy Plus Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 475 lb/24 hours at 70°/50° (340 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 115v/60/1-ph, 13.5 amps, cULus, NSF, CE; B530P Ice Bin: Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, polyethylene liner, rotocast plastic construction, includes 6″ legs, NSF; KBT27 Ice Bin Top: Bin Top, for use with all 22″ cubers, flakers & nugget makers (except EH222) on B230, B330 & B530 bins
*Image may not depict product color, inclusions or accessories.
