Description

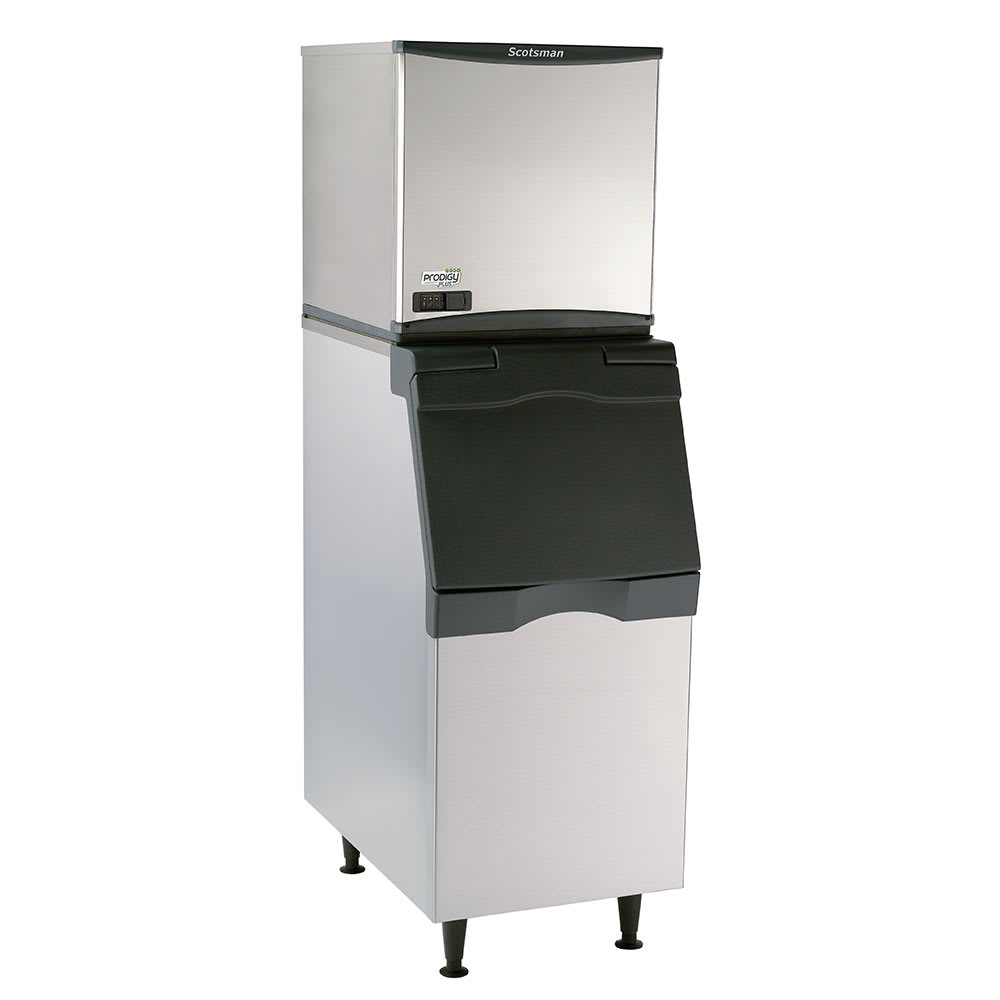

Scotsman C0522MA-1/B322S
The Scotsman C0522MA-1/B322S ice machine with bin can make 475 pounds in 24 hours. It produces slow-melting cubes that measure 0.875 inch by 0.875 inch by 0.875 inch, perfect for chilling drinks. Internal surfaces are protected from bacteria by antimicrobial technology, and WaterSense control reduces scale buildup. Ice maker information is available through a scannable QR code, diagnostic module, and alert indicator lights. The Scotsman C0522MA-1/B322S ice machine with bin can hold 370 pounds and includes an ice scoop with a built-in holder.
Ice Maker Details
- 475-lb. ice production capacity
- 340-lb. AHRI-certified ice production capacity
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- Harvest Assist moves ice to the bin using a probe
- Diagnostic Smart-Board module
- AutoAlert lights provide information on the operating status
- QR code can be scanned for service and warranty
- Removable, self-aligning front panel
- WaterSense purge control helps reduce the buildup of scale
- Antimicrobial agent slows bacteria growth on internal surfaces
- 1-touch cleaning
- Air-cooled condenser
- Front-located air filter enables placement against walls
- Uses R404A refrigerant
- 7,900 BTU
- Required ambient air temperature: 50-100 degrees F
- Required incoming water temperature: 40-100 degrees F
- Required incoming water pressure: 20-80 PSIG
Bin Details
- 370-lb. storage capacity
- Quick-cleaning, hidden hinges in the spring-loaded door
- Removable baffle (no tools required)
- Recessed drain fitting increases flexibility for installation
- Scoop is included
- Built-in scoop holder
- Metallic exterior finish
Dimensions & Utilities
- Ice Maker
- 22.67 in. W x 25.15 in. D x 23 in. H
- 13.5 A, 5.94 kW
- 115 V/60 Hz/1 ph
- Bin
- 22.5 in. W x 34 in. D x 50 in. H
From The Manufacturer
C0522MA-1 Ice Maker: Prodigy Plus Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 475 lb/24 hours at 70°/50° (340 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 115v/60/1-ph, 13.5 amps, cULus, NSF, CE; B322S Ice Bin: Ice Bin, top-hinged front-opening door, 370 lb application capacity, for top-mounted ice maker, polyethylene liner, metallic finish exterior, includes 6″ legs, NSF
*Image may not depict product color, inclusions or accessories.
