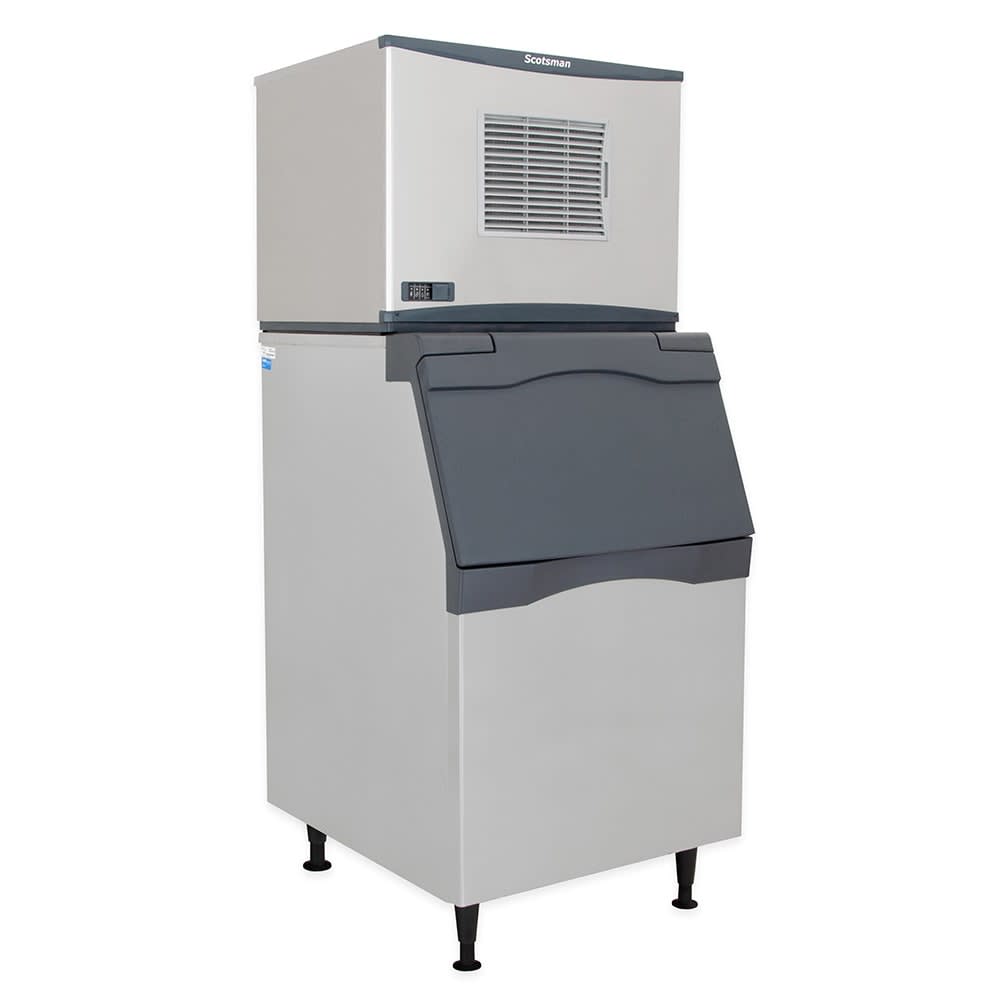

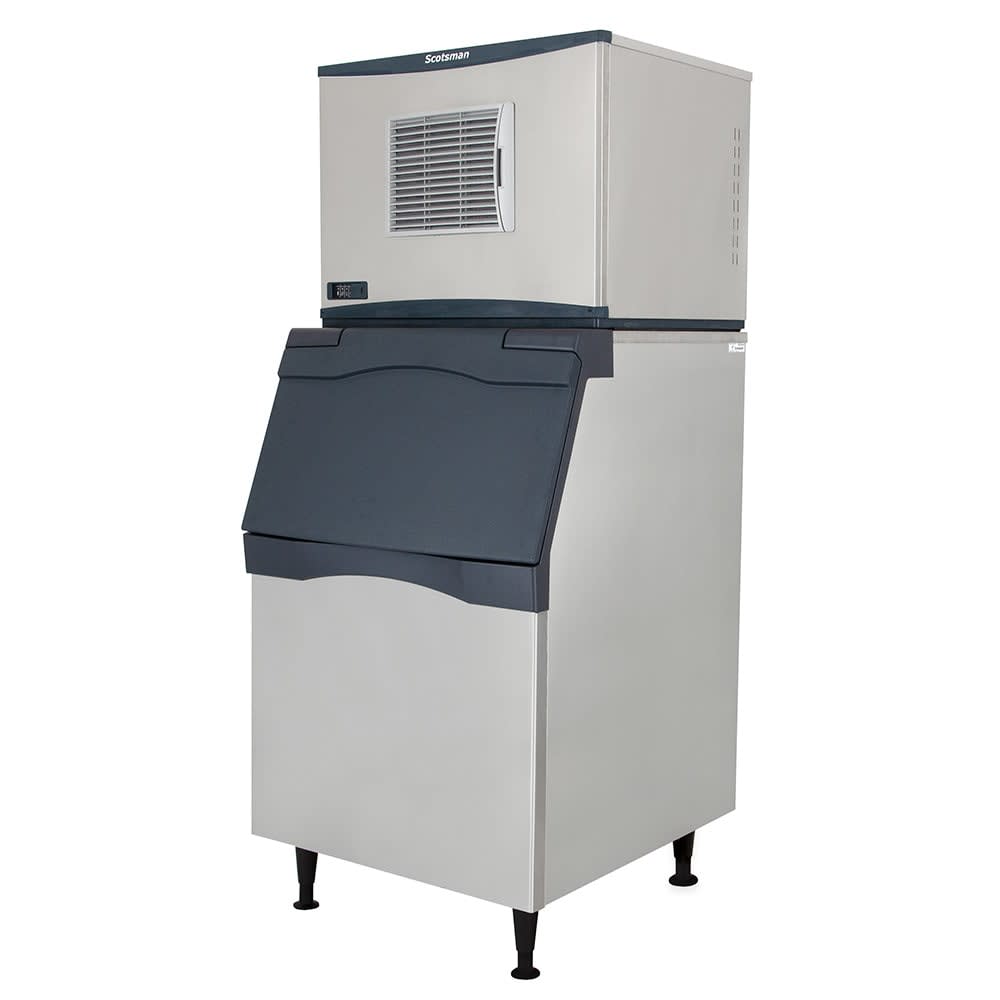

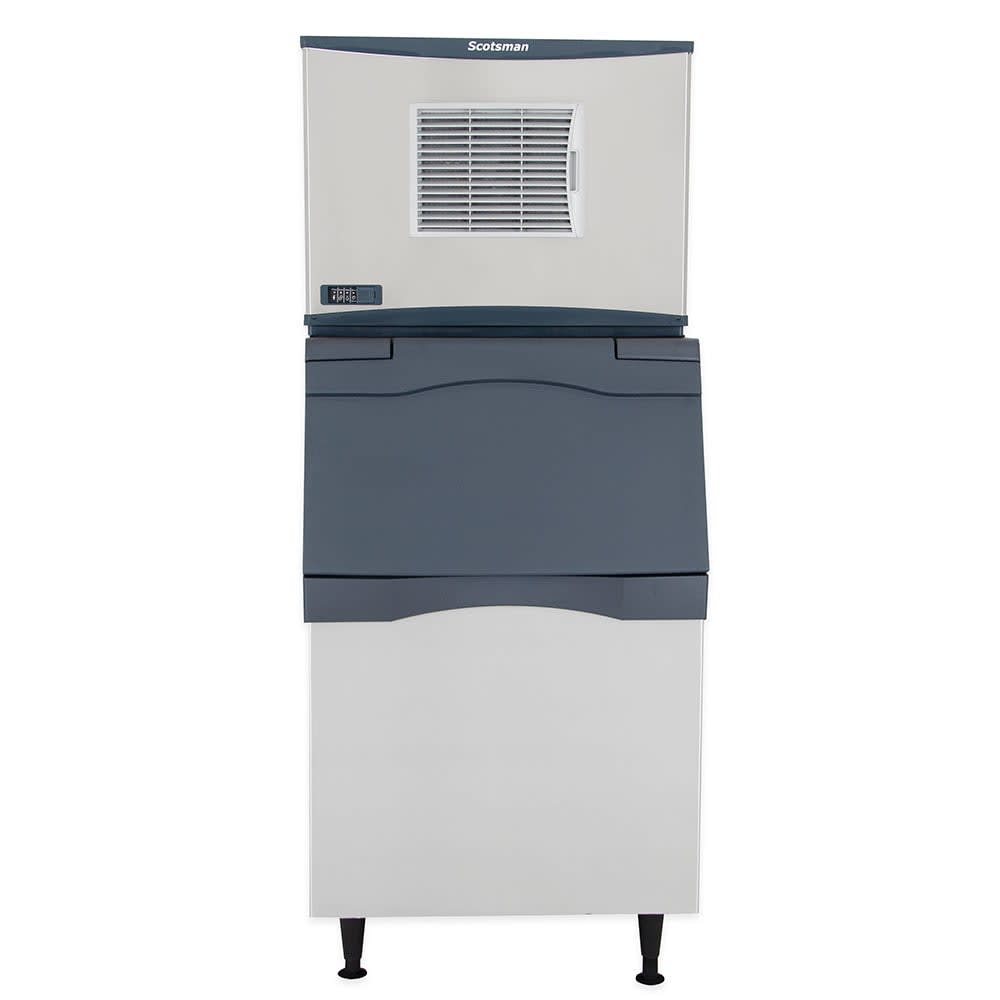

Scotsman C0330SW-1/B530P 420 lb Half Cube Ice Maker w/ Bin – 536 lb Storage, Water Cooled, 115v

The Scotsman C0330SW-1/B530P ice maker with bin can make 420 pounds in 24 hours since Harvest Assist technology quickly moves ice from the machine head to the bin. Antimicrobial protection slows bacteria growth between cleanings, and purge control helps prevent scale from building up. Operators can clean the unit with the push of a button.

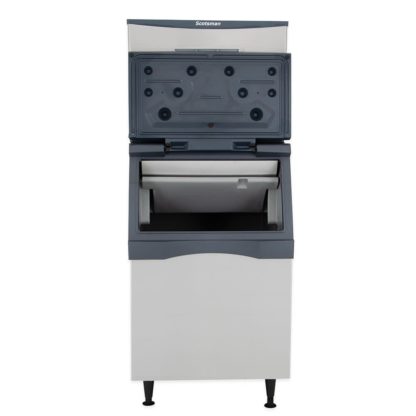

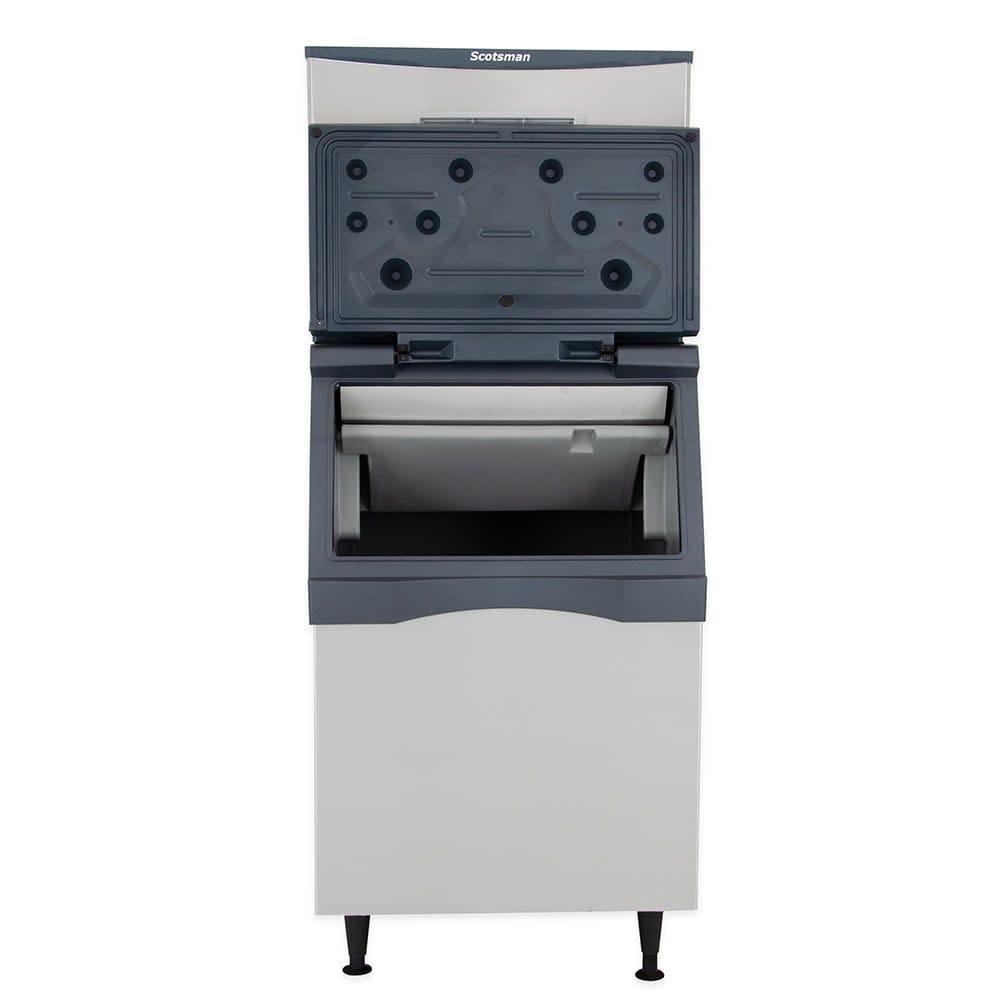

The Scotsman C0330SW-1/B530P ice maker with bin can hold 536 pounds, and its spring-loaded door provides access to the ice. This door has hidden hinges, eliminating crevices that can be difficult to clean. A holder is included in the bin, so operators can store the scoop separately from the ice.

Ice Maker Details

• 420-lb. ice production capacity
• 326-lb. AHRI-certified ice production capacity
• Half-cube ice size: 0.875 in. x 0.875 in. x 0.375 in.
• Harvest Assist moves ice to the bin
• Smart-Board module provides information for diagnostics
• AutoAlert lights track the operating status
• QR code is scannable, providing instant information for maintenance
• Front panel aligns on its own after removal
• WaterSense purge control reduces scale buildup
• Internal surfaces are made with antimicrobial technology to help prevent bacteria growth
• 1-touch cleaning
• Water-cooled condenser
• Uses R404A refrigerant
• 5,200 BTU
• Required ambient air temperature: 50-100 degrees F
• Required incoming water temperature: 40-100 degrees F
• Required incoming water pressure: 20-80 PSIG

Bin Details

• 536-lb. storage capacity
• Spring-loaded door’s hidden hinges aid in cleanup
• Removable baffle does not require tools
• Recessed drain fitting increases installation flexibility
• Scoop with a built-in holder
• Made of a rotocast plastic that resists corrosion

Dimensions & Utilities

• Ice Maker
  • 30.7 in. W x 24 in. D x 23.01 in. H
  • 13.5 A, 4.97 kW
  • 115 V/60 Hz/1 ph
• Bin
  • 30.5 in. W x 34 in. D x 50 in. H

From The Manufacturer

C0330SW-1 Ice Maker: Prodigy Plus Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 420 lb/24 hours at 70°/50° (326 lb AHRI certified at 90°/70°), stainless steel finish, small cube size, 115v/60/1-ph, 13.5 amps, cULus, NSF, CE; B530P Ice Bin: Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, polyethylene liner, rotocast plastic construction, includes 6″ legs, NSF

*Image may not depict product color, inclusions or accessories.
