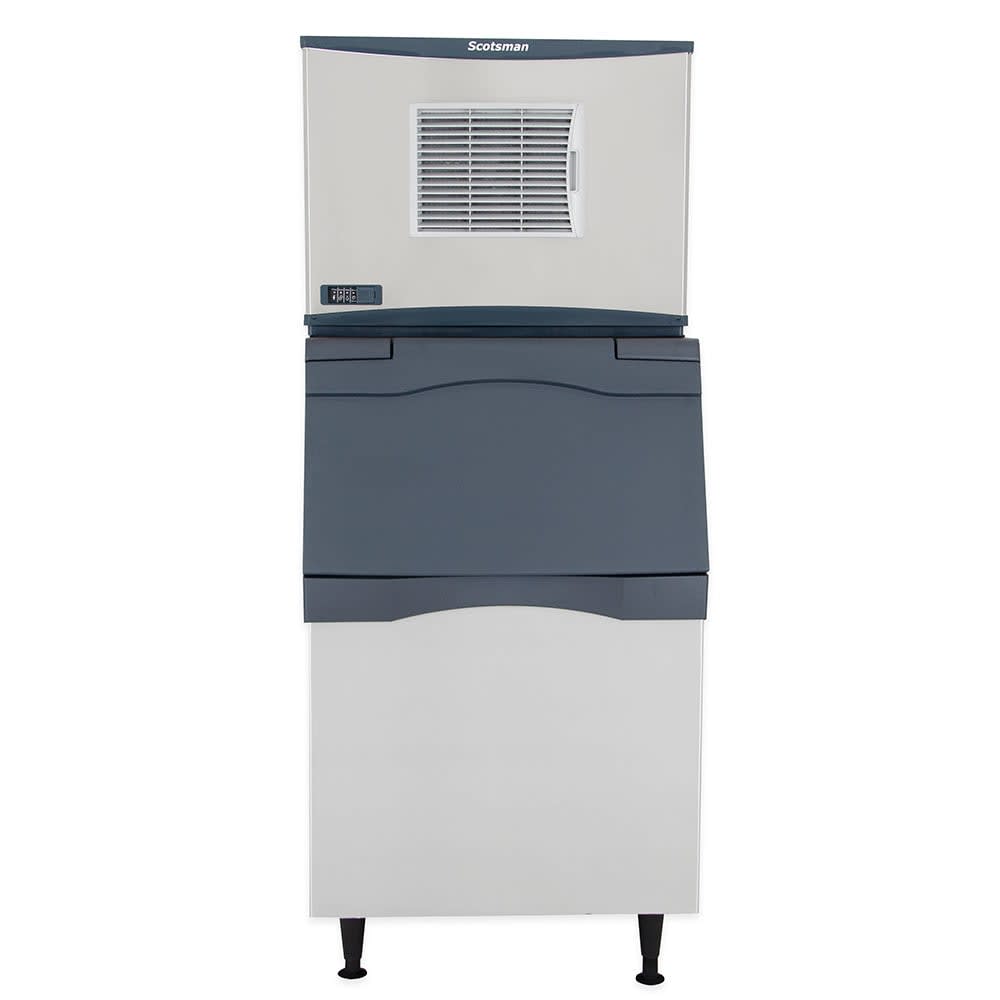

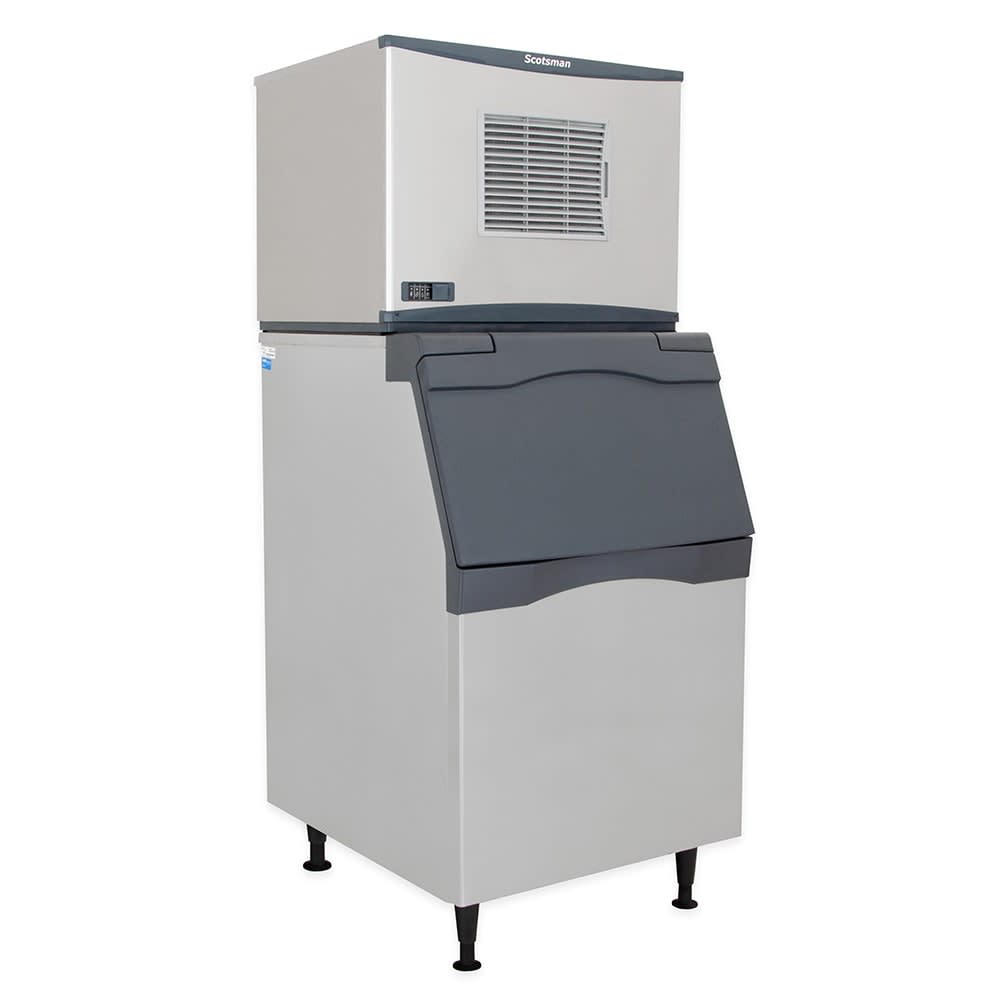

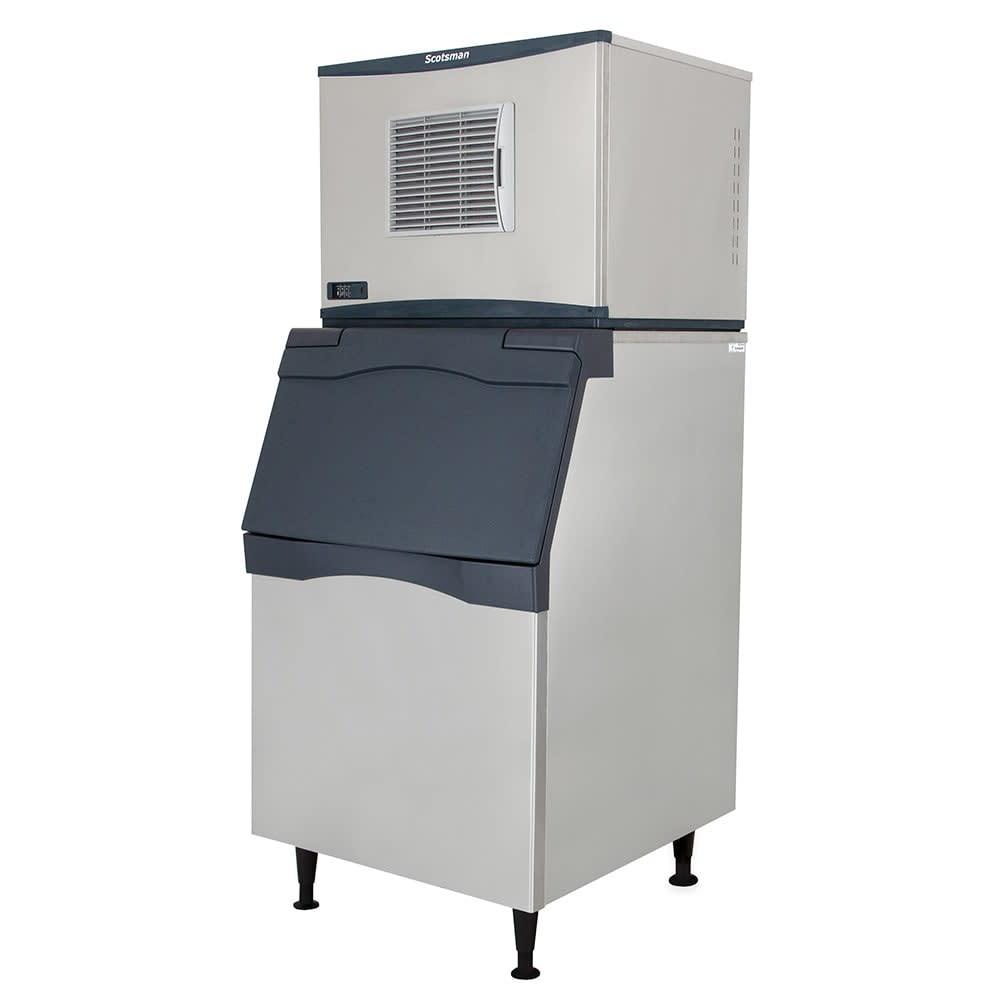

Scotsman C0330SW-1/B330P 420 lb Half Cube Ice Maker w/ Bin – 344 lb Storage, Water Cooled, 115v

The Scotsman C0330SW-1/B330P ice maker with bin has a 420-pound daily production capacity. Excellent for most beverages, this unit efficiently transfers half-cube ice from the ice maker to its bin with Harvest Assist technology. WaterSense purge technology reduces scale buildup as an antimicrobial agent slows bacteria growth.

Diagnostic information is available on the ice machine module, and indicator lights provide operators with information on the operating status. 344 pounds of ice can be held in the bin at a time. The spring-loaded bin door’s hidden hinges open and close smoothly and facilitate cleaning. A scoop is included with this Scotsman C0330SW-1/B330P ice maker and bin, and its holder is integrated into the bin.

Ice Maker Details

• 420-lb. ice production capacity
• 326-lb. AHRI-certified ice production capacity
• Half-cube ice size: 0.875 in. x 0.875 in. x 0.375 in.
• Harvest Assist ensures ice falls into the bin
• WaterSense purge control reduces the buildup of scale
• Smart-Board diagnostic module
• AutoAlert indicator lights illuminate to provide operating information
• QR code can be scanned for service and warranty information
• Front panel self-aligns for access to the components
• Antimicrobial agent on the internal surfaces resists bacteria
• 1-touch cleaning
• Water-cooled condensing unit
• Uses R404A refrigerant
• 5,200 BTU
• Required ambient air temperature: 50-100 degrees F
• Required incoming water temperature: 40-100 degrees F
• Required incoming water pressure: 20-80 PSIG

Bin Details

• 344-lb. storage capacity

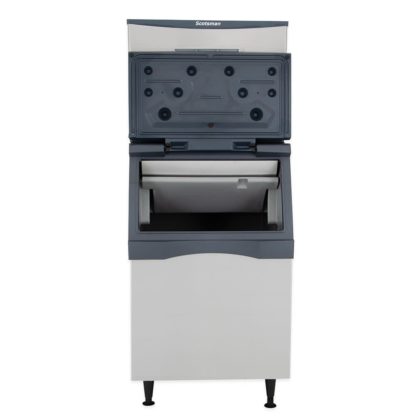

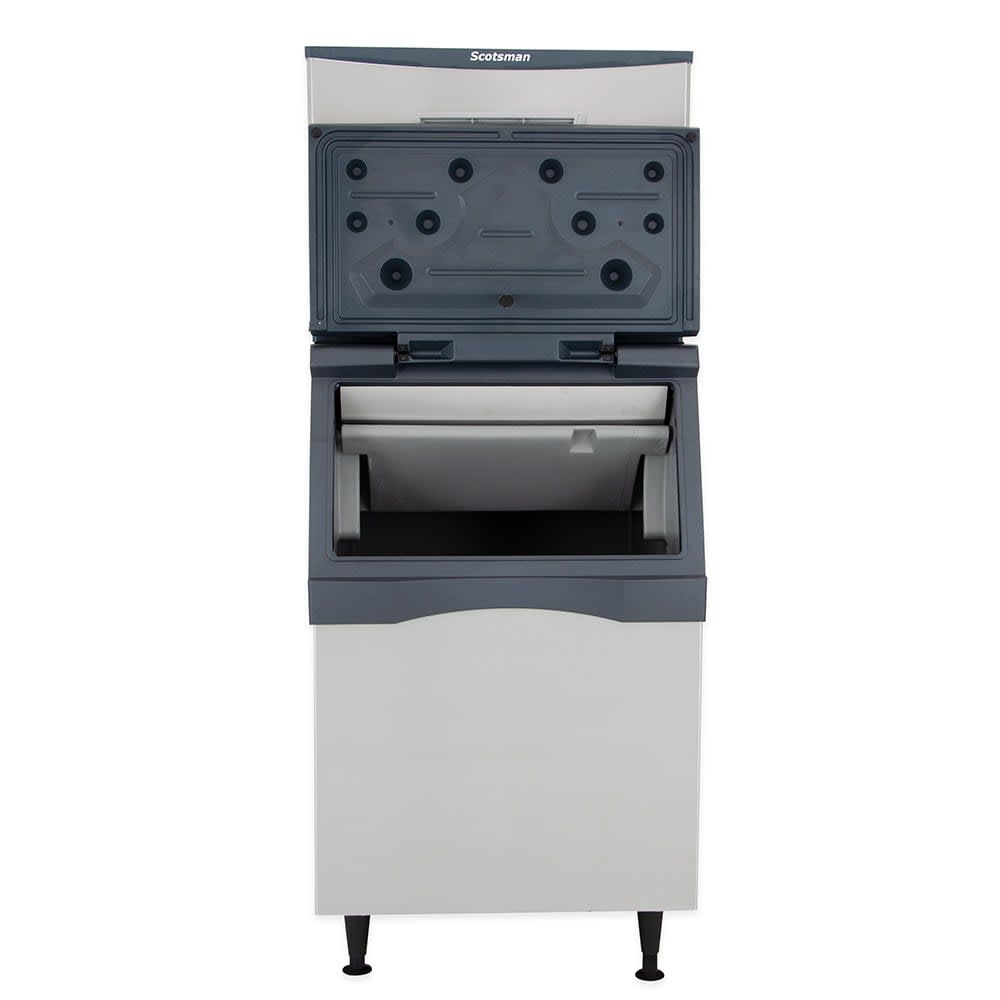

• Spring-loaded door has hidden hinges that support cleaning
• Baffle is removable without tools
• Recessed drain fitting provides flexibility during install
• Comes with a scoop and a built-in holder
• Rotocast plastic construction resists corrosion

Dimensions & Utilities

• Ice Maker
  • 30.7 in. W x 24 in. D x 23.01 in. H
  • 13.5 A, 4.97 kW
  • 115 V/60 Hz/1 ph
• Bin
  • 30.5 in. W x 34 in. D x 37 in. H

From The Manufacturer

C0330SW-1 Ice Maker: Prodigy Plus Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 420 lb/24 hours at 70°/50° (326 lb AHRI certified at 90°/70°), stainless steel finish, small cube size, 115v/60/1-ph, 13.5 amps, cULus, NSF, CE; B330P Ice Bin: Ice Bin, top-hinged front-opening door, 344 lb application capacity, for top-mounted ice maker, polyethylene liner, rotocast plastic construction, includes 6″ legs, NSF

*Image may not depict product color, inclusions or accessories.
