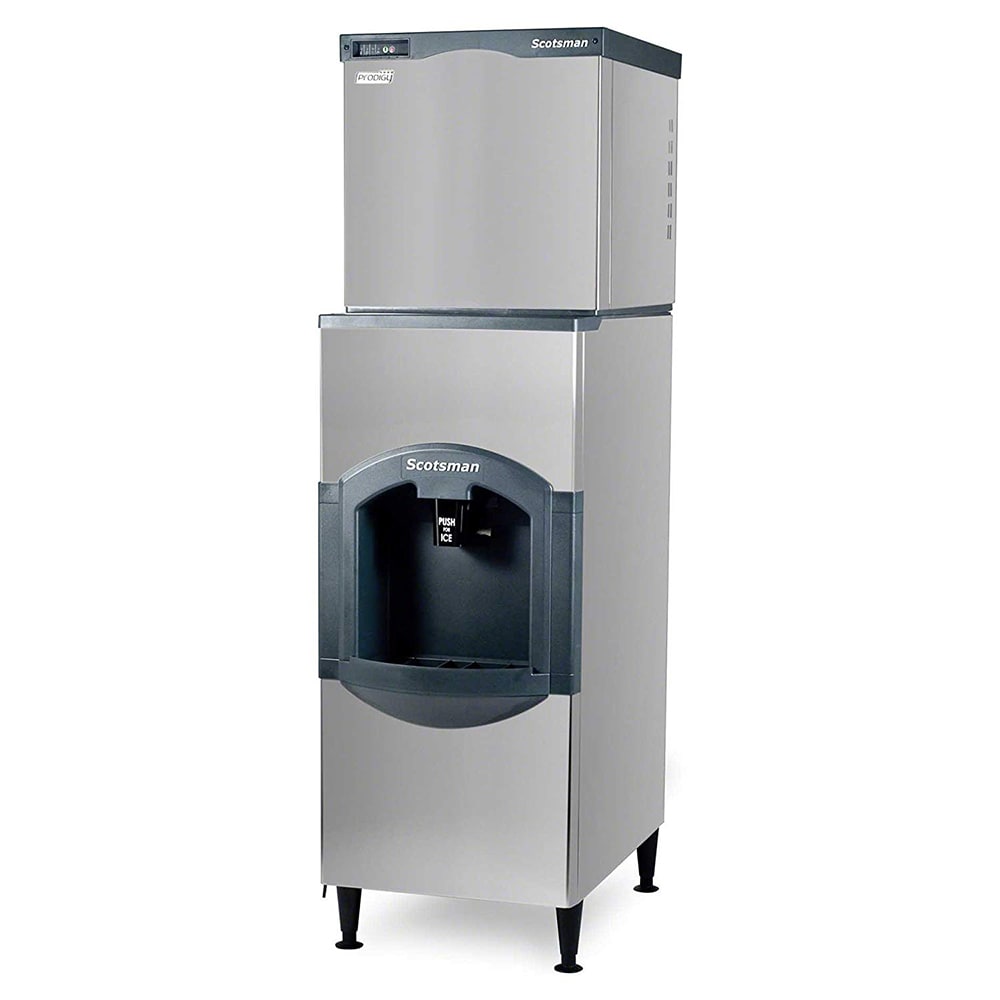

Scotsman C0330MW-1/HD30B-1 Description
The Scotsman C0330MW-1/HD30B-1 ice machine with dispenser has a self-aligning front panel that is removable to access internal components. When the bin needs to be cleaned, the top panel removes for access without removing the ice machine head. Ice moves from the maker to the dispenser with the Harvest Assist feature, which uses a probe and hot gas. An antimicrobial agent and a WaterSense purge control reduce the growth of bacteria between cleanings.
A QR code on the unit provides access to service information and warranty history. AutoAlert lights turn on to inform the operator of issues and the operating status. Ice is dispensed using a push chute, and the dispenser is insulated with foam polyurethane to prevent ice from melting quickly. The Scotsman C0330MW-1/HD30B-1 ice machine with dispenser can produce 420 pounds of ice every 24 hours and store 180 pounds.
Product Details
- 420-lb. ice production capacity
- 326-lb. AHRI-certified ice production capacity
- AutoAlert lights inform the operator if issues arise
- QR code connects the operator with warranty history and service information
- One-touch cleaning
- Air filter is located on the front
- Front panel is self-aligning
- WaterSense purge control slows bacteria growth between cleanings
- Harvest Assist helps move ice to the bin
- Antimicrobial agent protects surfaces from scale
- Uses R404A refrigerant
- Required ambient air temperature: 50-100 degrees F
- Required incoming water temperature: 40-100 degrees F
- Required incoming water pressure: 20-80 PSIG
- 5,200 BTU
- 13.5 A, 4.97 kW
- 115 V/60 Hz/1 ph
- Ice dimensions: 0.875 in. x 0.875 in. x 0.875 in.
- Overall dimensions: 30 in. W x 33.5 in. D x 76.26 in. H
Dispenser Features
- 180-lb. storage capacity
- Push chute is easy to activate for dispersal of ice
- Metallic cabinet is corrosion resistant
- Top panel is removable for accessibility
- Polyurethane foam insulation retains cold air to prevent ice from melting quickly
- 115 V/60 Hz/1 ph, 11-ft. power cord
From The Manufacturer
C0330MW-1 Ice Maker: Prodigy Plus Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 420 lb/24 hours at 70°/50° (326 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 115v/60/1-ph, 13.5 amps, cULus, NSF, CE; HD30B-1 Ice Dispenser: iceValet Hotel/Motel Ice Dispenser, floor model, push dispensing, 180 lb storage capacity, designed for 30″ wide top mount cube-type ice makers, stainless front & sides, includes 6″ legs, 115v/60/1-ph, 2.1 amps, NSF, cULus
