Description

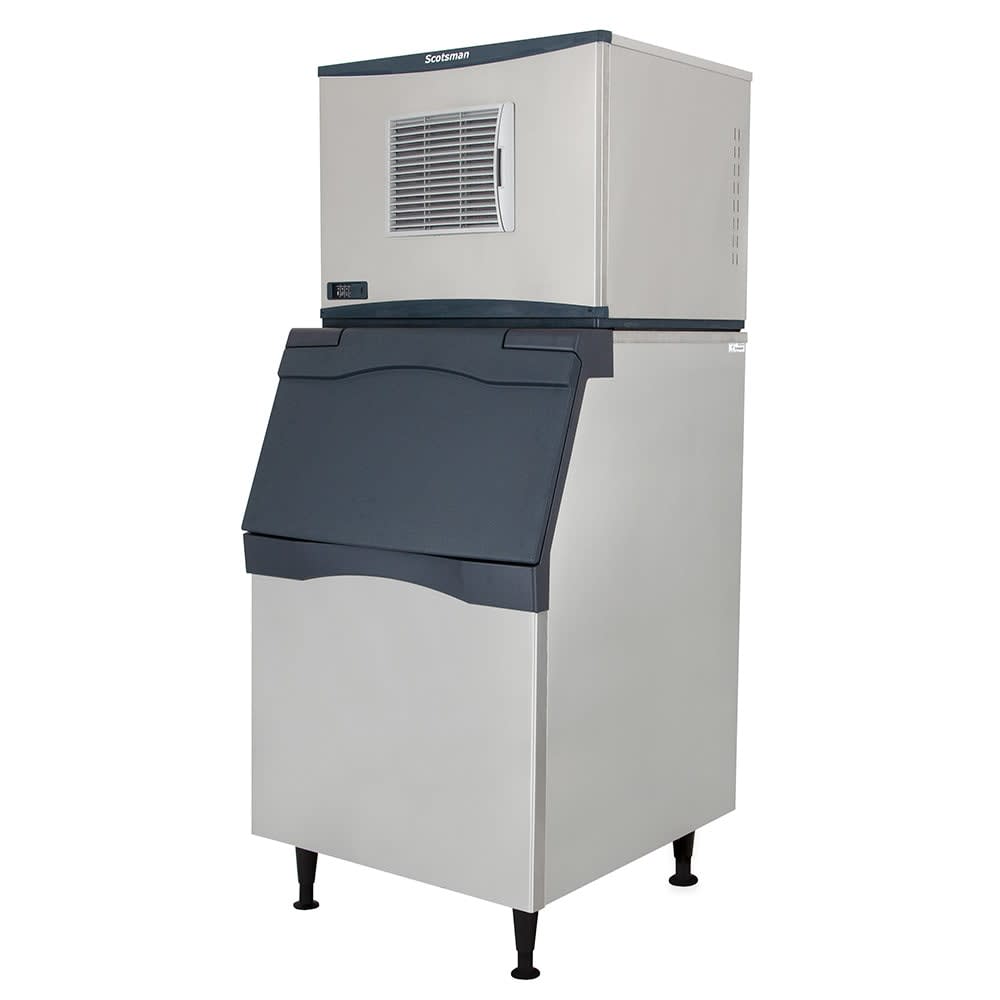

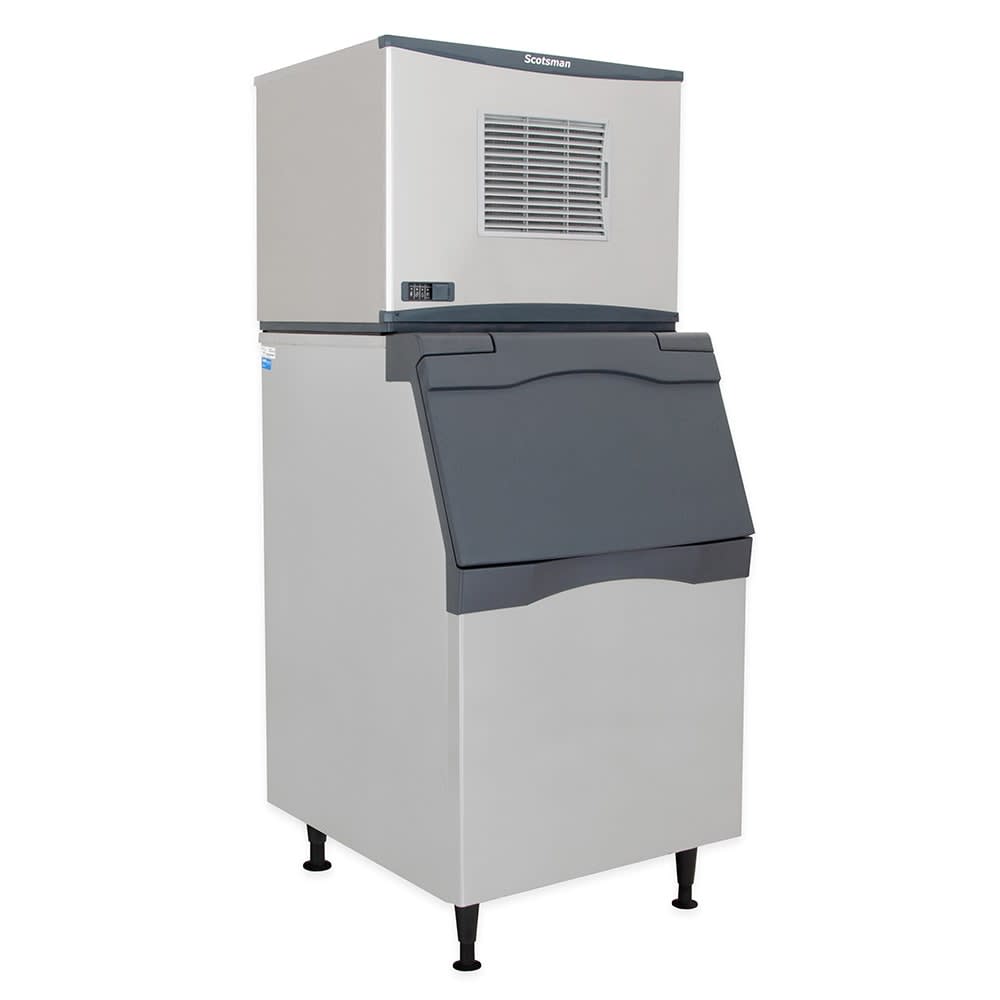

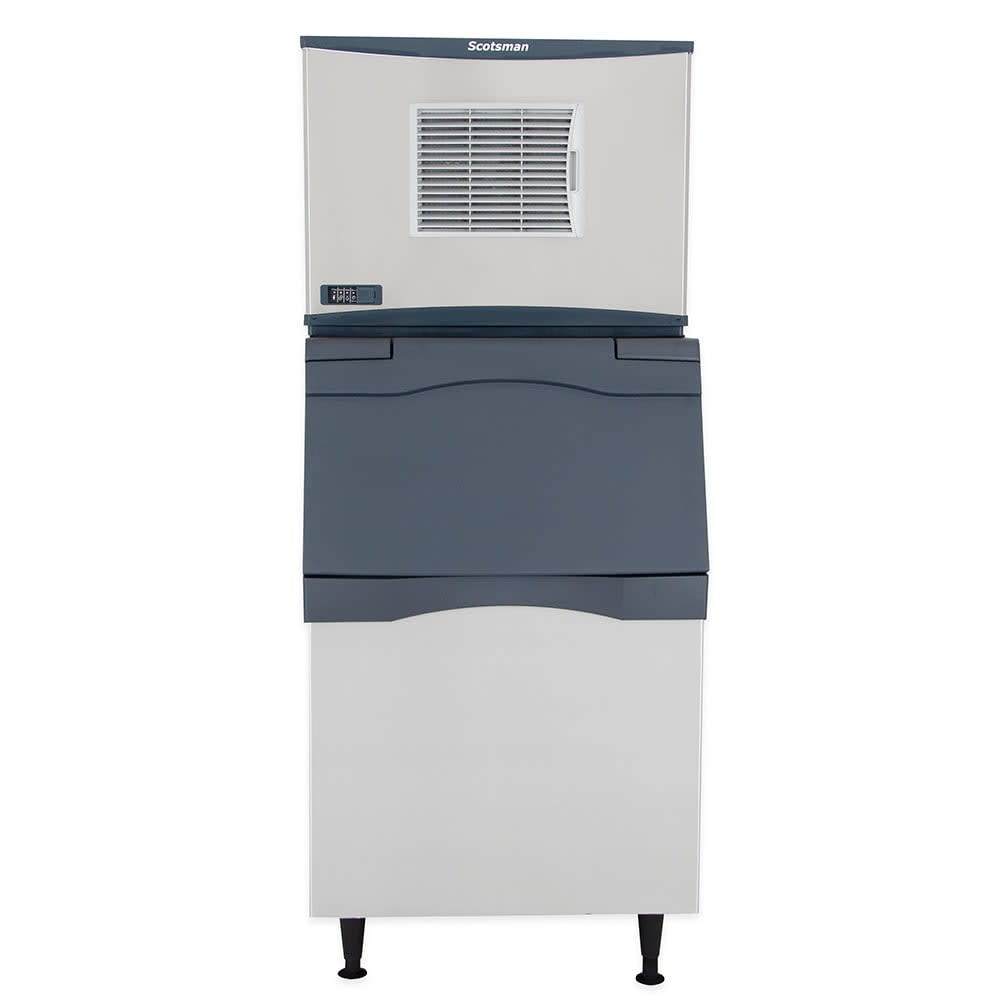

The Scotsman C0330MA-1/B330P Prodigy Plus ice cube machine and bin have a stainless steel exterior with a metallic finish to resist scratches and dents. This unit can make 400 pounds of ice and has a Harvest Assist feature that pushes ice into the bin with hot gas and a probe. It has an air-cooled, self-contained refrigeration system and an air filter located at the front to improve air circulation, while the WaterSense purge control feature adjusts water quality to reduce scale buildup. Technical service and warranty information is provided to the user with the QR code on the front of the unit. Antimicrobial technology is built-in to keep the machine sanitized between cleanings, and all of the internal components are accessible through the removable, self-aligning front panel.
The Scotsman C0330MA-1/B330P ice bin can store 344 pounds and includes an ice scoop with a built-in holder. Between the liner and the wall, polyurethane insulation is foamed in place to provide structure. For flexible installation, the drain is recessed and the baffle can be removed to simplify cleaning. With hidden hinges, the door is spring-loaded for safe opening and closing. The polyethylene interior protects against scuffs and scratches from the ice scoop.
Product Details
- Part of the Prodigy Plus series
- 400-lb. daily ice production
- 288-lb. daily AHRI-certified ice production
- Cube size: 0.875 in. x 0.875 in. x 0.875 in.
- Air-cooled, self-contained refrigeration system

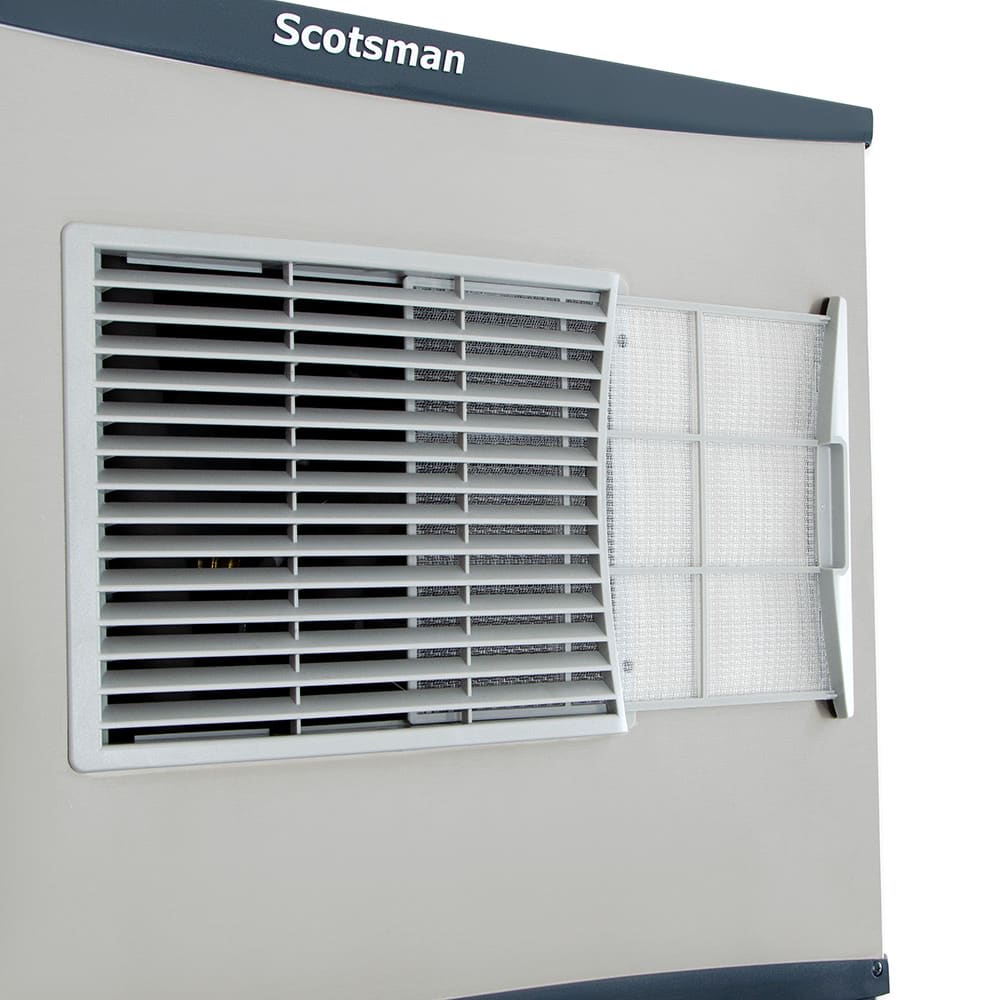

- Front-located air filter provides better air circulation than side- and rear-located filters
- Harvest Assist pushes ice into the bin with a probe and a small amount of hot gas
- WaterSense purge control adjusts the water quality
- Constant monitoring and servicing is unnecessary with one-touch cleaning

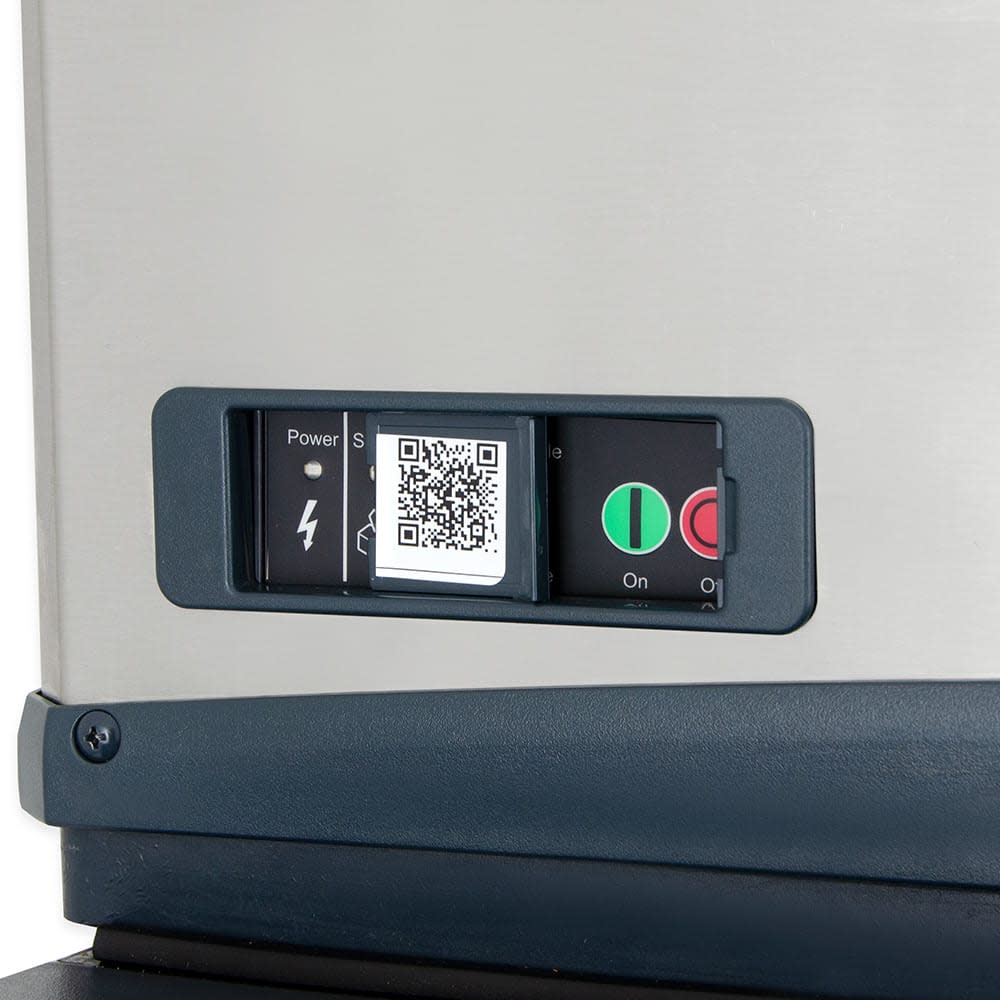

- Technical service and warranty information is provided with the QR code
- An antimicrobial agent is built in to keep the machine sanitized during cleaning

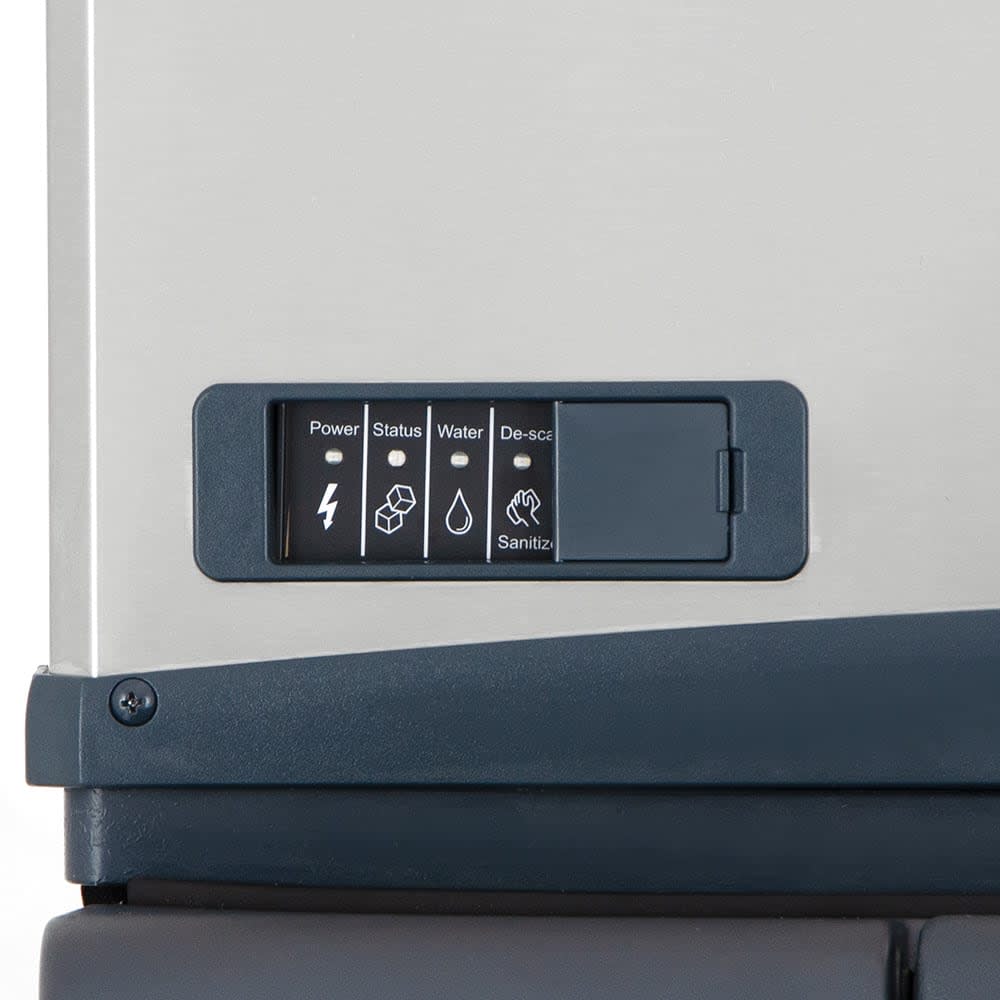

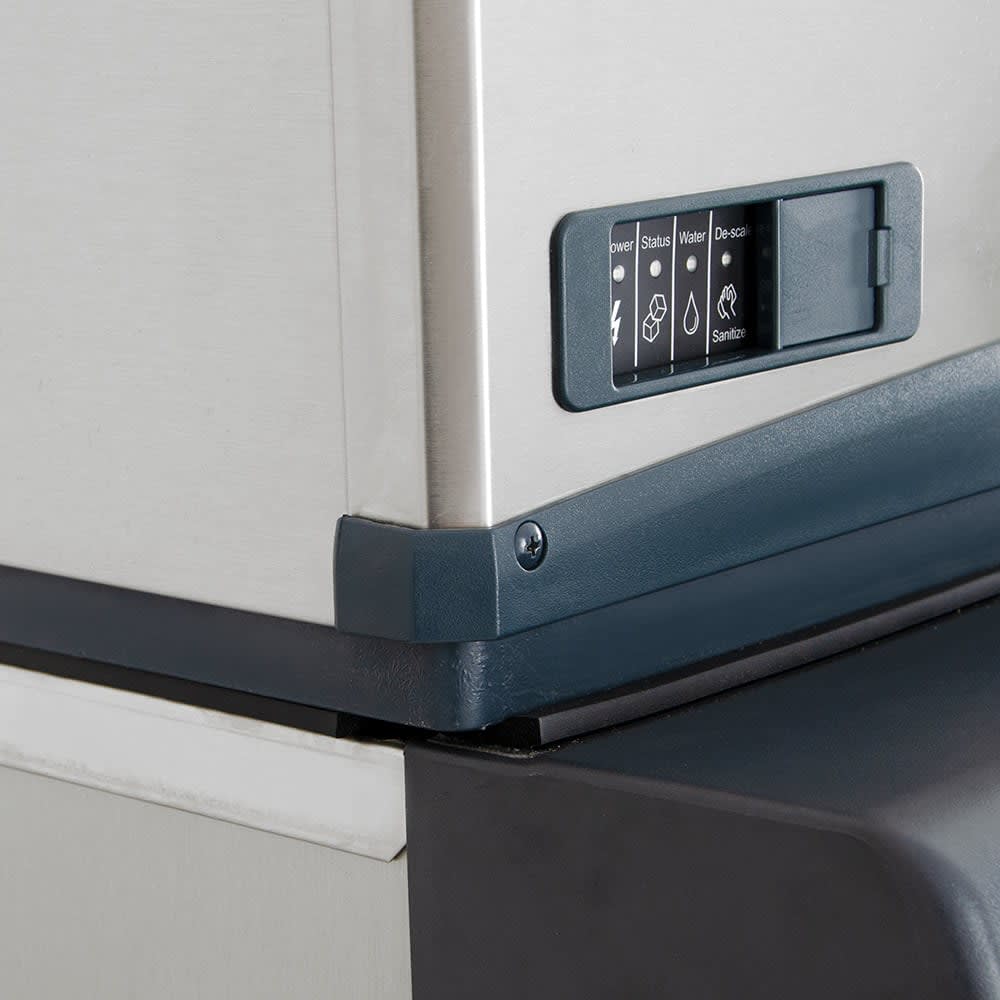

- Operating status is displayed with AutoAlert LED lights
- Internal components are accessible through the removable, self-aligning front panel
- Uses R404A refrigerant
- Ambient air temperature: 50-100 degrees F
- Incoming water temperature: 40-100 degrees F
- Incoming water pressure: 20-80 PSI
- 5,200 BTU
Ice Bin Features
- 344-lb. storage capacity
- Stainless steel exterior resists scratches and dents
- Metallic finish
- Polyurethane insulation prevents ice from melting quickly
- Protects against scuffs with polyurethane interior
- Recessed drain fitting for flexible installation

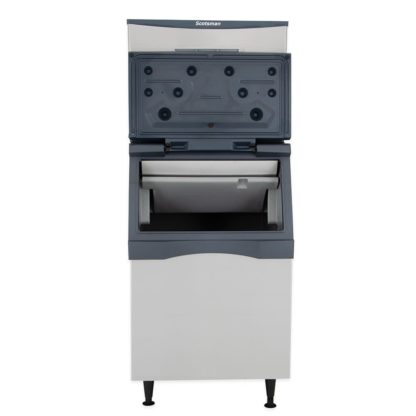

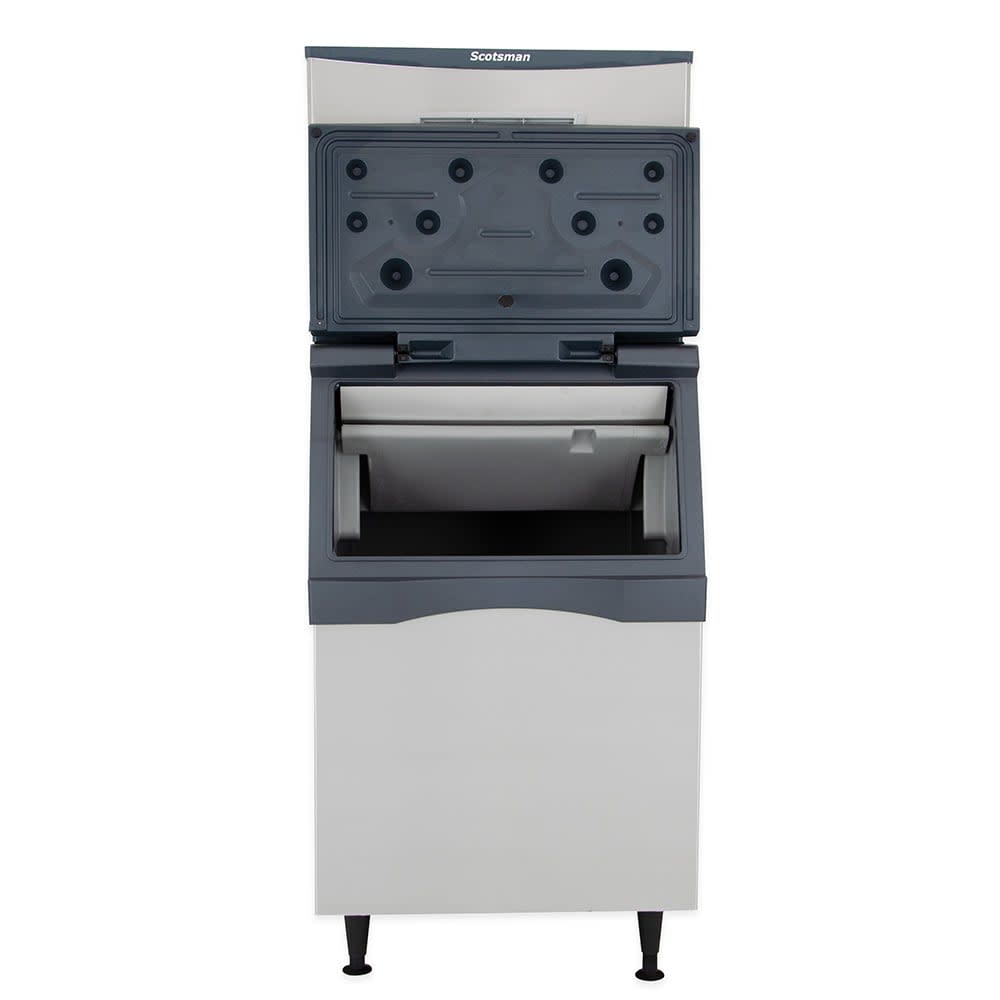

- Spring-loaded door for safe opening and closing
- Baffle is removable to simplify cleaning
- Includes ice scoop with built-in scoop holder

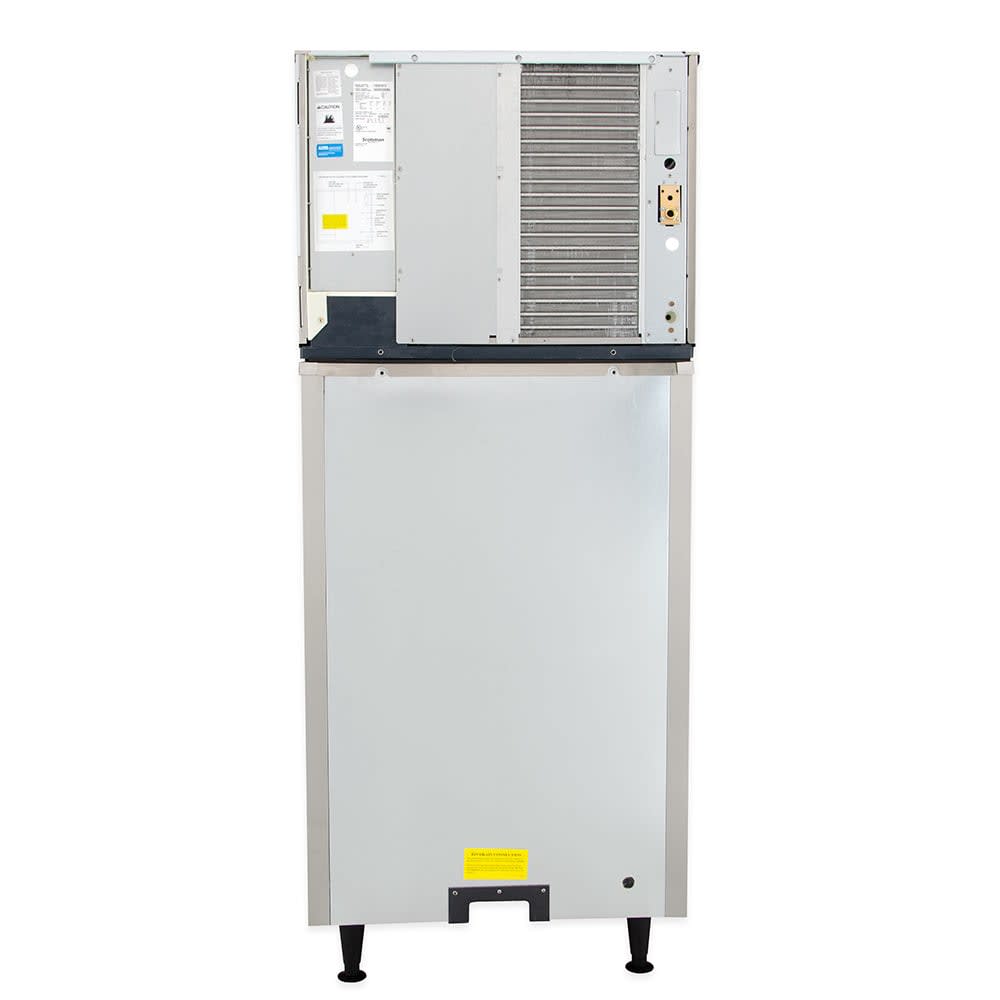

- Requires 6-in. clearance at the back for utility connections
Dimensions & Utilities
- Ice head: 30.7 in. W x 24 in. D x 23 in. H
- Bin: 30.5 in. W x 34 in. D x 37 in. H
- 14.3 A, 6.23 kW
- 115 V/60 Hz/1 ph
From The Manufacturer

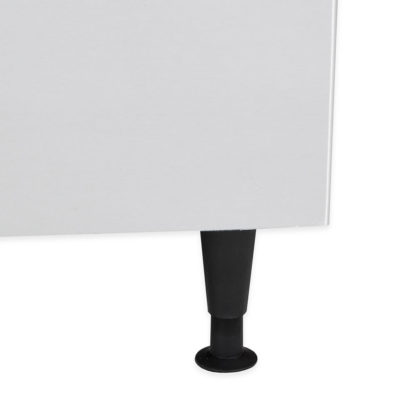

C0330MA-1 Ice Maker: Prodigy Plus Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 400 lb/24 hours at 70°/50° (288 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 115v/60/1-ph, 14.3 amps, cULus, NSF, CE; B330P Ice Bin: Ice Bin, top-hinged front-opening door, 344 lb application capacity, for top-mounted ice maker, polyethylene liner, rotocast plastic construction, includes 6″ legs, NSF
*Image may not depict product color, inclusions or accessories.
