Description
Scotsman C0322SW-1/B322S

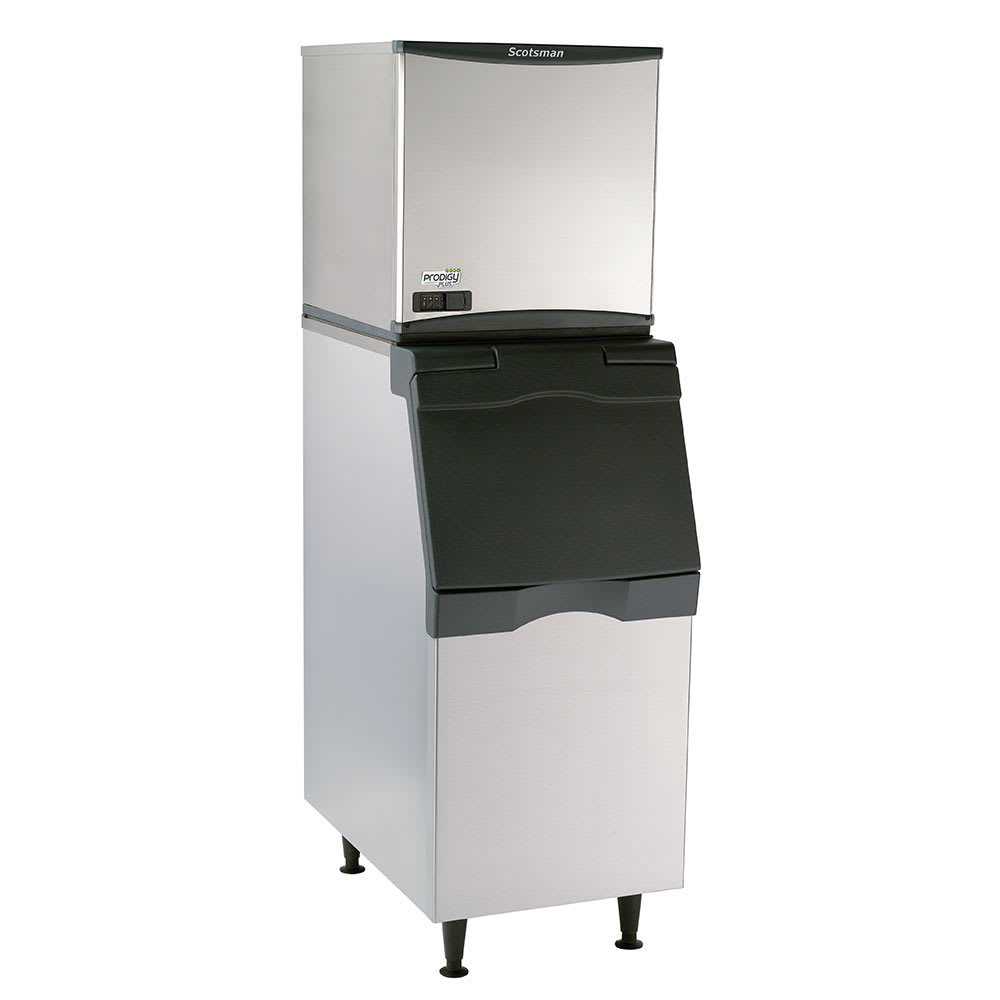

The Scotsman C0322SW-1/B322S Prodigy Plus ice cube machine and bin have a stainless steel exterior with a metallic finish that resists stains and scratches. With a storage capacity of 370 pounds, the bin has a polyethylene interior that is dent and scuff resistant. It has polyurethane foamed insulation between the wall and liner to help preserve ice, while the spring-loaded door has hidden hinges to facilitate opening and closing. An ice scoop is included with a built-in scoop holder.
The Scotsman C0322SW-1/B322S ice maker with bin can make 366 pounds of ice daily and has a water-cooled, self-contained refrigeration system. Its WaterSense purge control monitors and corrects the water quality to reduce scale buildup. By using hot gas and a probe, the Harvest Assist feature guides ice into the bin. Warranty and technical service information is provided through the QR code, and the self-aligning front panel is removable to access all internal components. An antimicrobial agent is built in to certain components to deter bacteria growth between cleanings.
Product Details
- Part of the Prodigy Plus series
- 366-lb. daily ice production
- 292-lb. daily AHRI-certified ice production
- Water-cooled, self-contained refrigeration system
- WaterSense purge control monitors and corrects water quality to reduce scale buildup
- One-touch cleaning
- By using hot gas and a probe, the Harvest Assist feature guides ice into the bin
- Antimicrobial is built in to major components to slow bacteria growth
- QR code provides warranty and technical service information
- Self-aligning front panel can be removed for internal component access
- AutoAlert LED lights display operating status to keep the user informed
- Uses R404A refrigerant
- Incoming water temperature: 40-100 degrees F
- Incoming water pressure: 20-80 PSI
- Ambient air temperature: 50-100 degrees F
- 5,200 BTU
- 11.9 A, 5.23 kW
- 115 V/60 Hz/1 ph
- Ice cube dimensions: 0.875 in. x 0.875 in. x 0.375 in.
- Ice head dimensions: 22.67 in. W x 25.15 in. D x 23 in. H
Ice Bin Features
- 370-lb. storage capacity
- Stainless steel exterior has a metallic finish
- Door is insulated with foam polyurethane to retain cold air
- Polyethylene interior resists dents and scratches
- Drain fitting is recessed for flexible installation
- Spring-loaded door has hidden hinges to facilitate opening and closing
- Baffle is removable for cleaning
- Ice scoop is included with a built-in holder
- Requires 6-in. clearance at the back for utility connections
- Bin dimensions: 22.5 in. W x 34 in. D x 50 in. H
From The Manufacturer
C0322SW-1 Ice Maker: Prodigy Plus Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 366 lb/24 hours at 70°/50° (292 lb AHRI certified at 90°/70°), stainless steel finish, small cube size, 115v/60/1-ph, 11.9 amps, cULus, NSF, CE; B322S Ice Bin: Ice Bin, top-hinged front-opening door, 370 lb application capacity, for top-mounted ice maker, polyethylene liner, metallic finish exterior, includes 6″ legs, NSF
*Image may not depict product color, inclusions or accessories.
