Description
Scotsman C0322SA-1/ID150B-1/KBT42 Description

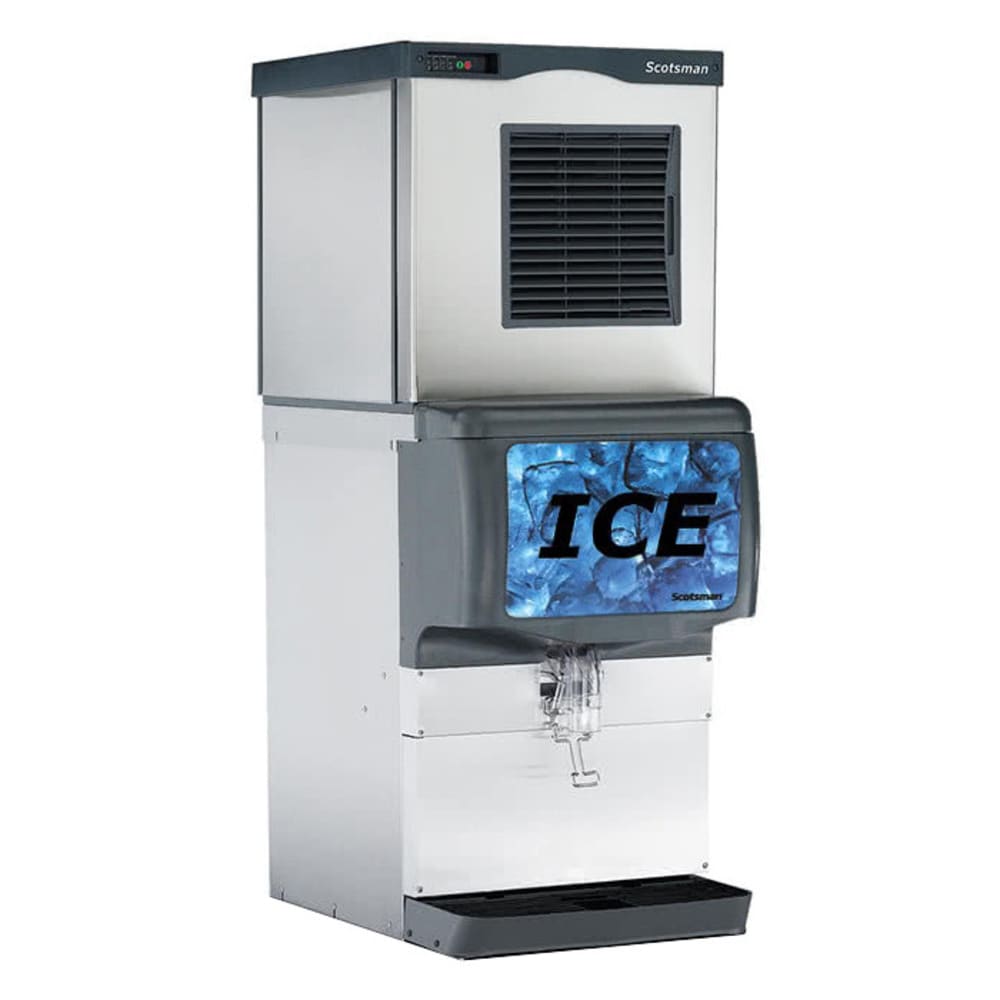

To resists scratches and dents, the Scotsman C0322SA-1/ID150B-1/KBT42 Prodigy Plus ice cube machine and countertop dispenser with bin top installation kit have a stainless steel exterior with a metallic finish. With a 150-pound storage capacity, the countertop dispenser has an insulated drip tray that minimizes condensation. For simplified cleaning and servicing, internal components can be accessed from the front, while a durable agitator motor reduces bridging and jamming to extend the life of the unit. Off-cycle agitation is adjustable to accommodate different ice forms and ambient conditions. The dispenser includes a KBT42 kit to attach the machine head to the dispenser properly.
The Scotsman C0322SA-1/ID150B-1/KBT42 ice cube machine has an air-cooled, self-contained refrigeration system and a front-located air filter for improved air circulation. It can make 356 pounds of ice and has a WaterSense purge control to decrease scale buildup by correcting the water quality. One-touch cleaning minimizes constant monitoring and servicing, while an integral antimicrobial agent slows bacteria growth between cleanings. Operators can receive technical service and warranty information with the QR code. The Harvest Assist feature uses hot gas and a probe to push ice into the bin and maintain a steady ice supply.
Product Details
- Part of the Prodigy Plus series
- 356-lb. daily ice production
- 232-lb. daily AHRI-certified ice production
- WaterSense purge control decreases scale buildup by correcting the water quality
- Front-located air filter improves air circulation
- One-touch cleaning minimizes constant monitoring and servicing
- Harvest Assist uses hot gas and a probe to push ice into the bin
- Between cleanings, an antimicrobial agent protects the machine
- Users can receive technical service and warranty information with the QR code on the front of the unit
- Removable, self-aligning front panel provides access to internal components
- AutoAlert LED lights display operating status
- Air-cooled, self-contained refrigeration system
- Uses R404A refrigerant
- Ambient air temperature: 50-100 degrees F
- Incoming water temperature: 40-100 degrees F
- Incoming water pressure: 20-80 PSI
- 5,200 BTU
- 12.7 A, 6.95 kW
- 115 V/60 Hz/1 ph
- Ice cube dimensions: 0.875 in. x 0.875 in. x 0.375 in.
- Ice head dimensions: 22.67 in. W x 25.15 in. D x 23 in. H
Ice Dispenser Features
- 150-lb. storage capacity
- Durable agitator motor reduces bridging and jamming
- Off-cycle agitation is adjustable to accommodate different ambient conditions and ice forms
- Insulated drip tray minimizes condensation
- Includes KBT42 kit for installing the ice machine head onto the dispenser
- To simplify cleaning and servicing, internal components can be accessed from the front
- Requires 6-in. clearance on left, right, and back sides for utility connections and ventilation
- 15 A
- 115 V/60 Hz/1 ph
- Dispenser dimensions: 22.25 in. W x 30.69 in. D x 39.63 in. H
From The Manufacturer
C0322SA-1 Ice Maker: Prodigy Plus Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 356 lb/24 hours at 70°/50° (232 lb AHRI certified at 90°/70°), stainless steel finish, small cube size, 115v/60/1-ph, 12.7 amps, cULus, NSF, CE; ID150B-1 Ice Dispenser: Ice Dispenser, counter model, 150 lb capacity, designed for cube-type ice, stainless steel exterior, cup activated, 115v/60/1-ph, NSF, cULus; KBT42 Ice Bin Top: Bin Top, for use with 22″ cuber or 21″ nugget maker (except EH222) on ID150 dispensers
*Image may not depict product color, inclusions or accessories.
