Description
Scotsman C0322SA-1/B322S

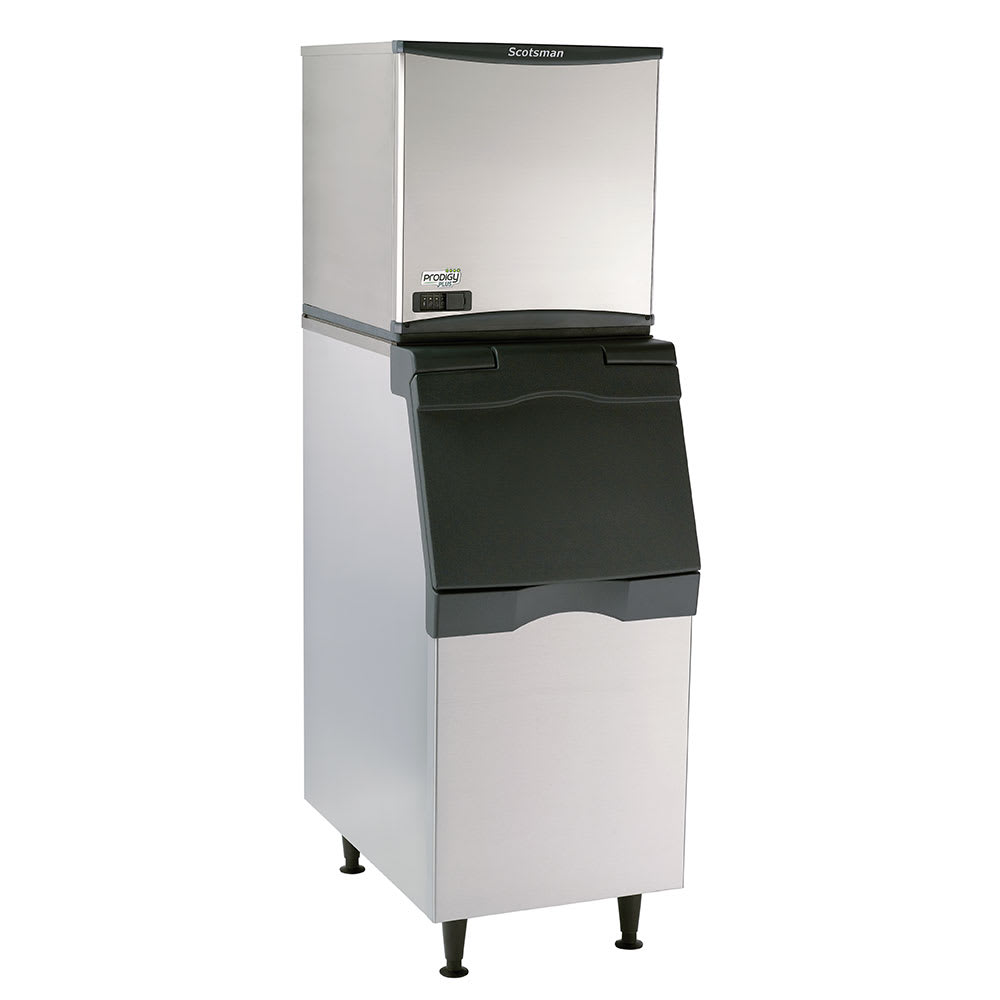

The Scotsman C0322SA-1/B322S Prodigy Plus ice cube machine and bin have a stainless steel exterior and metallic finish that resists dents and scratches. With a 370-pound storage capacity, the bin has foamed-in-place polyurethane insulation to create structure. A polyethylene interior resists scuffs and scratches, while the drain fitting is recessed for flexible installation. The spring-loaded door has hidden hinges for effortless opening and closing, while a scoop is included with a holder built into the bin.
The Scotsman C0322SA-1/B322S ice cube machine has an air-cooled, self-contained refrigeration system, while a front air filter creates ideal air circulation. It makes 356 pounds of ice daily, and the front panel is removable and self-aligning to provide access to internal components. To decrease scale buildup, the WaterSense purge control adjusts incoming water quality, and constant servicing and monitoring are not necessary with one-touch cleaning. The Harvest Assist directs ice into the bin with hot gas and a probe.
Product Details
- Part of the Prodigy Plus series
- 356-lb. daily ice production
- 232-lb. daily AHRI-certified ice production
- Built-in antimicrobial technology prevents scale growth between cleanings
- AutoAlert LED lights display operating status
- To decrease scale buildup, the WaterSense purge control adjusts the quality of incoming water
- One-touch cleaning eliminates constant servicing and monitoring
- Removable front panel is self-aligning to provide internal component access
- Harvest Assist directs ice into the bin with hot gas and a probe
- Instantly receive warranty and technical service information with a QR code on the front of the unit
- Air-cooled, self-contained refrigeration system
- Front-located air filter creates better air circulation than a side- or rear-located filter
- Uses R404A refrigerant
- Incoming water pressure: 20-80 PSI
- Incoming water temperature: 40-100 degrees F
- Ambient air temperature: 50-100 degrees F
- 5,200 BTU
- 12.7 A,6.95 kW
- 115 V/60 Hz/1 ph
- Ice cube dimensions: 0.875 in. x 0.875 in. x 0.375 in.
- Ice head dimensions: 22.67 in. W x 25.15 in. D x 23 in. H
Bin Features
- 370-lb. storage capacity
- Stainless steel exterior has a metallic finish
- Foamed-in-place polyurethane insulation prevents ice from melting quickly
- Polyethylene interior resists scuffs and scratches
- For flexible installation, the drain fitting is recessed
- Spring-loaded door has hidden hinges to simplify opening and closing
- Removable baffle facilitates cleaning
- Ice scoop is included with built-in holder
- Requires 6-in. clearance at the back for utility connections
- Bin dimensions: 22.5 in. W x 34 in. D x 50 in. H
From The Manufacturer
C0322SA-1 Ice Maker: Prodigy Plus Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 356 lb/24 hours at 70°/50° (232 lb AHRI certified at 90°/70°), stainless steel finish, small cube size, 115v/60/1-ph, 12.7 amps, cULus, NSF, CE; B322S Ice Bin: Ice Bin, top-hinged front-opening door, 370 lb application capacity, for top-mounted ice maker, polyethylene liner, metallic finish exterior, includes 6″ legs, NSF
*Image may not depict product color, inclusions or accessories.
