Scotsman C0322MW-1/ID150B-1/KBT42 Description

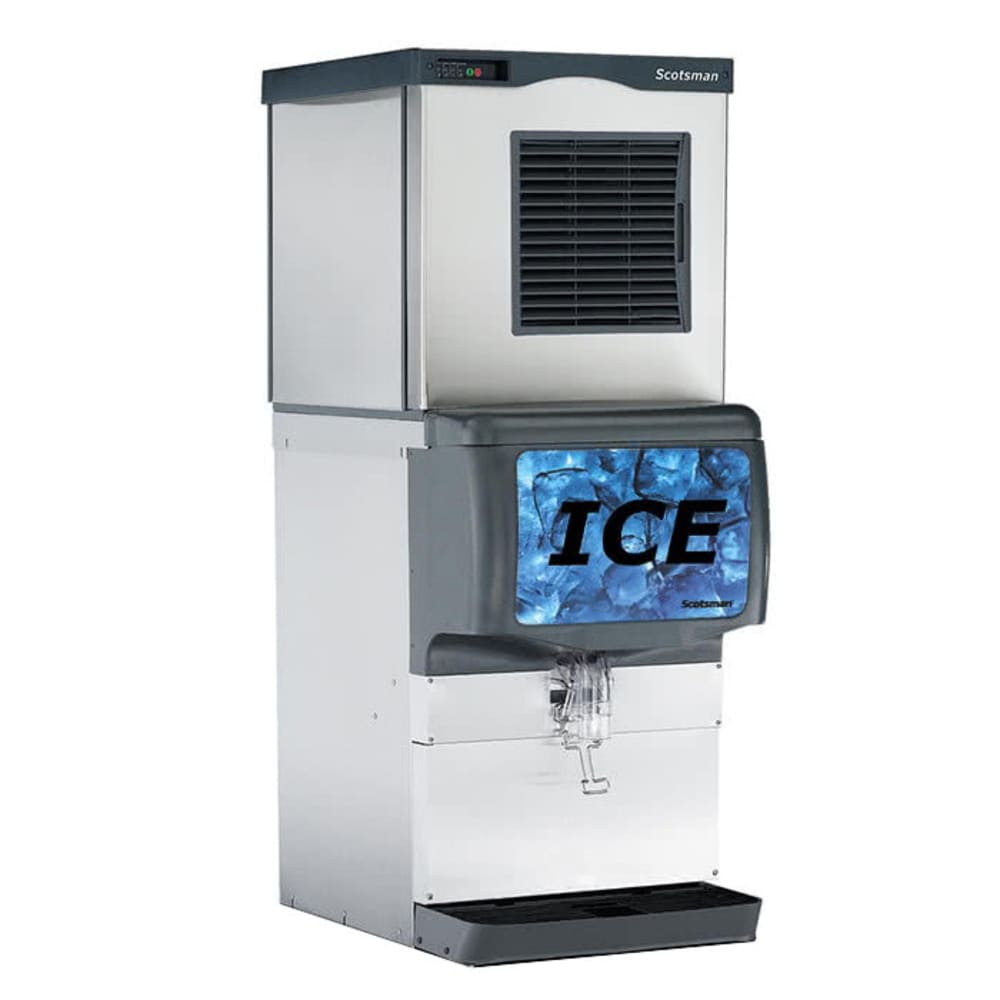

The Scotsman C0322MW-1/ID150B-1/KBT42 Prodigy Plus ice cube machine and countertop dispenser with bin top installation kit have a stainless steel exterior with a metallic finish. With a 150-pound capacity, all internal components in the countertop dispenser are accessible from the front. An insulated drip tray prevents condensation, and the heavy-duty agitator motor extends unit life while reducing bridging and ice jams. A kit is included for installing the ice machine head onto the dispenser.
The Scotsman C0322MW-1/ID150B-1/KBT42 ice cube machine has a water-cooled, self-contained refrigeration system and can make 366 pounds of ice daily. WaterSense purge control reduces scale buildup by adjusting the quality of incoming water, while a QR code is on the front provides technical service and warranty information. Operating status is displayed on the front with AutoAlert LED lights, and the Harvest Assist feature pushes ice into the bin with a probe and hot gas. To keep the unit sanitized between cleanings, an antimicrobial is built into the machine.
Product Details
- Part of the Prodigy Plus series
- 366-lb. daily ice production
- 292-lb. daily AHRI-certified ice production
- AutoAlert LED lights display operating status
- WaterSense purge control reduces scale buildup by adjusting incoming water quality
- Integral antimicrobial slows bacteria growth between cleanings
- Front panel is self-aligning and removable to access internal components
- One-touch cleaning eliminates constant monitoring and servicing
- QR code provides technical service and warranty information
- Harvest Assist pushes ice into the bin with a probe and hot gas
- Water-cooled, self-contained refrigeration system
- R404A refrigerant
- Ambient air temperature: 50-100 degrees F
- Incoming water temperature: 40-100 degrees F
- Incoming water pressure: 20-80 PSI
- 5,200 BTU
- 11.9 A, 5.23 kW
- 115 V/60 Hz/1 ph
- Ice cube dimensions: 0.875 in. x 0.875 in. x 0.875 in.
- Ice head dimensions: 22.67 in. W x 25.15 in. D x 23 in. H
Ice Dispenser Features
- 150-lb. storage capacity
- Off-cycle agitation is adjustable for different ice forms and surrounding conditions
- Heavy-duty agitator motor extends life while reducing bridging and jamming
- All internal components are accessible from the front
- Insulated drip tray prevents condensation
- Includes KBT42 kit for installing ice machine head onto dispenser
- Requires 6-in. clearance on right, left, and back sides for utility connections and ventilation
- 15 A
- 115 V/60 Hz/1 ph
- Dispenser dimensions: 22.25 in. W x 30.69 in. D x 39.63 in. H
From The Manufacturer
C0322MW-1 Ice Maker: Prodigy Plus Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 366 lb/24 hours at 70°/50° (292 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 115v/60/1-ph, 11.9 amps, CE, cULus, NSF; ID150B-1 Ice Dispenser: Ice Dispenser, counter model, 150 lb capacity, designed for cube-type ice, stainless steel exterior, cup activated, 115v/60/1-ph, NSF, cULus; KBT42 Ice Bin Top: Bin Top, for use with 22″ cuber or 21″ nugget maker (except EH222) on ID150 dispensers
*Image may not depict product color, inclusions or accessories.
