Description
Scotsman C0322MW-1/B322S

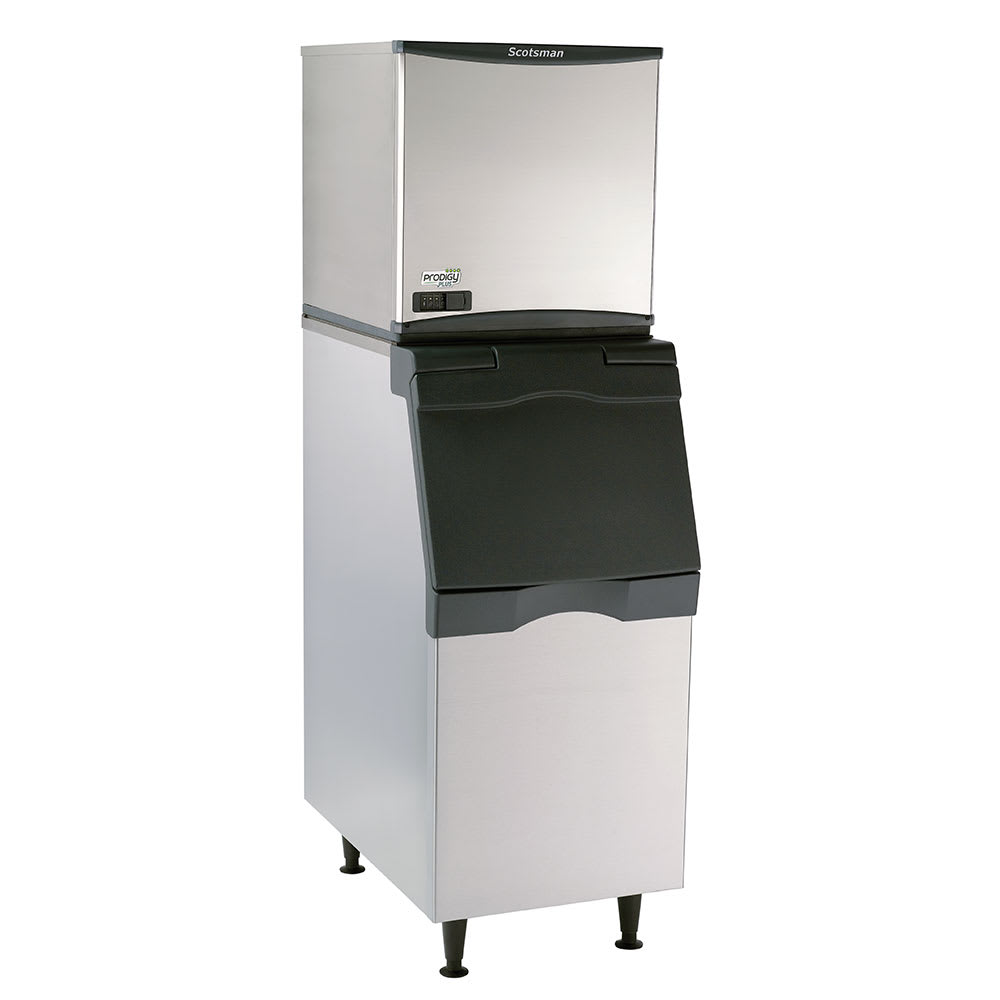

The Scotsman C0322MW-1/B322S Prodigy Plus ice cube machine and bin have a stainless steel exterior with a metallic finish. With a self-contained, water-cooled refrigeration system, the ice cube machine can make 366 pounds of ice daily. WaterSense purge control minimizes scale buildup, while the removable front panel is self-aligning for internal component access. To ensure a constant ice supply, the Harvest Assist feature guides ice into the bin using a probe and hot gas. User are kept aware of the unit’s operating status with the AutoAlert LED lights, and the QR code provides access to service and warranty information.
The Scotsman C0322MW-1/B322S ice bin has a 370-pound storage capacity and a polyethylene interior to resist dents and scuffs from the ice scoop. Foamed-in-place polyurethane insulation prevents ice from melting quickly, and the door is spring-loaded with hidden hinges for opening and closing. An ice scoop is included with a built-in holder to keep the scoop out of the ice.
Product Details
- Part of the Prodigy Plus series
- 366-lb. daily ice production
- 292-lb. daily AHRI-certified ice production
- Self-contained, water-cooled refrigeration system
- AutoAlert LED lights display operating status
- Built-in antimicrobial agent protects the machine between cleanings
- WaterSense purge control corrects incoming water quality to minimize scale buildup
- One-touch cleaning
- Removable front panel is self-aligning for access to internal components
- Harvest Assist guides ice into the bin using a probe and hot gas
- QR code connects users directly to technical service and warranty information
- R404A refrigerant
- Incoming water pressure: 20-80 PSI
- Incoming water temperature: 40-100 degrees F
- Ambient air temperature: 50-100 degrees F
- 5,200 BTU
- 11.9 A, 5.23 kW
- 115 V/60 Hz/1 ph
- Ice cube dimensions: 0.875 in. x 0.875 in. x 0.875 in.
- Ice head dimensions: 22.67 in. W x 25.15 in. D x 23 in. H
Bin Features
- 370-lb. storage capacity
- Polyethylene interior resists dents and scuffs
- Exterior has a metallic finish
- Polyurethane insulation retains cold air to prevent ice from melting quickly
- Recessed drain fitting provides flexibility for installation
- Removable baffle facilitates cleaning
- Spring-loaded door has hidden hinges for opening and closing
- Ice scoop included with scoop holder
- Requires 6-in. clearance at the back for utility connections
- Bin dimensions: 22 in. W x 34 in. D x 50 in. H
From The Manufacturer
C0322MW-1 Ice Maker: Prodigy Plus Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 366 lb/24 hours at 70°/50° (292 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 115v/60/1-ph, 11.9 amps, CE, cULus, NSF; B322S Ice Bin: Ice Bin, top-hinged front-opening door, 370 lb application capacity, for top-mounted ice maker, polyethylene liner, metallic finish exterior, includes 6″ legs, NSF
*Image may not depict product color, inclusions or accessories.
