Description
Scotsman C0322MA-1/ID150B-1/KBT42 Description

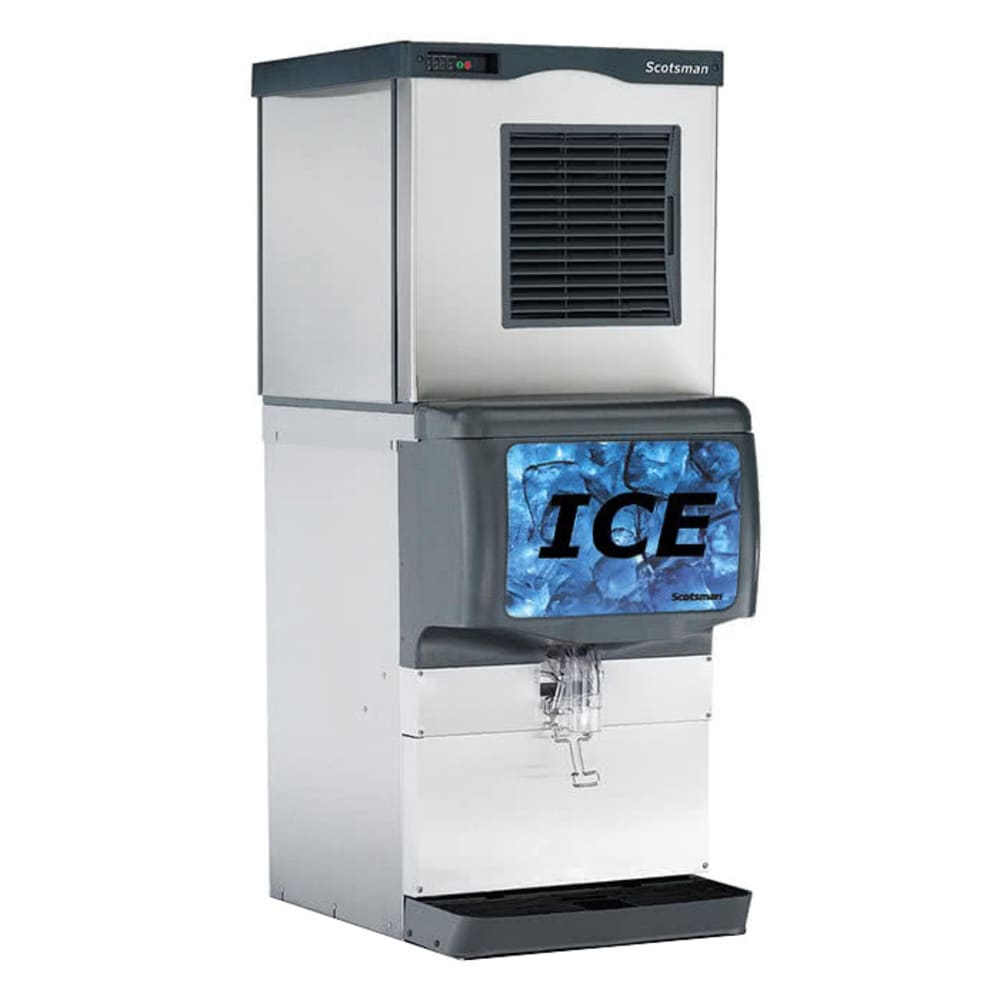

The Scotsman C0322MA-1/ID150B-1/KBT42 Prodigy Plus ice cube machine and countertop dispenser with bin top installation kit has a stainless steel exterior and a storage capacity of 150 pounds. It has a durable agitator motor that prolongs the unit’s life, while minimizing ice jams and bridging. Its insulated drip tray prevents condensation, and the internal components can be accessed from the front. Off-cycle agitation adjusts to different ice forms and surrounding conditions, and this dispenser comes with the KBT42 kit for installing the machine head onto the dispenser.
The Scotsman C0322MA-1/ID150B-1/KBT42 ice cube machine can make 356 pounds of ice every day and has a self-contained, air-cooled refrigeration system. Its front-located air filter creates better air circulation than a side- or rear-located filter. AutoAlert LED lights display the operating status, and the one-touch cleaning feature reduces monitoring and servicing needs. To reduce scale buildup, the WaterSense purge control adjusts incoming water quality, while the QR code guides the user directly to warranty and technical service information. The Harvest Assist feature uses a probe with a little hot gas to push ice into the bin.
Product Details
- Part of the Prodigy Plus series
- 356-lb. daily ice production
- 232-lb. daily AHRI-certified ice production
- AutoAlert LED lights display operating status
- Self-contained, air-cooled refrigeration system
- One-touch cleaning eliminates constant monitoring and servicing
- Front-located air filter creates better air circulation than a side- or rear-located filter
- To reduce scale buildup, the WaterSense purge control feature adjusts incoming water quality
- QR code guides users directly to warranty and technical service information
- Built-in antimicrobial protects the machine between cleanings
- Harvest Assist feature uses a probe with a slight amount of hot gas to push ice into the bin
- Removable front panel is self-aligning to provide access to internal components
- Uses R404A refrigerant
- Incoming water pressure: 20-80 PSI
- Incoming water temperature: 40-100 degrees F
- Ambient air temperature: 50-100 degrees F
- 5,200 BTU
- 12.7 A, 6.95 kW
- 115 V/60 Hz/1 ph
- Ice cube dimensions: 0.875 in. x 0.875 in. x 0.875 in.
- Ice head dimensions: 22.67 in. W x 25.15 in. D x 23 in. H
Ice Dispenser Features
- 150-lb. storage capacity
- Durable agitator motor prolongs life, while minimizing ice jams and bridging
- Adjustable off-cycle agitation for different ice forms and surrounding conditions
- Insulated drip tray prevents condensation
- Front-accessible internal components
- Includes KBT42 kit for installing the ice machine head onto the dispenser
- Requires 6-in. clearance on back, left, and right sides for utility connections and ventilation
- 15 A
- 115 V/60 Hz/1 ph
- Dispenser dimensions: 22.25 in. W x 30.69 in. D x 39.63 in. H
From The Manufacturer
C0322MA-1 Ice Maker: Prodigy Plus Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 356 lb/24 hours at 70°/50° (232 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 115v/60/1-ph, 12.7 amps, cULus, NSF, CE; ID150B-1 Ice Dispenser: Ice Dispenser, counter model, 150 lb capacity, designed for cube-type ice, stainless steel exterior, cup activated, 115v/60/1-ph, NSF, cULus; KBT42 Ice Bin Top: Bin Top, for use with 22″ cuber or 21″ nugget maker (except EH222) on ID150 dispensers
*Image may not depict product color, inclusions or accessories.
