Description

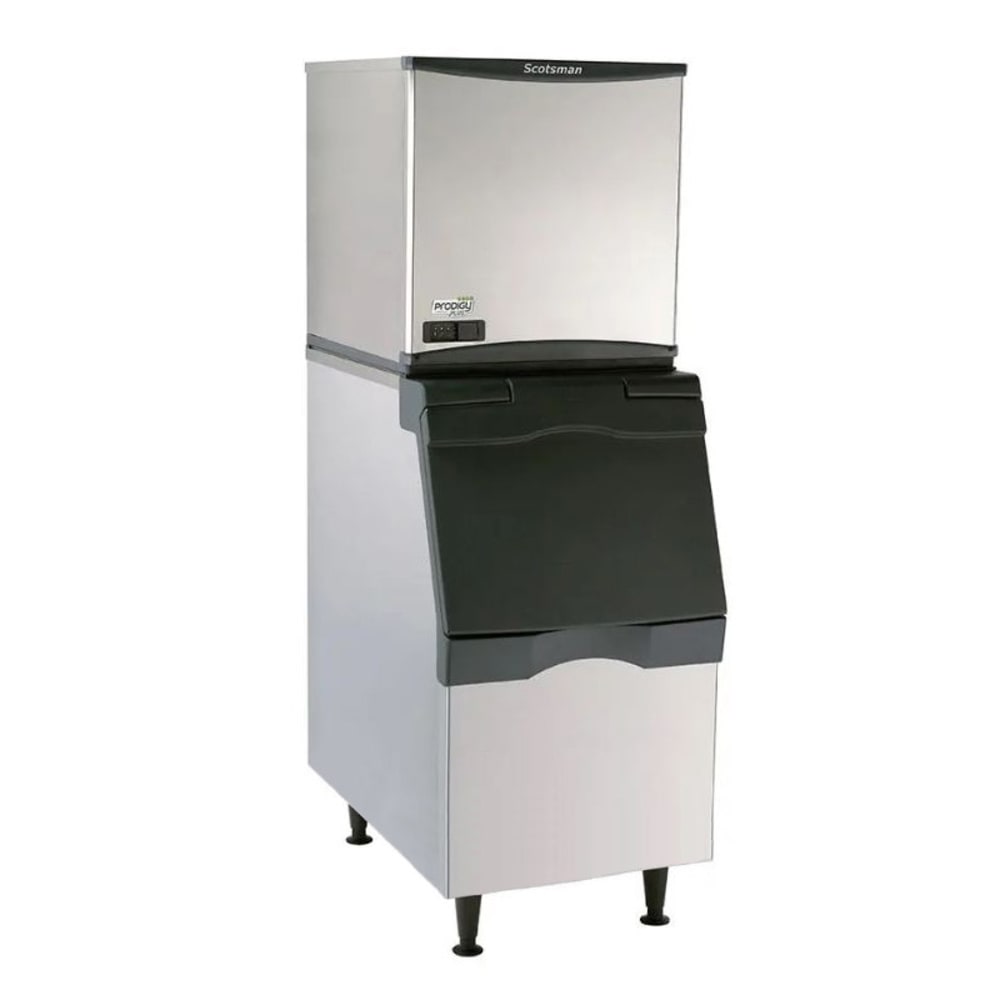

Scotsman C0322MA-1/B330P
Under ideal conditions, the Scotsman C0322MA-1/B330P Prodigy Plus ice maker and bin can make 356 pounds of ice in a day, and to create ice, the unit runs water over the evaporator plate. The condenser uses R-404A refrigerant to remove heat and as water freezes, it turns into medium-sized cubes. Finally, the plate heats up just enough to loosen the ice, and a Harvest Assist probe pushes ice out of the plate and into the bin.
To deter mold, the ice machine head’s internal components have built-in antimicrobial protection, while the WaterSense controls adjust the water levels for reduced limescale buildup. LED indicator lights show the ice machine’s operating conditions and help users determine problems, while for repairs, ice maker parts can be accessed through the front panel.
To save space, this Scotsman C0322MA-1/B330P ice machine and bin breathes through the front, reducing clearance requirements on the sides. Keeping the scoop out of the ice, the bin has a scoop holder, and for thorough cleaning, the bin features a removable baffle and polyethylene liner, and the ice machine head has a cleaning cycle.
Ice Maker Details
- Part of the Prodigy Plus series
- 356-lb. maximum daily ice production
- 232-lb. AHRI-certified daily ice production
- Medium cube size: 7/8 in. x 7/8 in. x 7/8 in.
- AutoAlert LED indicator lights
- QR code provides unit-specific warranty and service information
- Cleaning cycle simplifies routine maintenance
- Front-breathing design saves space on the sides
- Self-aligning front panel can be removed for component access
- WaterSense control adapts to water quality to reduce scale buildup
- Harvest Assist probe moves ice into the bin with minimal melting
- Antimicrobial protection built into internal components
- R-404A refrigerant
- 5,200 BTU of heat transfer capacity
Insulated Ice Bin Details
- 344-lb. storage capacity
- Spring-loaded door can be effortlessly opened and closed
- Sanitary polyethylene interior
- Built-in scoop holder helps keep ice contaminant free
- Rotocast plastic construction is lightweight and corrosion resistant
- Baffle is removable without tools
- Includes ice scoop
Ideal Operating Conditions
- Surrounding air temperature: 50-100 degrees F
- Incoming water temperature: 40-100 degrees F
- Incoming water pressure: 20-80 PSI
Dimensions & Utilities
- Ice machine: 22.67 in. W x 25.15 in. D x 24 in. H
- Ice bin: 30.5 in. W x 34 in. D x 37 in. H
- 12.7 A, 6.95 kW
- 115 V/60 Hz/1 ph
From The Manufacturer
Prodigy Plus Ice Maker with Bin, cube style, air-cooled, self-contained condenser, production capacity up to 356 lb/24 hours at 70°/50° (232 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 115v/60/1-ph, 12.7 amps, cULus, NSF, CE; Ice Bin with Bin Top: top-hinged front-opening door, 344 lb application capacity, for top-mounted ice maker, polyethylene liner, rotocast plastic construction, includes 6″ legs, NSF
*Image may not depict product color, inclusions or accessories.
