Description

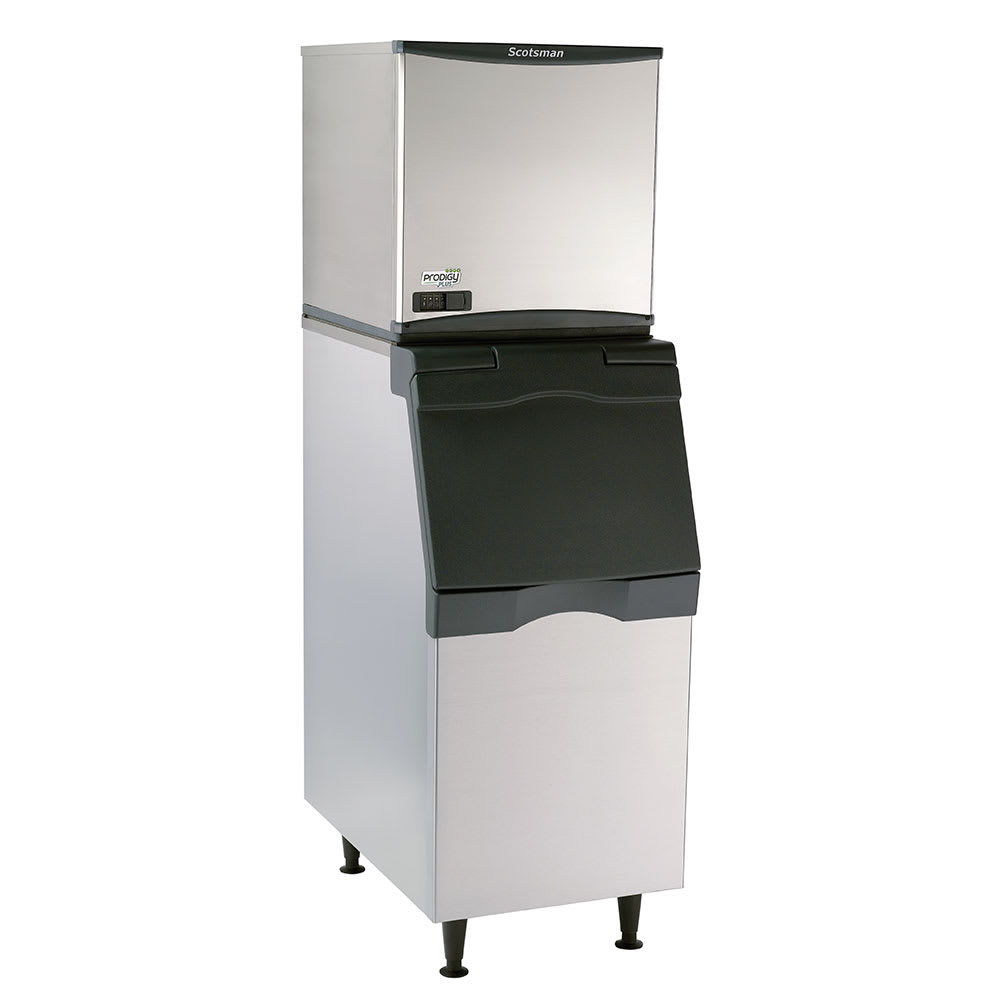

Scotsman C0322MA-1/B322S
The Scotsman C0322MA-1/B322S Prodigy Plus ice cube machine and bin have a metallic stainless steel exterior. It can make 356-pounds of ice every day with an air-cooled motor, and the air filter is located on the front of the machine for better air flow than a rear- or side-mounted filter. To keep the user informed, this machine has AutoAlert LED lights and a QR code that provides service and warranty information. WaterSense purge control minimizes scale buildup by adjusting incoming water quality. To ensure a constant ice supply, the Harvest Assist feature uses a small amount of hot gas and a probe to guide ice into the bin.
The Scotsman C0322MA-1/B322S ice bin has a 370-pound storage capacity, while a polyethylene interior resists scuffs and scratches. Polyurethane insulation is foamed between the wall and liner to provide structure and retain cold air. A spring-loaded door has hidden hinges for effortless opening and closing. The removable baffle facilitates cleaning, and an ice scoop is included with a built-in scoop holder.
Product Details
- Part of the Prodigy Plus series
- 356-lb. daily ice production
- 232-lb. daily AHRI-certified ice production
- Air-cooled, self-contained refrigeration system
- AutoAlert LED lights informs users about the unit’s operating status
- QR code provides access to technical service and warranty information
- One-touch cleaning eliminates the need for service and constant monitoring
- Air filter is located on the front of the machine for better breathability than a rear- or side-located filter
- Self-aligning front panel can be removed to access internal components
- WaterSense purge control minimizes scale buildup by adjusting water quality
- Harvest Assist uses a small amount of hot gas and a probe to guide ice into the bin
- Antimicrobial protection is built into the machine to protect it between cleanings
- R404A refrigerant
- Required ambient air temperature: 50-100 degrees F
- Required ambient water temperature: 40-100 degrees F
- Required incoming water pressure: 20-80 PSI
- 5,200 BTU
- 12.7 A, 6.95 kW
- 115 V/60 Hz/1 ph
- Ice cube dimensions: 0.875 in. x 0.875 in. x 0.875 in.
- Ice head dimensions: 22.67 in. W x 25.15 in. D x 23 in. H
Ice Bin Details
- 370-lb. storage capacity
- Exterior has a metallic finish
- Polyethylene interior resists scuffs and scratches
- Polyurethane insulation is foamed between the wall and liner to provide support and preserve ice
- Ice scoop and built-in scoop holder
- Removable baffle facilitates cleaning
- Recessed drain fitting supports flexibility during installation
- Spring-loaded door has hidden hinges for effortless opening and closing
- Requires 6-in. back clearance for utility connections
- Bin dimensions: 22 in. W x 34 in. D x 50 in. H
From The Manufacturer
C0322MA-1 Ice Maker: Prodigy Plus Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 356 lb/24 hours at 70°/50° (232 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 115v/60/1-ph, 12.7 amps, cULus, NSF, CE; B322S Ice Bin: Ice Bin, top-hinged front-opening door, 370 lb application capacity, for top-mounted ice maker, polyethylene liner, metallic finish exterior, includes 6″ legs, NSF
*Image may not depict product color, inclusions or accessories.
