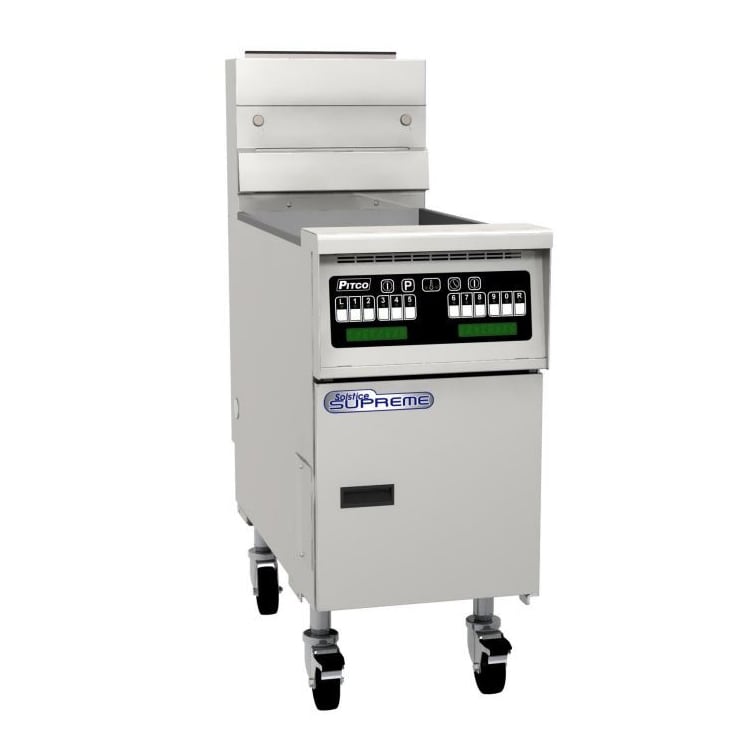

Pitco SSH75 Gas Fryer – (1) 75 lb Vats, Floor Model

Ideal for use in high-volume restaurants and cafeterias, the Pitco SSH75 Solstice Supreme gas fryer has an oil capacity of 75 pounds. It features a boil-out mode to facilitate thorough, simple cleaning and a melt cycle so operators can work with solid shortening. This unit is designed with a removable basket hanger and comes with a fryer cleaning brush.

The Pitco SSH75 features solid-state thermostat controls and a self-cleaning burner that completes its cleaning cycle in 30 seconds for high efficiency and reduced downtime. Its down drag protection monitors the fryer to ensure consistent, efficient ventilation and its high temperature limit switch avoids unit overheating. To reduce maintenance hassles, separate manual gas shut-offs enable it to be serviced from the front.

Product Details

• Part of the Solstice Supreme series
• 75-lb. oil capacity
• Self-cleaning Solstice burner technology offers efficient heat transfer and recovery
• 1¹/₄-in. NPT full port drain valve with interlock
• Down draft protection automatically monitors the fryer
• Integrated flue deflector
• Tank, front, back, and sides are constructed of stainless steel
• Includes drain clean-out rod and fryer cleaning brush for cleaning the elements
• Solid-state thermostat controls are simple to use
• Removable hanger holds baskets between uses
• Boil-out mode and melt cycle
• Separate manual gas shut-offs enable servicing from the front
• High temperature safety limit switch
• Matchless ignition
• Mounted on 10-in. legs that can be adjusted
• 105,000 BTU

Dimensions & Utilities

• Fry area: 14 in. L x 14 in. W
• Overall: 15⁵/₈ in. W x 34¹⁵/₃₂ in. D x 47¹/₈ in. H
• ³/₄-in. gas connection

Solstice Supreme High Efficiency Fryer, gas, 75lb oil capacity, full tank, solid state controls, boil out & melt cycle, drain valve interlock, matchless ignition, self-clean burner, downdraft protection, stainless steel tank, front & sides, total 105,000 BTU, ENERGY STAR®, CSA Flame, CSA Star, NSF, CE
