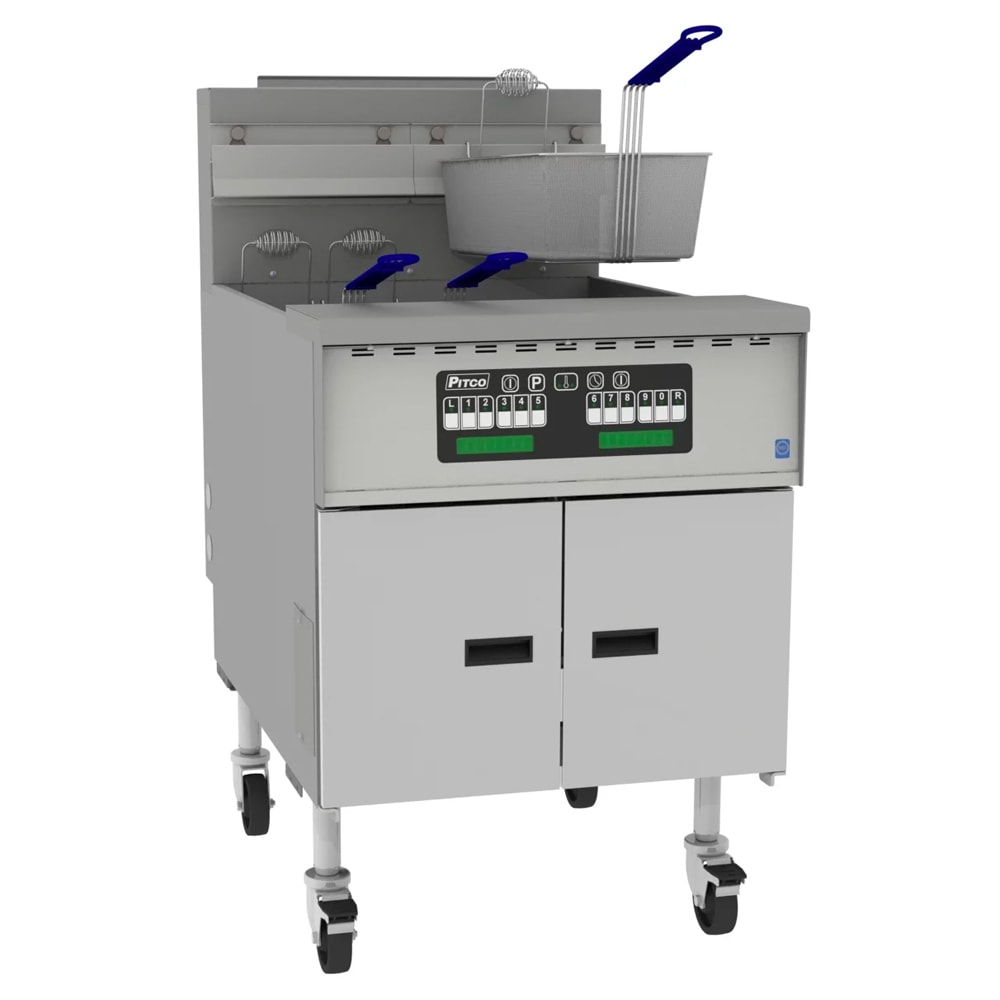

Pitco SGM24 Gas Fryer – (1) 150 lb Vat, Floor Mode

$23,004.85

  • MEGAFRY Fryer
  • High efficiency, 24″x24″ frying area
  • 140-150 lb. oil capacity, solid state controls
  • Auto melt cycle, boil out mode
  • Matchless ignition, marine front edge,
  • 9″ legs, stainless steel tank
  • Front, sides & splash-back
  • 165,000 BTU, NSF, CE, CSA Flame, CSA Star
SKU: PitcoSGM24 Category:

Description

Pitco SGM24

Built to withstand heavy use in high-capacity kitchens, the Pitco SGM24 commercial deep fryer’s tank, front, splash back, and sides are stainless steel—a corrosion-resistant metal that can be wiped clean. To further streamline cleaning, this fryer includes a drain rod and flue deflector, and its tank features a peened finish. During operation, the fryer’s melt cycle prevents the oil from scorching, while the tube screen catches loose particles to maintain oil quality. After the oil has been emptied, simply add water and restart the fryer to activate its boil-out mode, which loosens carbon remnants for less laborious scrubbing. Powered by natural gas, this unit has a total output of 165,000 BTUs—ideal for fried favorites like donuts, french fries, chicken, and fish.

The Pitco SGM24 gas fryer is a floor model measuring 255⁄8 inches wide by 38 inches deep by 481⁄4 inches high overall; its 11-inch legs are adjustable for placement on uneven flooring. Equipped with Solstice Burner technology, this fryer ensures efficient, uniform heat transfer, while operators can make temperature adjustments using its solid-state thermostatic control. For optimal performance and combustion efficiency, this fryer is equipped with high-temperature alloy stainless steel heat baffles.

Product Details

  • Oil capacity: 140-150 lbs.
  • Floor model
  • Stainless steel tank, front, sides, and backsplash
  • Solid state thermostatic control
  • Tank features a smooth, peened finish to streamline cleaning
  • Front-mounted 11⁄4-in. full-port drain
  • Melt cycle and DVI drain valve interlock prevents scorching
  • Boil-out mode aids scrubbing
  • High-temperature alloy stainless steel heat baffles
  • Matchless ignition
  • Solstice Burner Technology ensures uniform, efficient heat transfer
  • Built-in flue deflector
  • Included tube screen, drain line rod, and drain extension
  • 2 large MEGAFRY baskets with front/back handles
  • Removable basket hanger
  • Mounted on adjustable 11-in. legs
  • 165,000 total BTU

Dimensions & Utilities

  • Baskets: 231⁄4 in. L x 10 in. W x 53⁄4 in. D
  • Cook area: 24 in. W x 24 in. D x 4 in. H
  • Overall: 255⁄8 in. W x 38 in. D x 481⁄4 in. H
  • 1.7 A
  • 115 V/60 Hz/1 ph
  • 6-ft. cord with NEMA 5-15P plug
  • 3⁄4-in. NPT rear gas connection

Documents:

Additional information

Gas Type

Liquid Propane, Natural Gas
