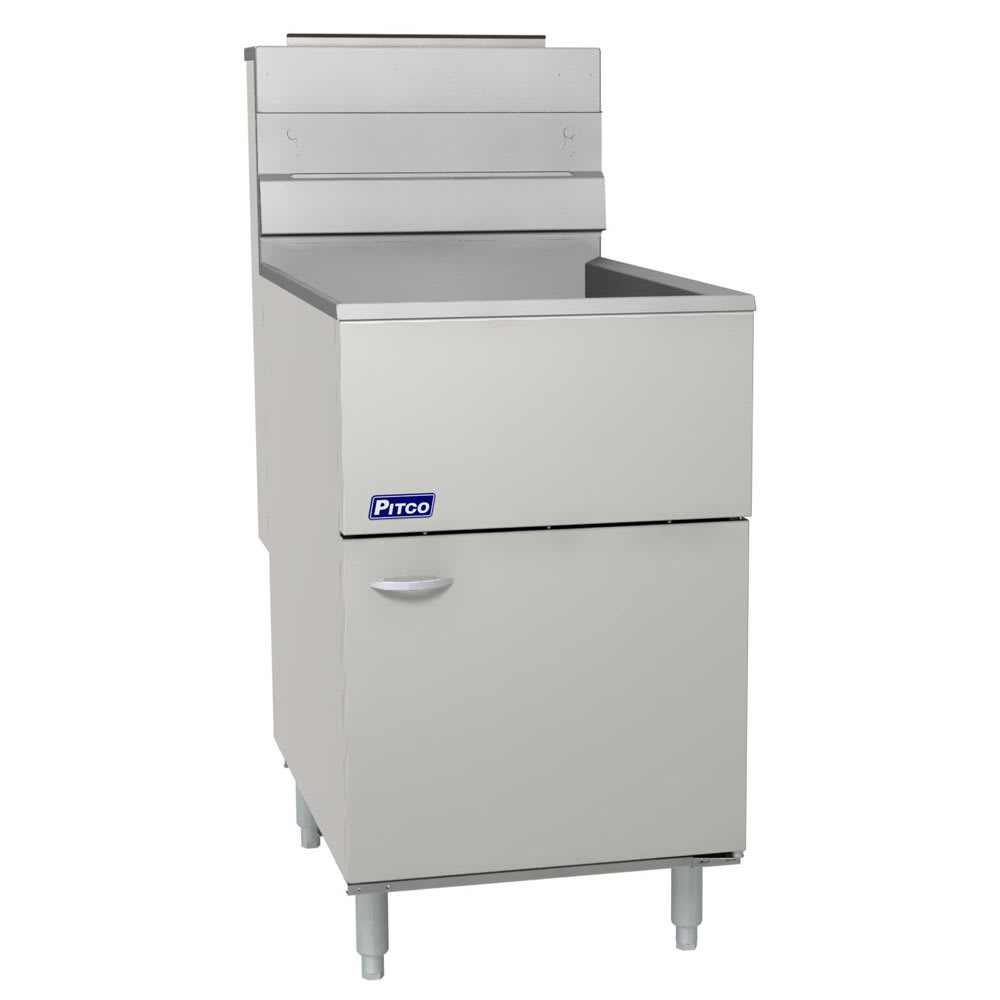

Pitco 65C+S Gas Fryer – (1) 80 lb Vat, Floor Model

With an oil capacity of 65 to 80 pounds and an 18-inch by 18-inch frying area, the Pitco 65C+S gas fryer is perfect for high-volume frying. A tube rack holds the fry baskets in place and enables crumbs and debris to sink to the cold zone, where they will not burn and affect the oil’s taste. The operator can select the temperature through millivolt controls to ensure frying is accurate and consistent.

To provide efficient heat to the oil, heat exchanger tubes are mounted in the fry tank with long-lasting, high-temperature heat baffles made of alloy stainless steel. A standing pilot light ensures the unit can provide a flame whenever you need it, but the gas control valve immediately halts gas from flowing if the pilot flame goes out. Due to the high-temperature limit, the gas will also be shut off automatically if the fryer exceeds temperatures of 450 degrees Fahrenheit. This fryer has an integrated flue deflector that directs heat to the hood vent to help keep the kitchen at a comfortable temperature.

The stainless steel tank on this Pitco 65C+S gas fryer is peened, providing a smooth finish that supports quick cleaning. Peening the tank also prevents gaps from forming when the surface is welded. The unit comes with twin fry baskets that can be placed on the hanger as oil drains from the cooked food. A 1¹/₄-inch front-located drain valve, accessible through the cabinet door, ensures draining is straightforward. The included drain extension helps operators guide the used oil into an appropriate container or filter system, and the clean-out rod removes sediment.

Product Details

• 65- to 80-lb. oil capacity
• Heat baffles and tubes provide efficient heat and combustion
• Integrated flue deflector directs heat to hood vent
• Millivolt controls maintain the selected temperature
• Standing pilot provides a flame when needed
• Gas flow shuts off if pilot goes out or temperature exceeds 450 degrees F
• Twin fry baskets
• Basket hanger is removable without tools
• Cold zone holds crumbs and debris out of the hottest cooking oil to prevent them from burning
• Stainless steel tank is peened to a smooth finish that aids in cleaning
• 1¹/₄-in. drain
• Drain extension moves draining oil into a container or filter
• Drain clean-out rod removes sediment from the line
• Stainless steel front and door are strong and rust resistant
• Galvanized steel sides and back withstand heavy use
• Adjustable 6-in. legs stabilize on uneven surfaces and provide cleaning access to floor beneath fryer
• Requires 30-in. front clearance and 6 in. of clearance from combustible material
• 150,000 BTU

Product Features

Dimensions & Utilities

• Frying area: 18 in. L x 18 in. W x 3¹/₄-5 in. D
• Overall: 20⁵/₃₂ in. W x 34⁷/₁₆ in. D x 47¹³/₃₂ in. H
• ³/₄-in. NPT rear gas connection

Fryer,floor model, 65-80 lb. fat capacity, millivolt control, stainless steel tank, door & front, 150,000 BTU, CSA, NSF
