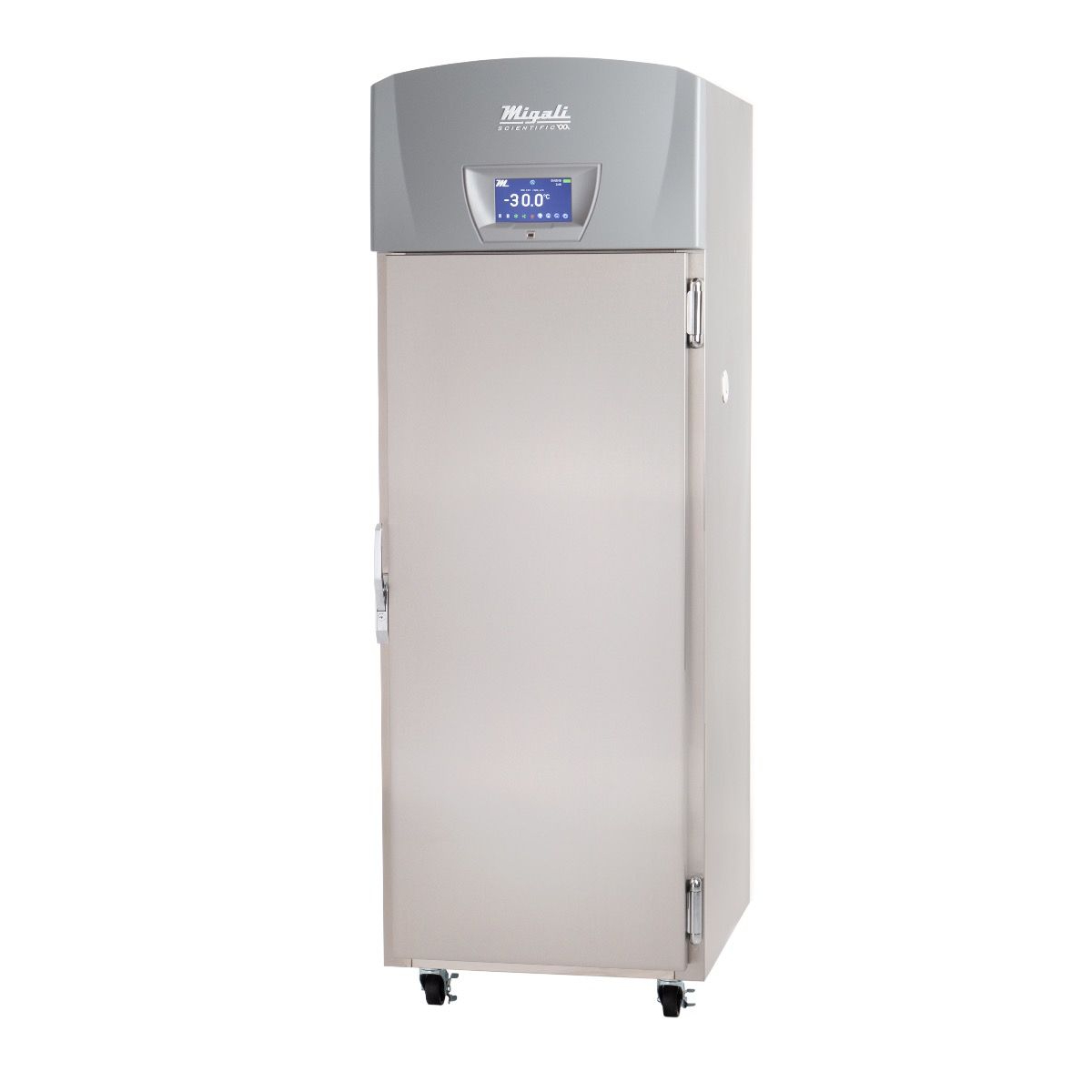

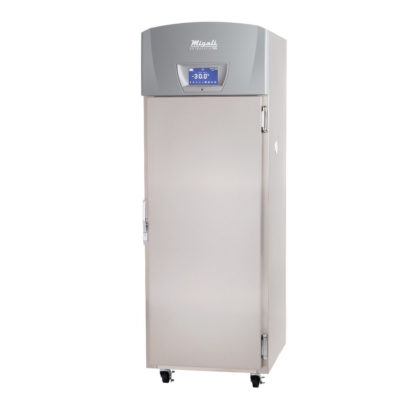

Migali Scientific EVOX-1F Single Solid Door Upright Medical Freezer – 20.2 Cu. Ft.

Description

The model EVOX-1F-BB is the Evolution Series® 20.2 cu/ft two solid door, auto-defrost upright freezer with an operating temperature of -25°C (will not exceed -15°C in defrost). Evolution Series® models are purpose-built to meet and exceed CDC, AAP, AABB, USP, NIH & WHO guidelines for storing pharmaceuticals, vaccines, blood, biologics, NICU, OR and medical products The EVOX-1F-BB incorporates an expansion valve refrigeration system for rapid temperature recovery, superior temperature stabilization and uniform chamber temperature.

The EVOX-1F-BB includes 20.2 cu/ft of internal space and comes standard with (6) adjustable shelves, door locks and optional stainless steel drawers. The cabinet is constructed of heavy duty 304 S/S to prevent bacterial growth. The doors include heady-duty, side mount hinges along with a heavy duty, chrome positive latch door handles. Evolution Series® models come with healthcare refrigeration’s most extensive warranty: 7 years compressor, 2 years parts, 1 year labor warranty.

Features

• Beautiful, modern and ergonomic design
• Purpose-built to exceed CDC, AAP, AABB, USP, NIH & WHO guidelines for storing pharmaceuticals, vaccines, blood, biologics, NICU, OR and medical products
• Expansion valve refrigeration system for rapid temperature recovery, superior temperature stabilization and uniform chamber temperature
• Auto defrost freezer system maintaining -25°C to -30°C (not exceeding -15°C in defrost cycle)
• Fan delay switch to conserve power, maintain inside chamber temperature during door openings & reduce inside chamber humidity
• 2 & 3/8” probe access port for 3rd party monitoring systems
• Product simulator and bracket • Magnetic door gasket for positive seal
• Chrome positive latch door handles with locks and keys
• Lifetime warranty heavy duty chrome side mounted hinges
• Powder coated adjustable wire shelving, 125 lbs capacity per shelf
• CFC free, eco-friendly refrigerant
• High R-value 2 3/4” inch of polyurethane insulation to reduce heat transfer and increase temperature stabilization
• Hospital grade plug with power cord warning label
• Hinged control panel for easy maintenance of condenser coil
• (2) locking casters and (2) non-locking casters
• ETL Certified (meets UL for electrical safety)
• Meets USP guidelines
• Listed under GSA Advantage for USA Government Purchases
• *Vaccine models include a freestanding thermometer with 3 year certificate of calibration

Migali® IntelVU® Digital Temperature Monitoring System

• Digital temperature monitoring 24 hours/day, 7 days/week
• Detailed temperature trend chart recording
• Navigate between menus with touch and drag
• Integrated 4.3” LED full color touch screen
• Digital microprocessor for precise temperature control
• Temperature audible/visual hi/low temperature alarms
• Power failure alarm
• Sensor failure alarm
• Alarm mute button
• 2 gigabits SD card file data storage
• 2.5 years of temperature data storage
• USB downloadable temperature history
• Adjustable temperature settings
• Interchangeable between Celsius and Fahrenheit scales
• Advanced password protection
• RS-292, RS-485 ports for wireless connections
• (2) probes and set points (air & product simulator)
• Built-in web server for remote access
• Digital signature to comply with FDA guidelines

Documents

Spec Sheet
