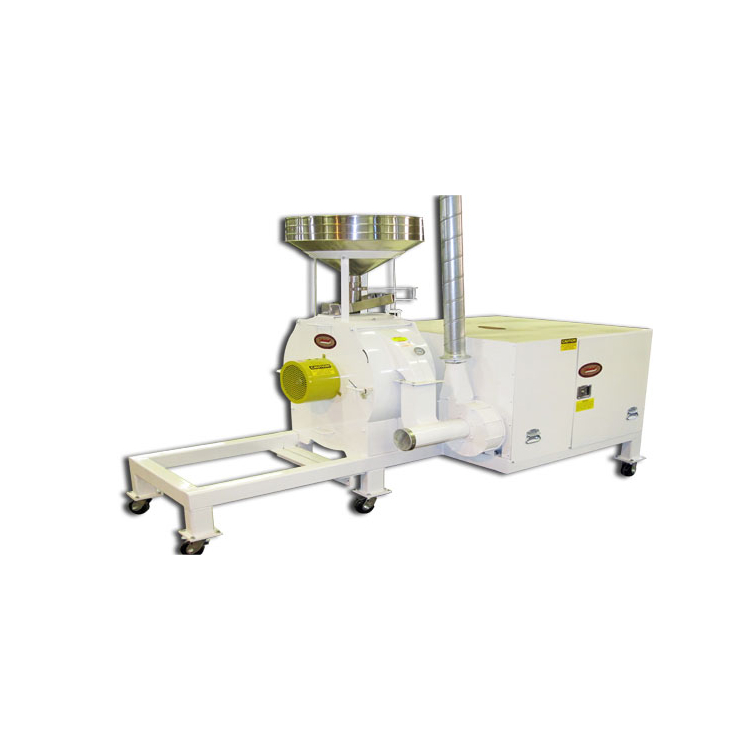

Meadows Industrial / Commercial Stone Burr Mill, 20-30 inch

Description

Meadows is the premier U.S. stone-burr grain mill for making genuine stone-ground flour. Their design and construction reflects over eighty years of refinement and proven reliability. Meadows stone burr grist mills are available in a wide range of sizes and capacities. Models are identified by the diameter of the grinding stones, in inches. The table below lists the available sizes and approximate capacity under normal grinding conditions with dry grains such as wheat, or corn. All mills feature stainless steel feed assemblies and poly or stainless hoppers. Refer to the table below to see the output rate of the Meadows stone burr mills on this page.

Meadows mills arrive assembled except to mount hopper, ready to wire into electric service and put to use. Operation is extremely simple, and flour output is of the highest quality. Nutrient content is fully preserved by the natural cool milling action of the large stone burrs. North Carolina Balfour granite stones have high quartz content for superior abrasive qualities and extremely long life—most users get lifetime service from the original stones. Eccentric sifters are available to sift and separate flour if desired.

Specifications

Accessories

*Note: Please advise your chosen accessory when placing your phone order of the Meadows Stone Burr Mill.

Meadows Eccentric Sifter

The Meadows eccentric flour sifter has been in production for years; it’s a proven design that runs well and does excellent work with low maintenance. The sifter is built to your specifications. Extended legs can be added (for an additional $615) to the sifter to provide an outlet discharge height of 42″. Whether you need a three product outlet sifter with seven screens, a four product outlet sifter with three screens, or any other combination, we can build a machine to exactly accomplish your purposes. The sifter comes standard with four outlets, which produces three products plus overs. The sifters are designed to hold up to nine screen sections. A standard (6) screen sifter is 53.25″ tall, for example. For each screen section, add or subtract 3.25″ for height. The screen sections are removable for easy cleaning or changing.

Screens are necessary for operation of the sifter. Due to the wide range of configuration options, the base sifter ($3,645 price is for the sifter and motor only) is priced without screens. The sifter can be set up with 3, 6 or 9 screen sections and screens cost $290 each. Successful configuration of the sifter requires individual consultation, so orders for this product are taken by phone. Please see the link at bottom of page for our hours of operation.

More details can be seen under the specs tab, above.

Pricing is FOB, please e-mail or call for a shipping quote. Crating fee for the eccentric sifter is $150 for an open crate, $300 for an enclosed crate. Sifters are shipped with an on/off switch and an 8′ AC cord with a standard 15 amp 120V AC plug.

Air Conveyor for Meadows 20″ Standard Mill

The air conveyor improves mill output production and can be set up to move product to the Eccentric sifter. The air conveyor consists of a transition from a side discharge on the 20″ mill, where product is pulled into a material handling fan turning at 3,600 rpm. Once the product is pulled in and through the material handling fan, the fan will then move the product through a 4″ pipe up and away from the mill to a stand mounted #2 size material collecting cyclone with a side mounted filter dust bags. The dimensional footprint of the 20″ mill when adding the air conveyor setup is: 87″W x 110″D x 124″H. The total weight of the 20″ mill and air conveyor setup is 1,800 pounds. The material handling fan transition is painted to match the mill. The 4″ pipe and material collecting cyclone are made of steel and have a shiny appearance. The air conveyor option must be added with the 20″ mill at the time of purchase.

Air Conveyor for Meadows 30″ Standard Mill

The air conveyor improves mill output production and can be set up to move product to the Eccentric sifter. The air conveyor consists of a transition from a side discharge on the 30″ mill, where product is pulled into a material handling fan turning at 3,600 rpm. Once the product is pulled in and through the material handling fan, the fan will then move the product through a 4″ pipe up and away from the mill to a stand mounted material #2 size collecting cyclone with a side mounted fiter dust bags. The dimensional footprint of the 30″ mill when adding the air conveyor setup is: 103″W x 149″D x 143″H. The total weight of the 30″ mill and air conveyor setup is: 3,250 pounds – 25HP Mill, 3,400 pounds – 30HP Mill and 3,450 pounds – 40HP Mill. The material handling fan transition is painted to match the mill. The 4″ pipe and material collecting cyclone are made of steel and have a shiny appearance. The air conveyor option must be added with the 30″ mill at the time of purchase.

Accessories Price List
