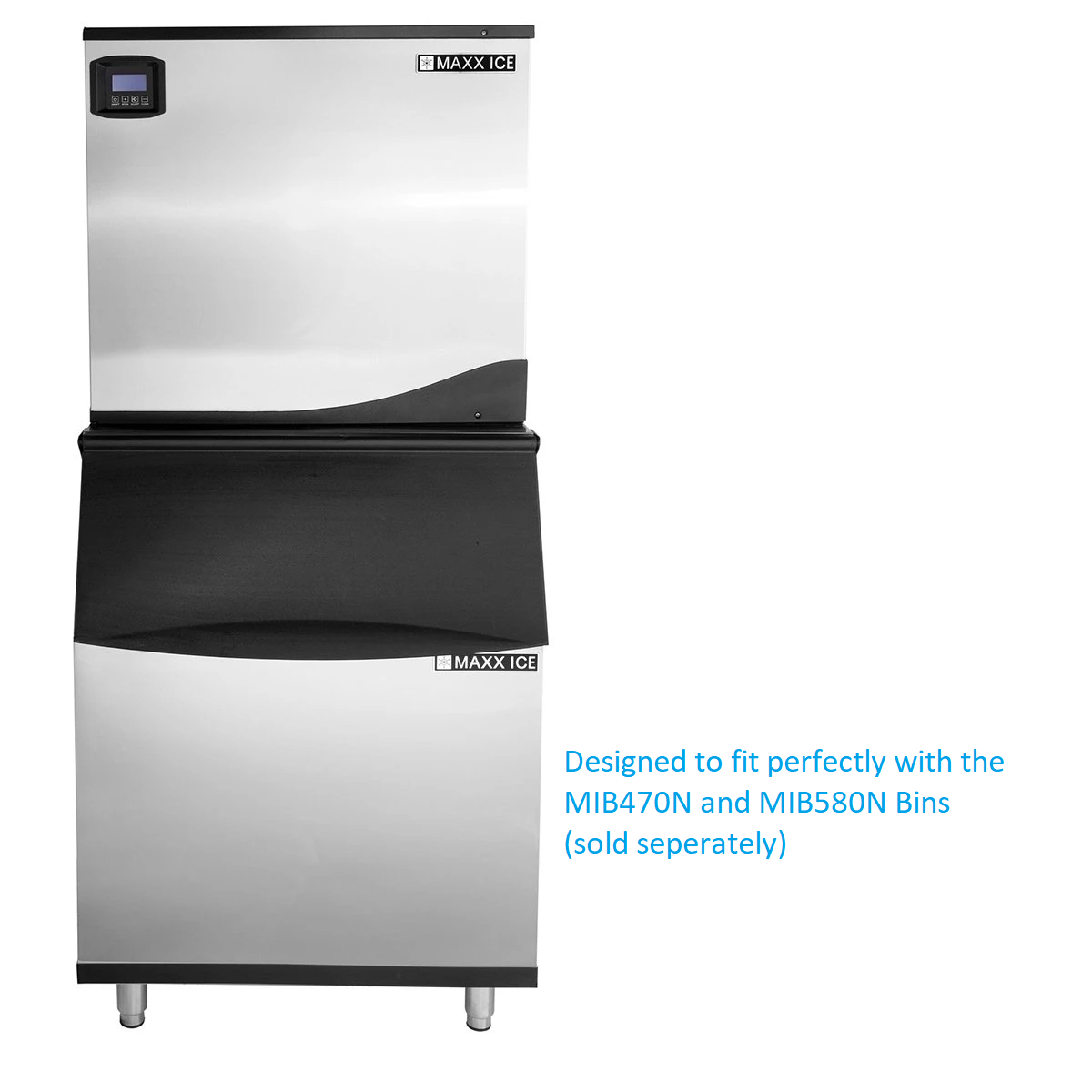

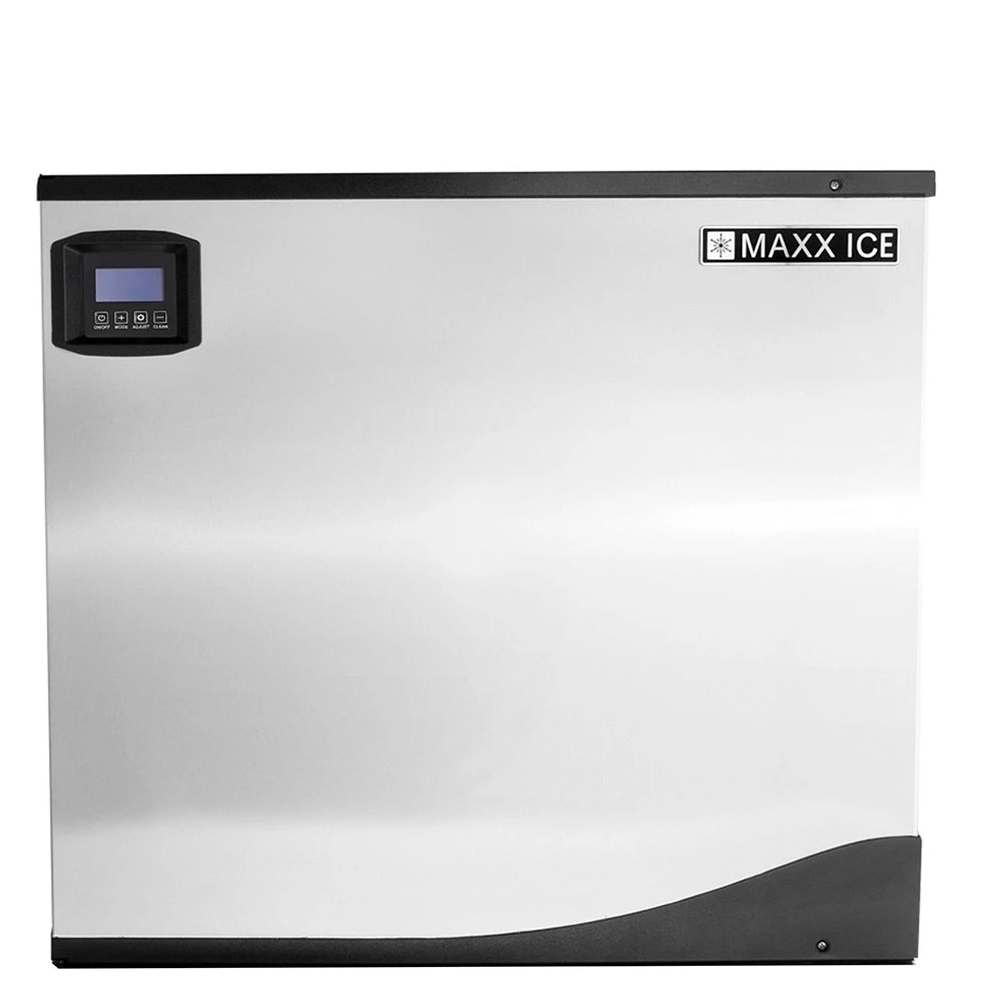

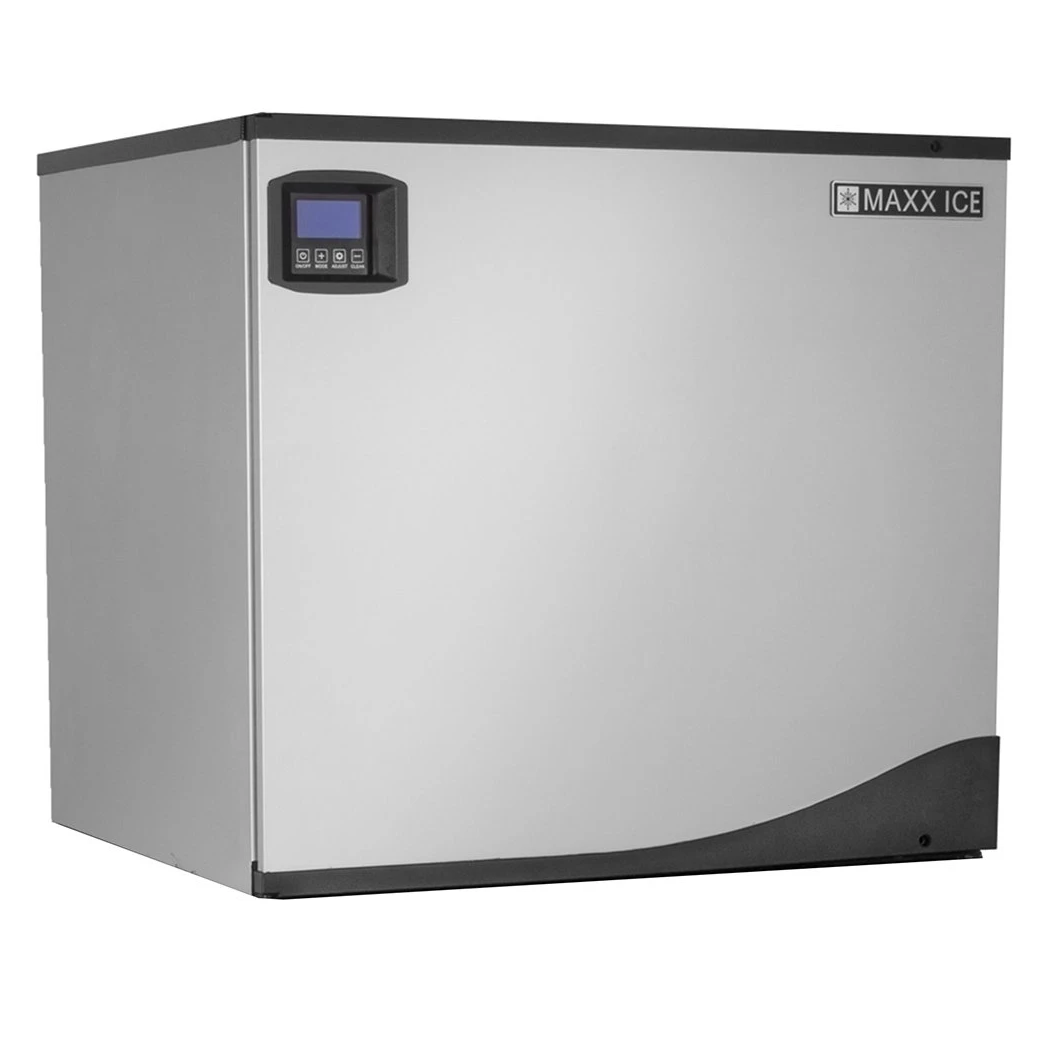

Maxx Ice MIM500N Intelligent Series, 30″ Modular Ice Machine (Full Dice Cube)

Description

Intelligent Series Ice Machines are designed to consume up to 40% less water than similar competitor units and produce ice up to 20% faster. Maxx Ice Intelligent Series self-contained, air-cooled ice machines are perfect for any free-standing or built-in application. Available in both full or half dice cubes, each unit features a sanitary self-contained storage bin. The durable stainless steel and black trim exterior is easy to clean and service. The digital controls and front-breathing design with vertical evaporator will deliver years of reliable ice production. Maxx Ice Intelligent Series modular, air-cooled ice machines are designed for high volume ice production application. The modular units are compatible with most ice storage bins and beverage dispensers. Available in both full or half dice cubes, the stainless steel and black trim exterior
features a hinged front panel for easy cleaning and servicing. The digital controls, vertical evaporator and proven ice making technology will deliver years of reliable ice production.

Maxx Ice Intelligent Series modular, air-cooled ice machines are designed for high volume ice production application. The modular units are compatible with most ice storage bins and beverage
dispensers. Available in both full or half dice cubes, the stainless steel and black trim exterior features a hinged front panel for easy cleaning and servicing. The digital controls, vertical evaporator and proven ice making technology will deliver years of reliable ice production.

FEATURES AND CONSTRUCTION
• Stainless steel, black trim exterior
• Air-cooled compressor
• Programmable, user-friendly digital controls
• Digital screen displays ice machine status
• Automatic cleaning cycle and bin overflow prevention
• Power for unit also illuminates the internal LED light in storage bin (MIB470N / MIB580N – sold separately)
• Hinged front panel for easy cleaning and service
• Units are stackable for increased ice production (optional adapter is required)

DAILY ICE PRODUCTION

Air Temp 70°F (21°C) / Water Temp 50°F (10°C)
MIM370N………………………….. 373 lbs (169 kg)
MIM370NH ……………………….. 361 lbs (164 kg)
MIM500N………………………….. 521 lbs (236 kg)
MIM500NH ……………………….. 513 lbs (233 kg)

Air Temp 90°F (32°C) / Water Temp 70°F (21°C)
MIM370N………………………….. 288 lbs (131 kg)
MIM370NH ……………………….. 285 lbs (129 kg)
MIM500N………………………….. 381 lbs (173 kg)
MIM500NH ……………………….. 385 lbs (175 kg)

Ice Type & Size (W x D x H) – Full dice cube

• .6875” (18mm) W x .875” (22mm) D x .875” (22mm) H

Model Dimensions (W x D x H)

• 30” (766mm) W x  24.6” (625mm) D x 21” (532mm) H

Model Weight

• Unit 130 lbs (59 kg) shipping 148 lbs (67 kg)
