Description

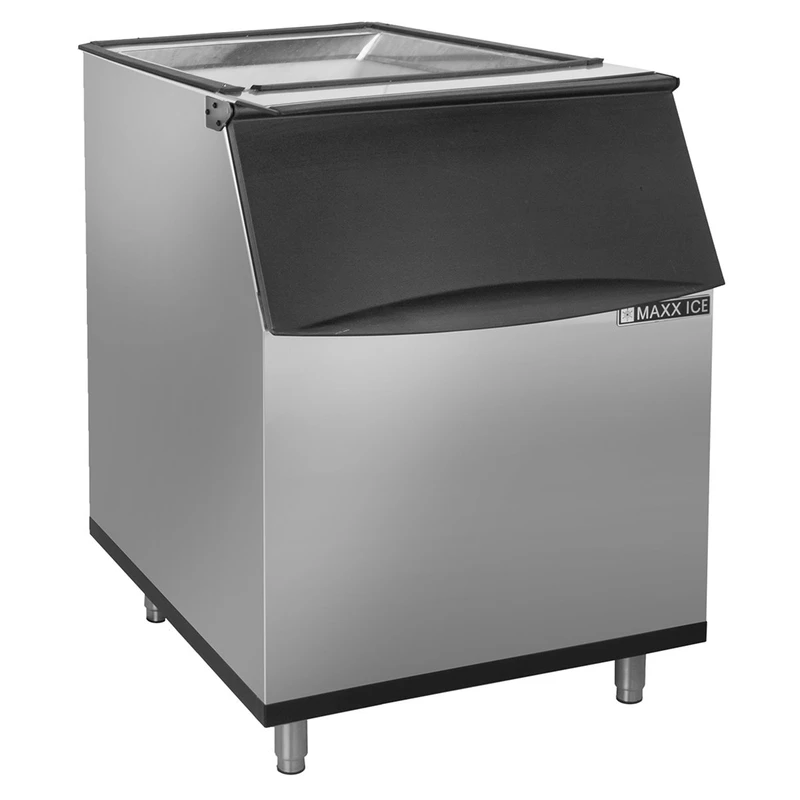

The Maxx Ice family of ice bins are available in multiple models
to fit your ice storage capacity needs, and are designed to fit
perfectly with Maxx Ice Intelligent Series Modular 22” and 30” ice
machines as well as similar sized commercial machines.
FEATURES AND CONSTRUCTION
- Stainless steel and black trim exterior (MIB310N / MIMB470N / MIB580N)
- All-stainless steel exterior (MIB400 / MIB580)
- LED illuminated interior when access lid is open (powered via connection to ice machine head – sold separately)
- Ice scoop and holder are above the ice line for easy access and improved sanitation
- 6” adjustable legs
- 3/4” drain hookup
MAXIMUM STORAGE CAPACITY
MIB310N ………………………….. 310 lbs (141 kg)
MIB470N ………………………….. 470 lbs (213 kg)
MIB580N ………………………….. 580 lbs (263 kg)
MIB400 ……………………………. 400 lbs (213 kg)
MIB580 ……………………………. 580 lbs (263 kg)
COMPATIBLE MAXX ICE MODELS*
MIB310N (22” Width):
MIM360N
MIM360NH
MIB470N / MIB580N / MI400 / MIB580 (30” Width):
MIM370N
MIM370NH
MIM500N
MIM500NH
MIM650N
MIM650NH
MIM1000N
MIM100NH
*MIB Series bins will accommodate any similarly sized ice
machine from any manufacturer
Model Dimensions (W x D x H)
- 30” (763mm) W x 34” (864mm) D x 41.4” (1052mm) H
Model Weight
- Shipping 117 lbs (53 kg)
