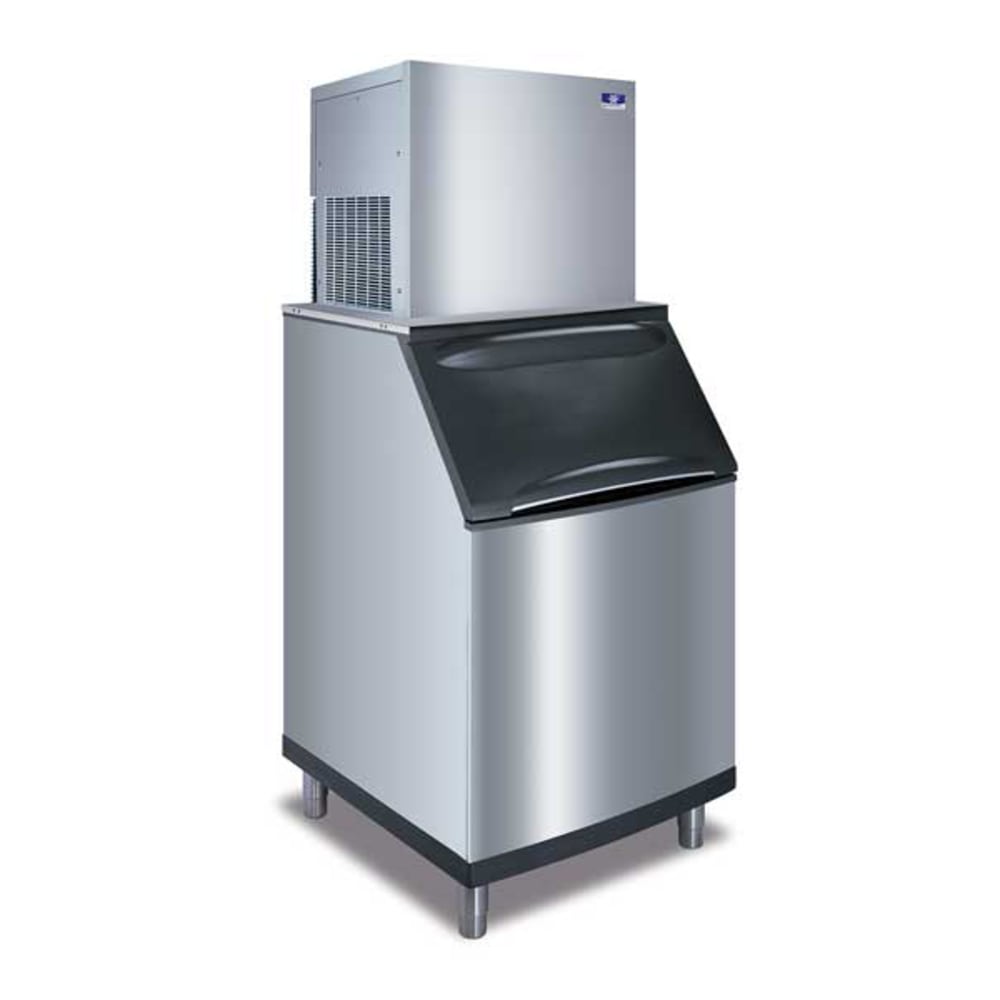

Manitowoc Ice RFF1300A/D570 1264 lb Flake Ice Maker w/ Bin – 532 lb Storage, Air Cooled, 208-230v/1ph

If ambient air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit, the Manitowoc Ice RFF-1300A/D-570 ice maker with bin can produce 1,264 pounds of ice daily. It makes flake ice, which consists of small, hard bits that are ideal for healthcare and food presentations. This type of ice works well with presentations because they surround product, chilling it properly without bruising or damaging. Ice forms on the evaporator when refrigerant removes heat from this piece, and the refrigerant is cooled by cool air that a fan blows over condenser coils.

In the Manitowoc Ice RFF-1300A/D-570 ice maker with bin, as much as 532 pounds can be stored. The bin holds stored ice for extended periods of time since the door is insulated to prevent air from escaping, and this door has left, right, and center grips so it can be opened from multiple angles. It stays open when users are scooping with its self-latching design.

Ice Maker Details

• 1,264-lb. maximum daily ice production
• Produces flake ice that is ideal for food presentations and healthcare applications
• Air-cooled condenser has a fan that blows cool air over the coils, cooling refrigerant to remove heat from the evaporator so water freezes
• R404A refrigerant
• Service updates ease installation and cleaning
• Cabinet is made of strong, corrosion-resistant stainless steel
• High-load bearing is reliable without maintenance
• 14,000 average BTU
• Required ambient air temperature: 50-110 degrees F
• Required incoming water temperature: 37-90 degrees F
• Required incoming water pressure: 14-80 PSI

Bin Details

• 532-lb. application capacity
• 17.9-cu.-ft. AHRI-certified capacity
• Foam-insulated door retains cold air
• Center, left, and right side door grips enable opening from different directions
• Door self-latches to stay open for scooping
• 5.3-lb. ice scoop capacity
• Integrated thumb and knuckle guard keeps hands out of ice to prevent contamination
• Blue polyurethane bin liner
• DuraTech exterior hides fingerprints and resists corrosion

Dimensions and Utilities

• Ice Maker
  • 30 in. W x 23.62 in. D x 27.4 in. H
  • 15 A, 4.24 kW, 1.5 HP
  • 208-230 V/60 Hz/1 ph
• Bin
  • 30 in. W x 34 in. D x 50 in. H

From The Manufacturer

Ice Maker with Ice Bin, flake-style, air-cooled, self-contained condenser, 30″W x 23-5/8″D x 27-13/32″H, production capacity up to 1264 lb/24 hours at 70°/50° (951 lb AHRI certified at 90°/70°), stainless steel finish, ETL, cETLus; Ice Bin: 30″W x 34″D x 50″H, with side-hinged front-opening door, side grips, AHRI certified 532 lb ice storage capacity (17.9 cu. ft.), for top-mounted ice maker, Duratech exterior, NSF

*Image may not depict product color, inclusions or accessories.
