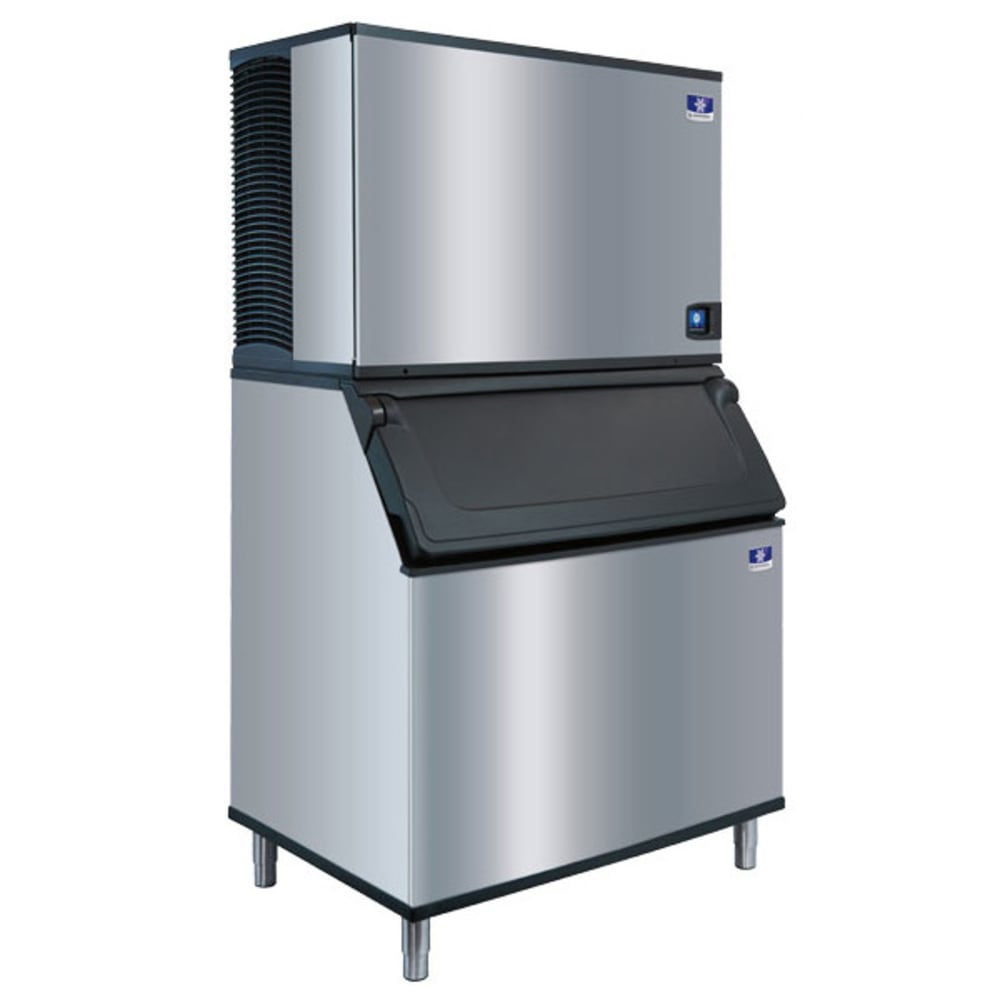

Manitowoc Ice IYT1500N/JCT1500/D970 Description
The Manitowoc IYT1500N/JCT1500/D970 remote-condenser ice maker with bin can produce 1,770 pounds of ice in a day. Production can be set to match the amount of ice in the bin or the time of day. Using the head is facilitated by its icon-based easyTouch control panel, which runs 24-hour diagnostics to find maintenance issues and alert the operator. Some of the internal components are removable for cleaning, and some have antimicrobial protection built in to slow bacteria growth between each cleaning.
This unit is designed to operate with a remote condenser, which can be installed a distance from the ice machine, usually on the roof or in another room, to move noise and heat away from the ice maker. This unit uses air to cool the refrigerant that chills the evaporator plate, over which water is run that freezes progressively to form ice cubes.
Ice is stored in the bin, which can hold 882 pounds. An included 5.3-pound-capacity ice scoop with knuckle and thumb guards protects ice from contaminants. To open the bin from a variety of angles, side grips are molded into the door. A cammed latch prevents the door from closing to aid staff in serving ice, and it is angled 53 degrees so that ice can be scooped out comfortably. The Manitowoc IYT1500N/JCT1500/D970 remote-condenser ice maker with bin has a DuraTech finish over its stainless steel exterior to protect it from smudges and scuffs.
Ice Maker Details
- 1,770-lb. ice production capacity
- 1,460-lb. AHRI-certified ice production capacity
- Icon-based control panel is user friendly
- Time of day or bin volume can determine the production rate
- Removable water trough, distribution tube, curtain, water probe, and water pump
- Bacteria growth is prevented by an AlphaSan antimicrobial agent
- 24-hr. preventive diagnostics alert the operator of issues that arise
- Acoustical probe checks the thickness of ice with sound waves before it drops off the evaporator
- Fingerprints and stains are hidden by the DuraTech coating
- Half-dice ice size: 0.375 in. x 1.125 in. x 0.875 in.
- Uses R410 refrigerant
- 23,000 average BTU; 27,000 maximum BTU
- Required ambient temperature: 40-110 degrees F
- Required incoming water temperature: 40-90 degrees F
- Required incoming water pressure: 20-80 PSI
Remote Condenser Details
- Pre-charged with refrigerant and quick-connect fittings for installation
- Noise and heat are given off apart from the ice machine
- Operation range: -20 to 120 degrees F
- Maximum line length: 100 ft.
- Maximum vertical rise: 35 ft. above the ice machine
- Maximum vertical drop: 15 ft. below the ice machine
Bin Details
- 882-lb. storage capacity
- 29.7-cu.-ft. AHRI-certified storage capacity
- Ice scoop has a knuckle and thumb guard to prevent contamination
- 5.3-lb. scoop capacity
- Grips in the side support opening the door
- Door is insulated with foam to retain cold air
- Cammed door latch keeps the door open for scooping
- Door is angled 53 degrees to aid in scooping
- DuraTech clear coat over stainless steel resists smudges
- Blue polyurethane bin liner resists scuffs and dents
Dimensions and Utilities
- Ice Maker
- 48 in. W x 24 in. D x 29.5 in. H
- 14 A, 3.9 kW
- 208-230 V/60 Hz/1 ph
- Condenser
- 29.5 in. W x 29.16 in. D x 38 in. H
- 1 A
- 208-230 V/60 Hz/1 ph
- Bin
- 48 in. W x 34 in. D x 50 in. H
From The Manufacturer
Indigo NXT Series Ice Maker with Ice Bin, cube-style, air-cooled, designed for remote refrigeration, 48″W x 24″D x 29-1/2″H, production capacity up to 1700 lb/24 hours at 70°/50° (1450 lb AHRI certified at 90°/70°), DuraTech exterior, half dice size cubes, R410 refrigerant, NSF, cULus, CE, ENERGY STAR; Ice Bin: 48″W x 34″D, 50″H, with side-hinged front-opening door, side grips, AHRI certified 882 lb ice storage capacity (29.7 cu. ft.), for top-mounted ice maker, Duratech exterior, NSF; Remote Condensing Unit: Vertical Discharge, air-cooled, for IT-1500N & IT-1900N, AHRI, UL, CE
*Image may not depict product color, inclusions or accessories.
