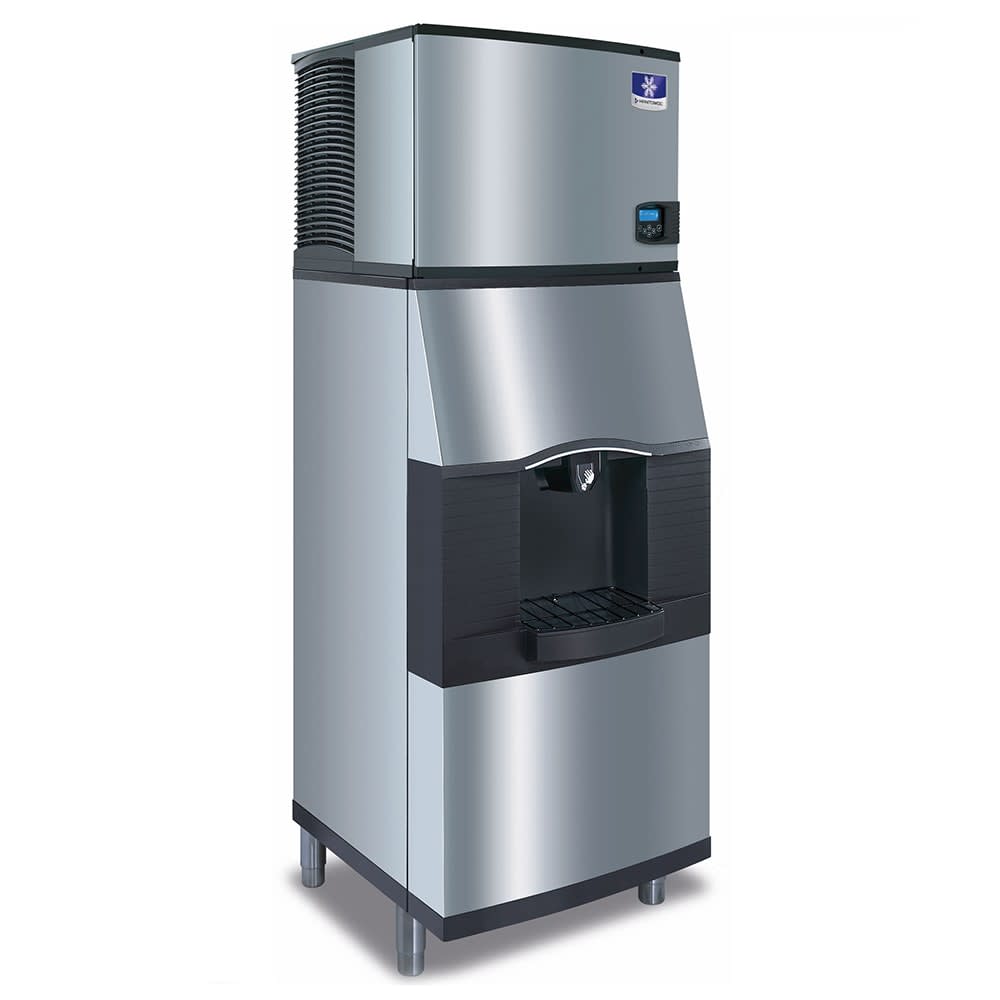

Manitowoc Ice IYT1200W/SFA292 1138 lb Half Cube Ice Maker w/ Ice & Water Dispenser – 180 lb Storage, Bucket Fill, 208/230v/1ph

The Manitowoc IYT1200W-261/SFA292 Indigo NXT ice machine and dispenser is constructed of stainless steel to withstand regular use, with a coating that reduces scratches and stains. Its head can produce 1,138 pounds of half-dice ice every 24 hours. This ice cools liquids quickly but is not ideal for cocktails that are meant to be sipped slowly because it will water them down. The thickness of the cubes is monitored by an acoustical ice probe. Certain components have an antimicrobial agent built in to slow bacteria growth between cleanings.

The dispenser stores 180 pounds of ice. Spills are reduced by a rocking chute dispense mechanism, and overflow is caught in a drain pan to reduce messes. A built-in valve also dispenses water so guests at hotels and resorts have ample access to a beverage. This Manitowoc IYT1200W-261/SFA292 ice machine and dispenser has on/off activation and a built-in agitator that prevents ice from bridging.

Ice Maker Details

• 1,138-lb. ice production capacity
• 965-lb. AHRI-certified ice production capacity
• Icon-based control panel is straightforward
• Ice production can be set up for a specific time of day or based on the bin volume
• Water trough, distribution tube, curtain, water probe, and water pump are removable for cleaning
• Specific components have AlphaSan antimicrobial agent built in to deter bacteria growth between cleanings
• 24-hr. preventive diagnostics
• Acoustical probe uses sound waves to check ice thickness
• DuraTech clear coat reduces stains and visible fingerprints
• Half-dice ice size: 0.375 in. x 1.125 x 0.875
• Uses R410A refrigerant
• 16,200 average BTU; 19,100 maximum BTU
• Required ambient temperature: 40-110 degrees F
• Required incoming water temperature: 40-90 degrees F
• Required incoming water pressure: 20-80 PSI

Dispenser Details

• Dispenses water through a built-in valve
• 180-lb. storage capacity
• Accommodates large containers and buckets
• Rocking chute dispense mechanism reduces spillage
• Quick on/off activation
• Built-in agitator breaks up ice clumps
• Drain pan collects overflow to prevent messes from spilling over
• Reduces stains and fingerprints with a DuraTech finish

Dimensions and Utilities

• Ice Maker
  • 30 in. W x 24.5 in. D x 29.5 in. H
  • 13.4 A, 4 kW
  • 208-230 V/60 Hz/1 ph
• Dispenser
  • 30 in. W x 32 in. D x 60.5 in. H
  • 1.6 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

From The Manufacturer

IYT-1200W: Indigo NXT Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30″W x 24-1/2″D x 29-1/2″H, production capacity up to 1138 lb/24 hours at 70°/50° (965 lb AHRI certified at 90°/70°), DuraTech exterior, half-dice size cubes, NSF, cULus, CE

SFA-292: Vending Ice Dispenser with Built-In Water Valve, touchless lever, floor model, 30″W x 32″D x 82″H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, fills containers up to 11″ high, stainless steel exterior with vinyl trim, accepts 22″ or 30″ dice or half-dice machines, cULus, CE, ADA compliant
